4GR-FSE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: INSTALLATION

INSTALLATION

1. INSTALL MASS AIR FLOW METER
(a) Install a new O-ring to the MAF meter.

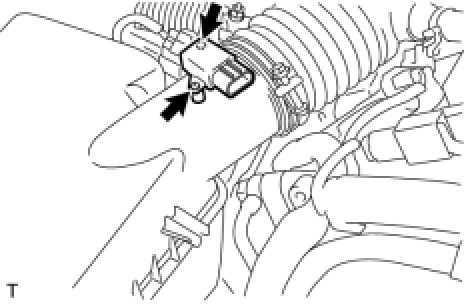

(b) Install the MAF meter with the 2 screws.

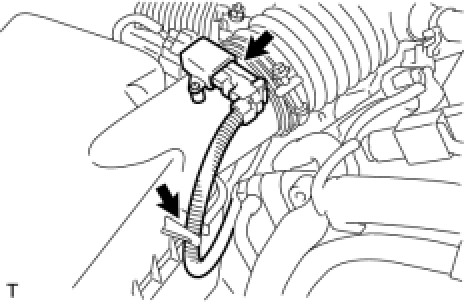

(c) Connect the MAF meter connector.
2. INSTALL ENGINE ROOM SIDE COVER RH Installation
3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
