Smart Access System With Push-Button Start

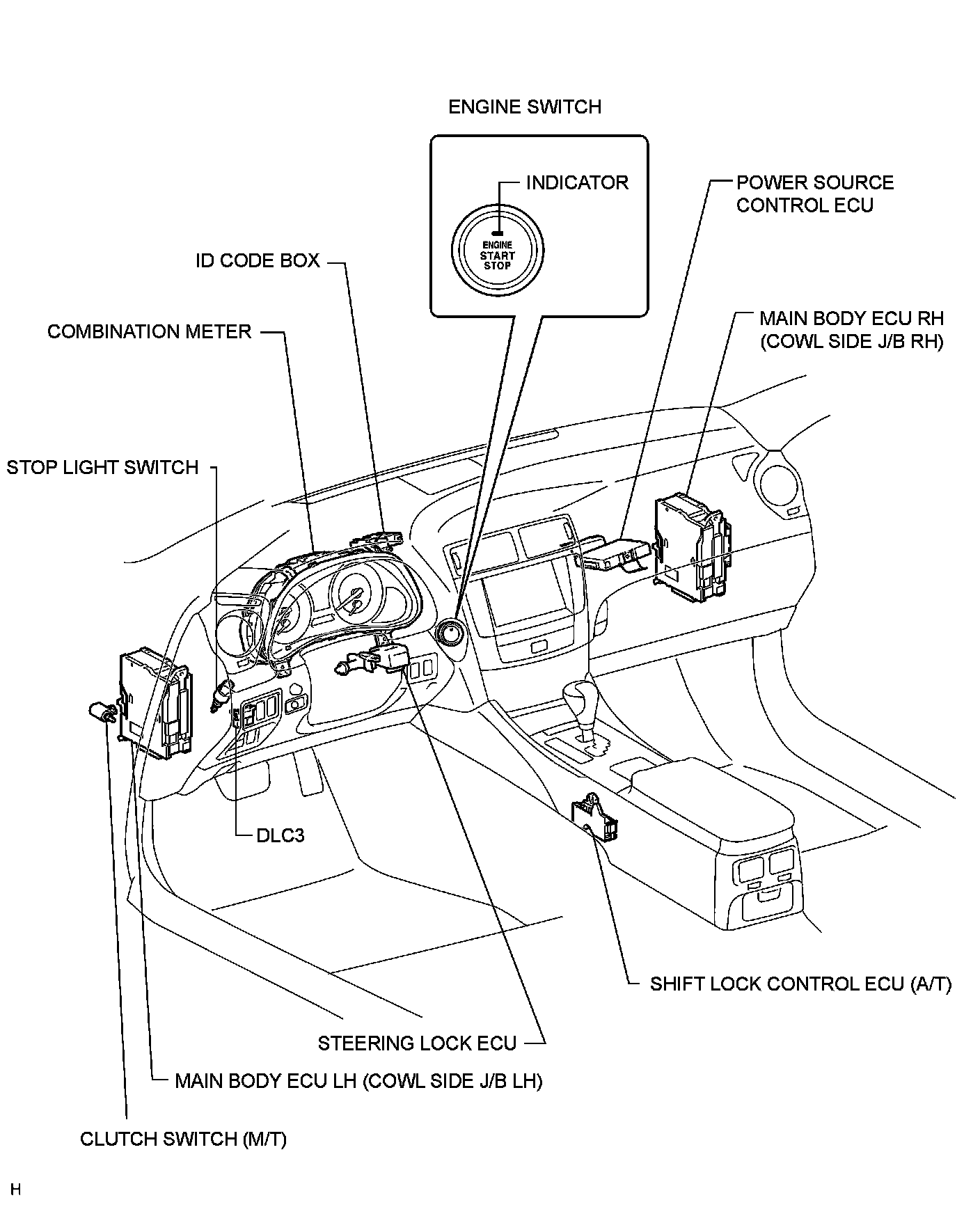

2GR-FSE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
