Secondary Injector Control Module
>>
Locations
>>
Engine Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Compartment

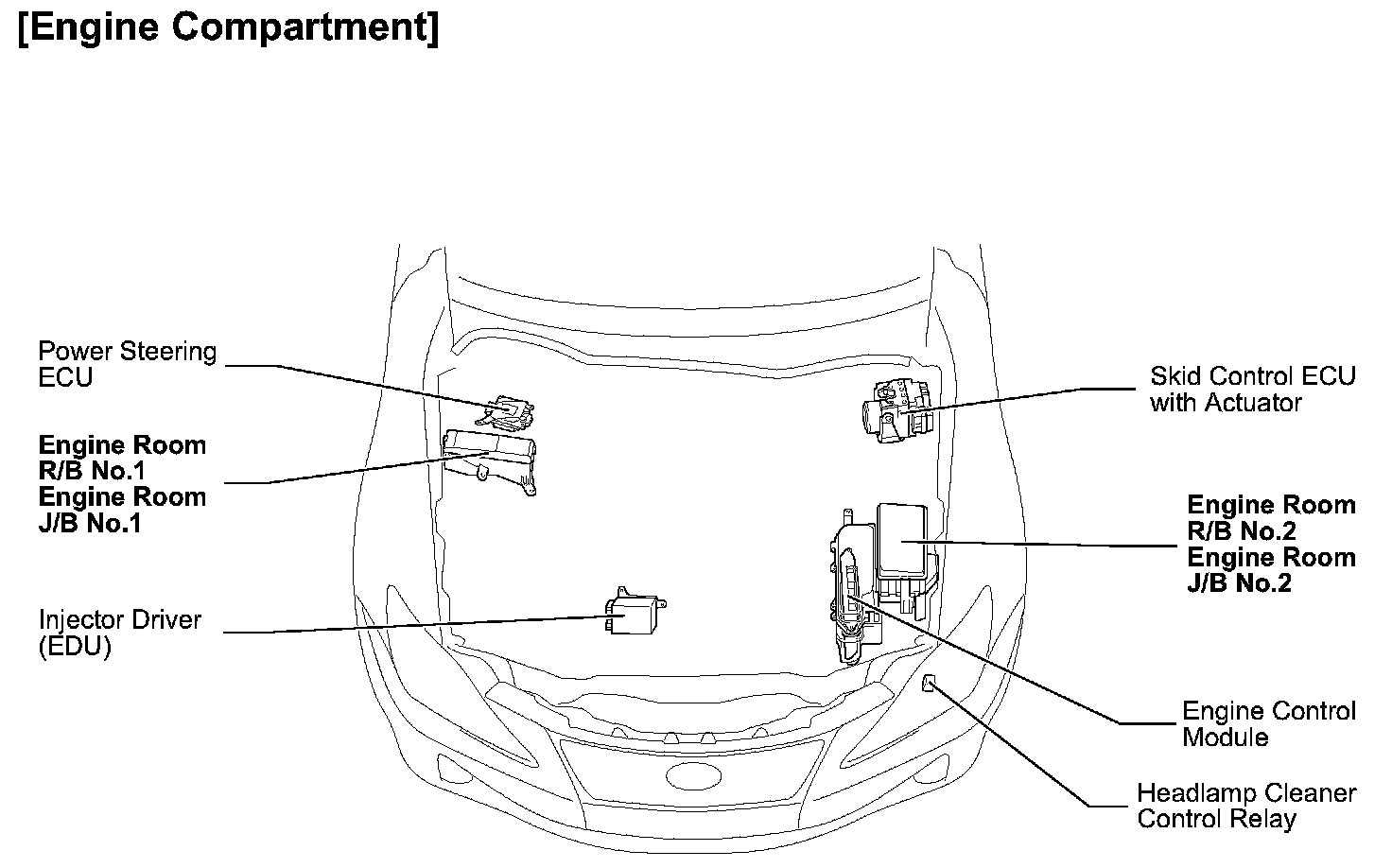

Engine Compartment:

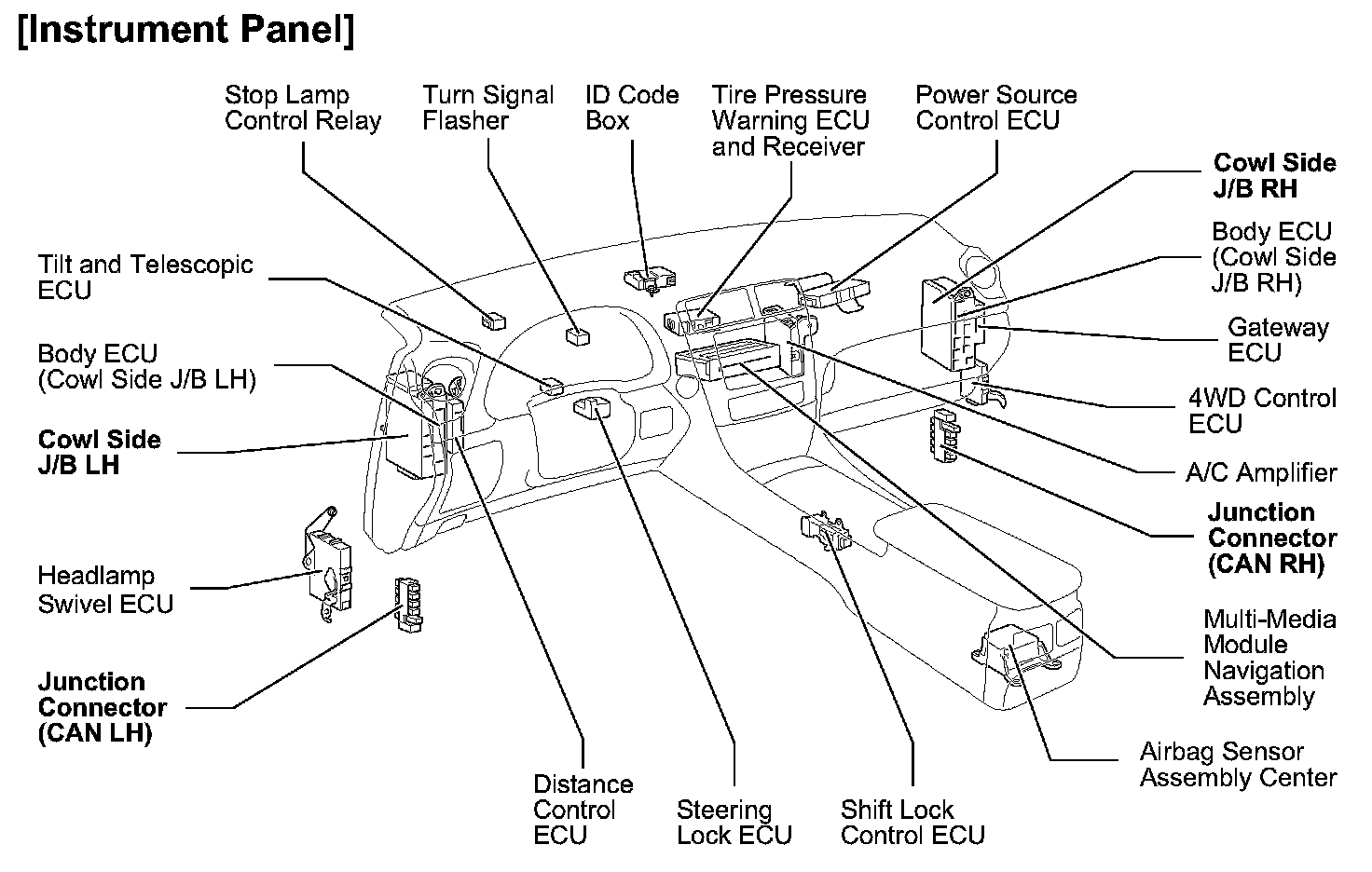

Instrument Panel:

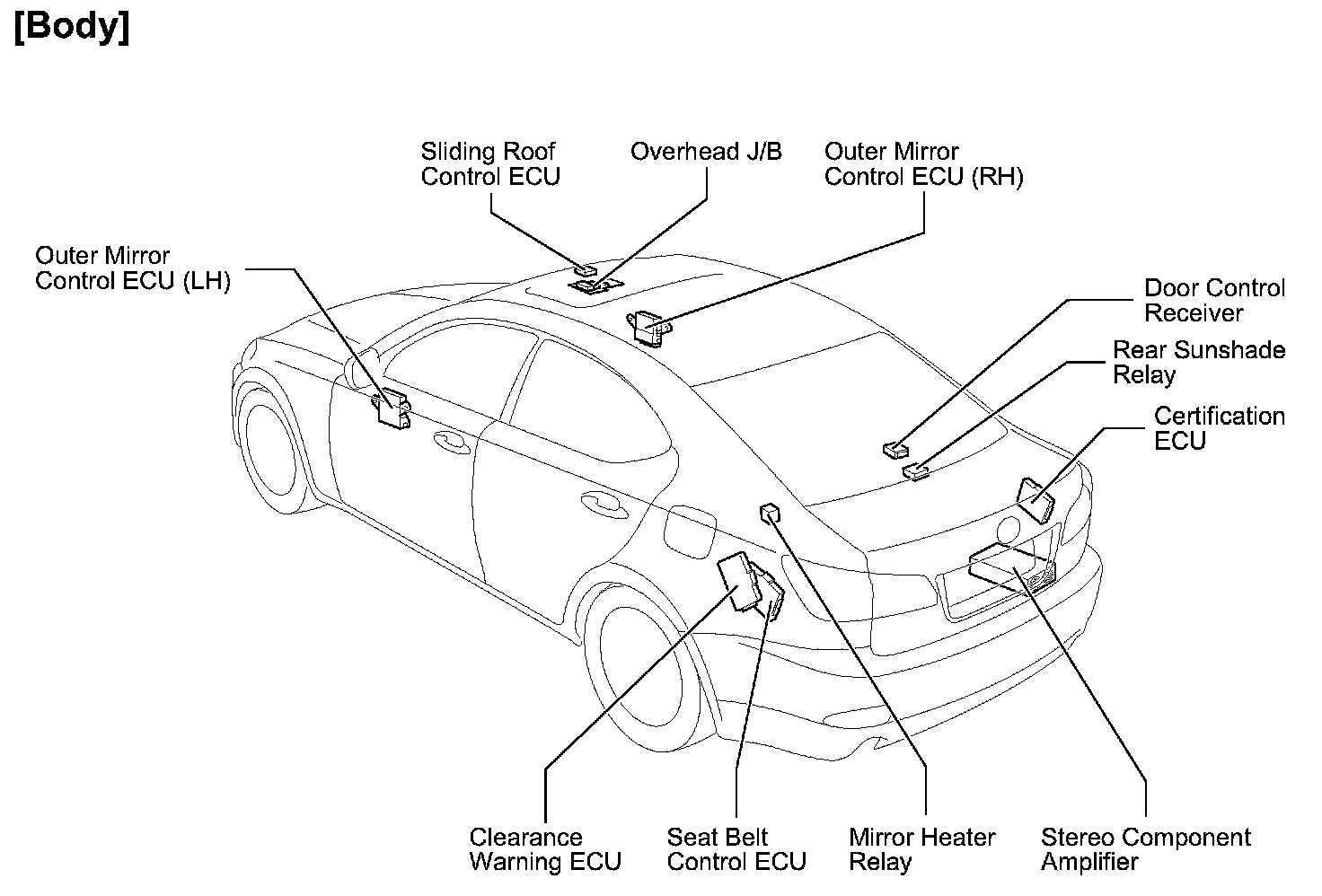

Body:
