Removal

2GR-FSE FUEL: INJECTOR DRIVER: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal
2. REMOVE NO. 1 INLET AIR CLEANER Removal
3. REMOVE NO. 1 ENGINE COVER Removal
4. REMOVE INJECTOR DRIVER

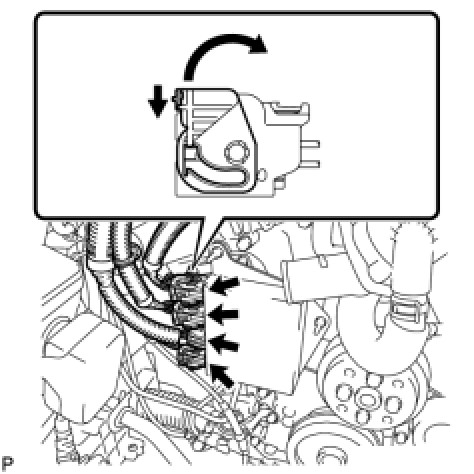

(a) Move the lock lever in the direction indicated by the arrow to release the connector lock. Disconnect the 3 connectors with wire harness locks and the connector from the injector driver.

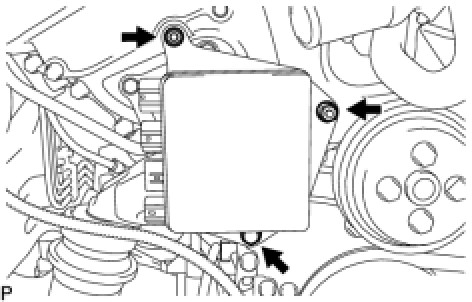

(b) Remove the bolt, 2 nuts and injector driver.
NOTE:
Be careful not to drop or strike the injector driver.
