Service Data








SERVICE SPECIFICATIONS: 2GR-FSE ENGINE MECHANICAL: SERVICE DATA

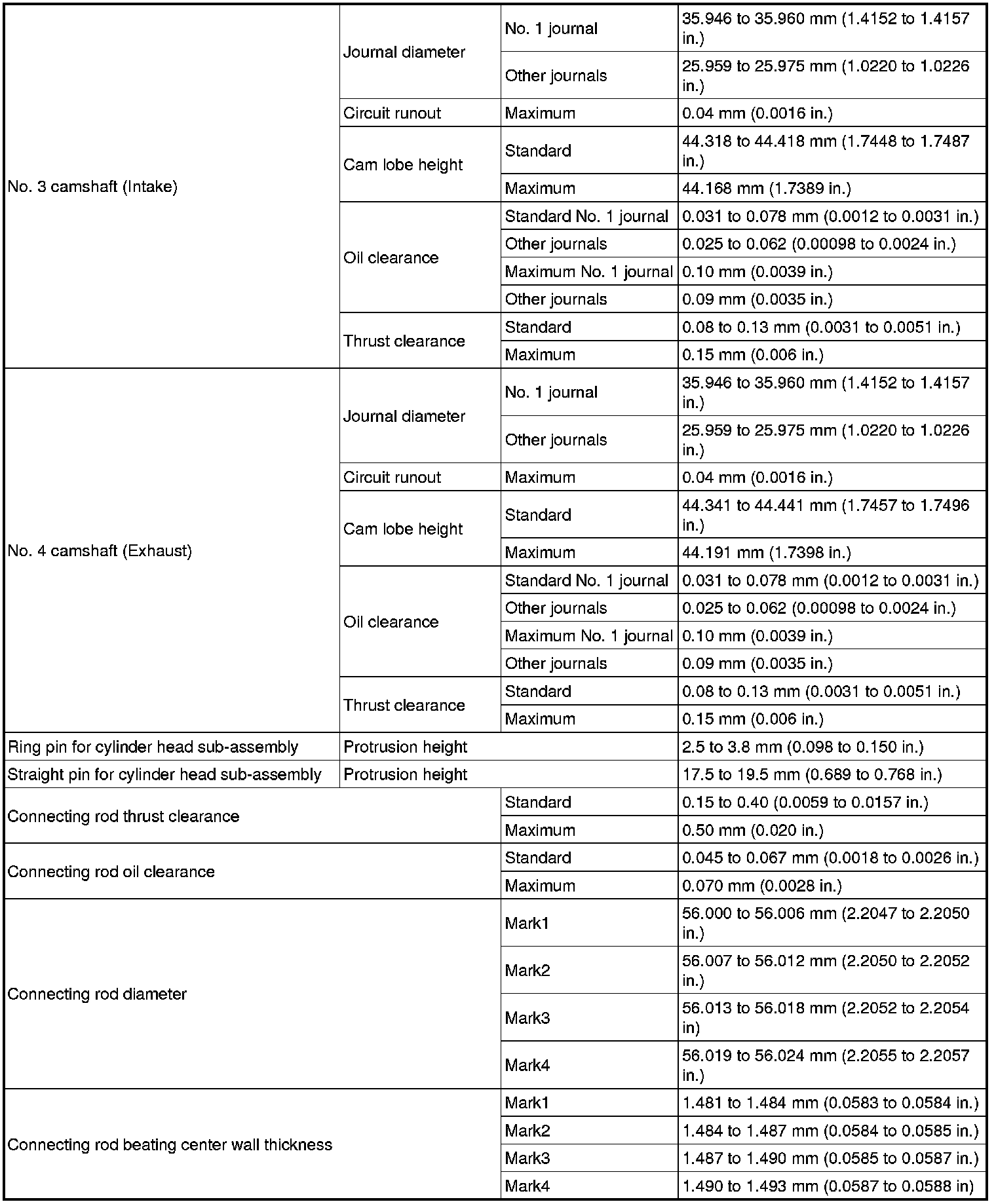

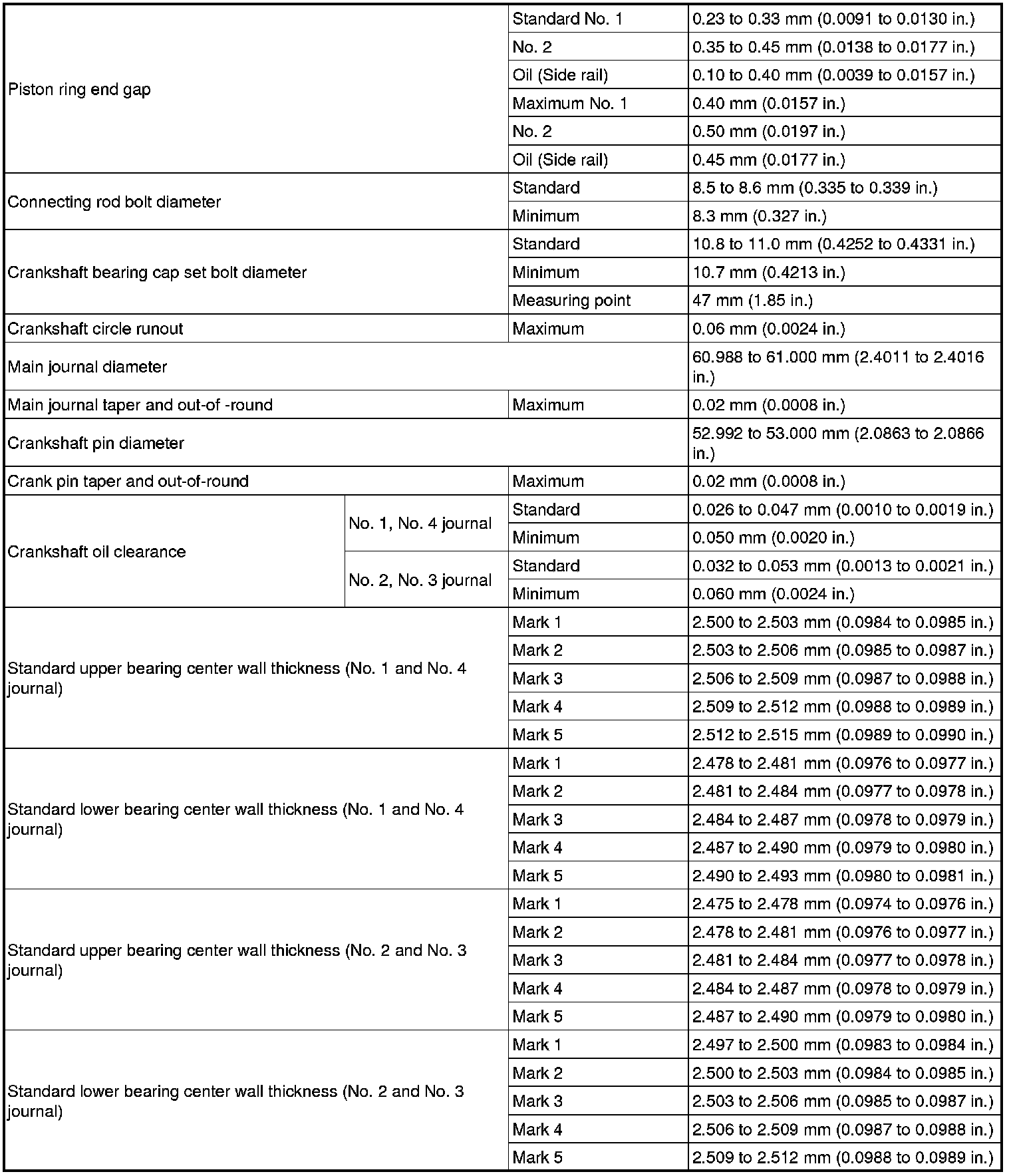

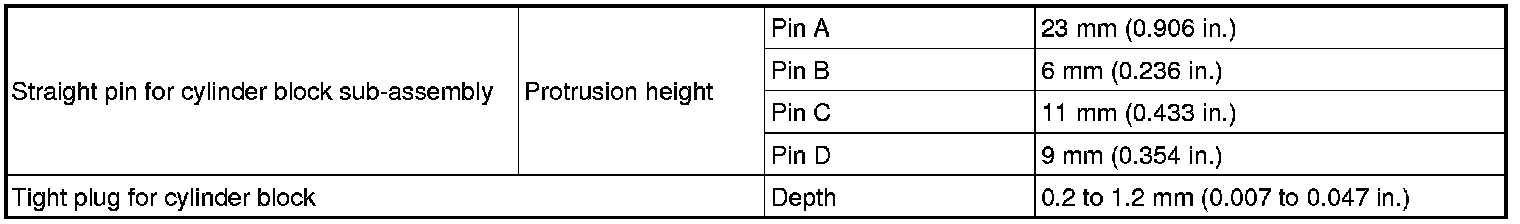

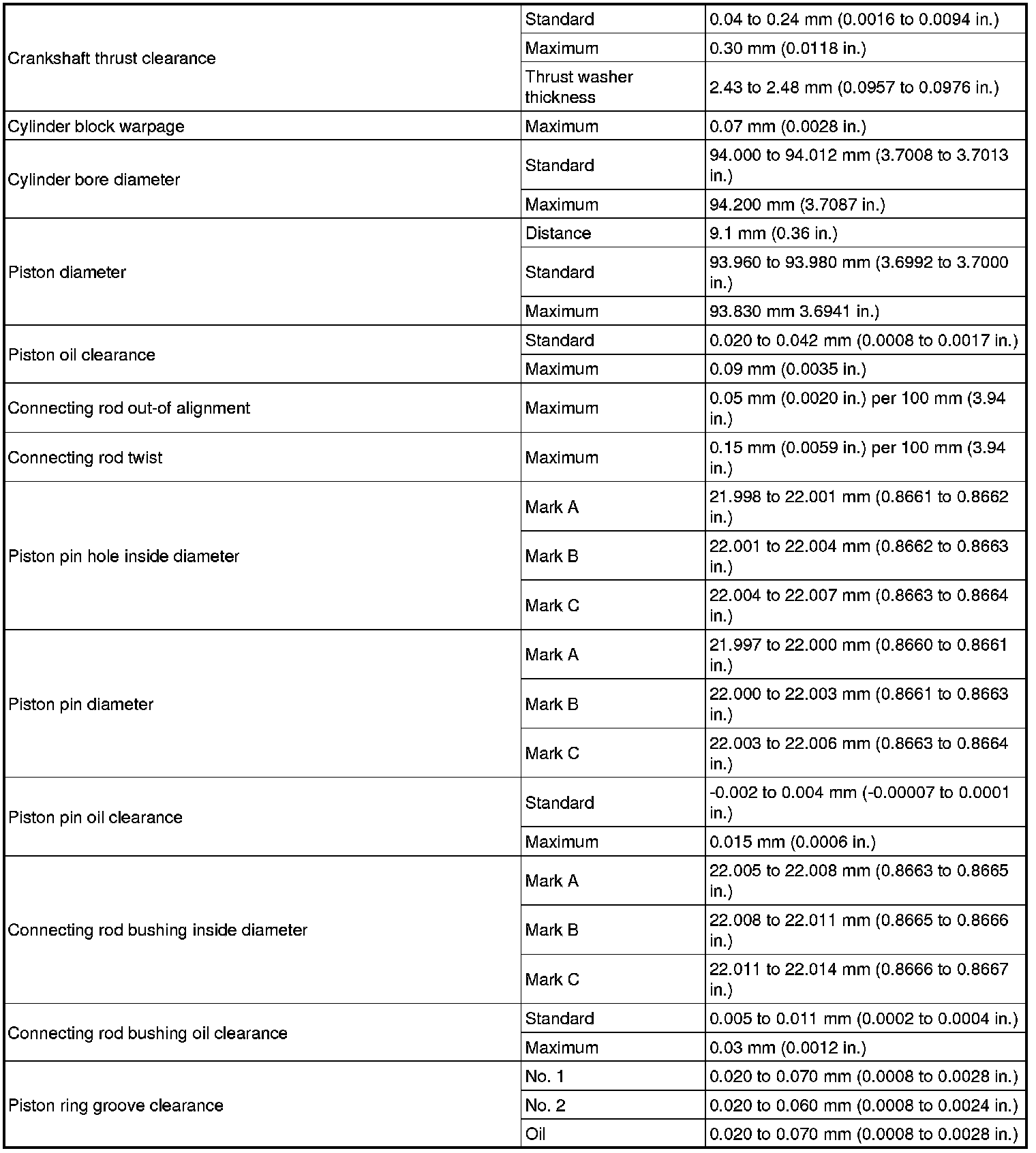

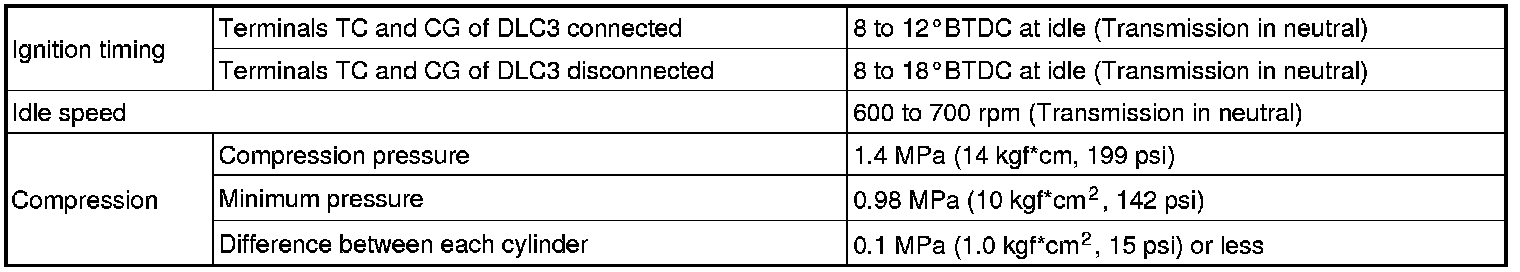

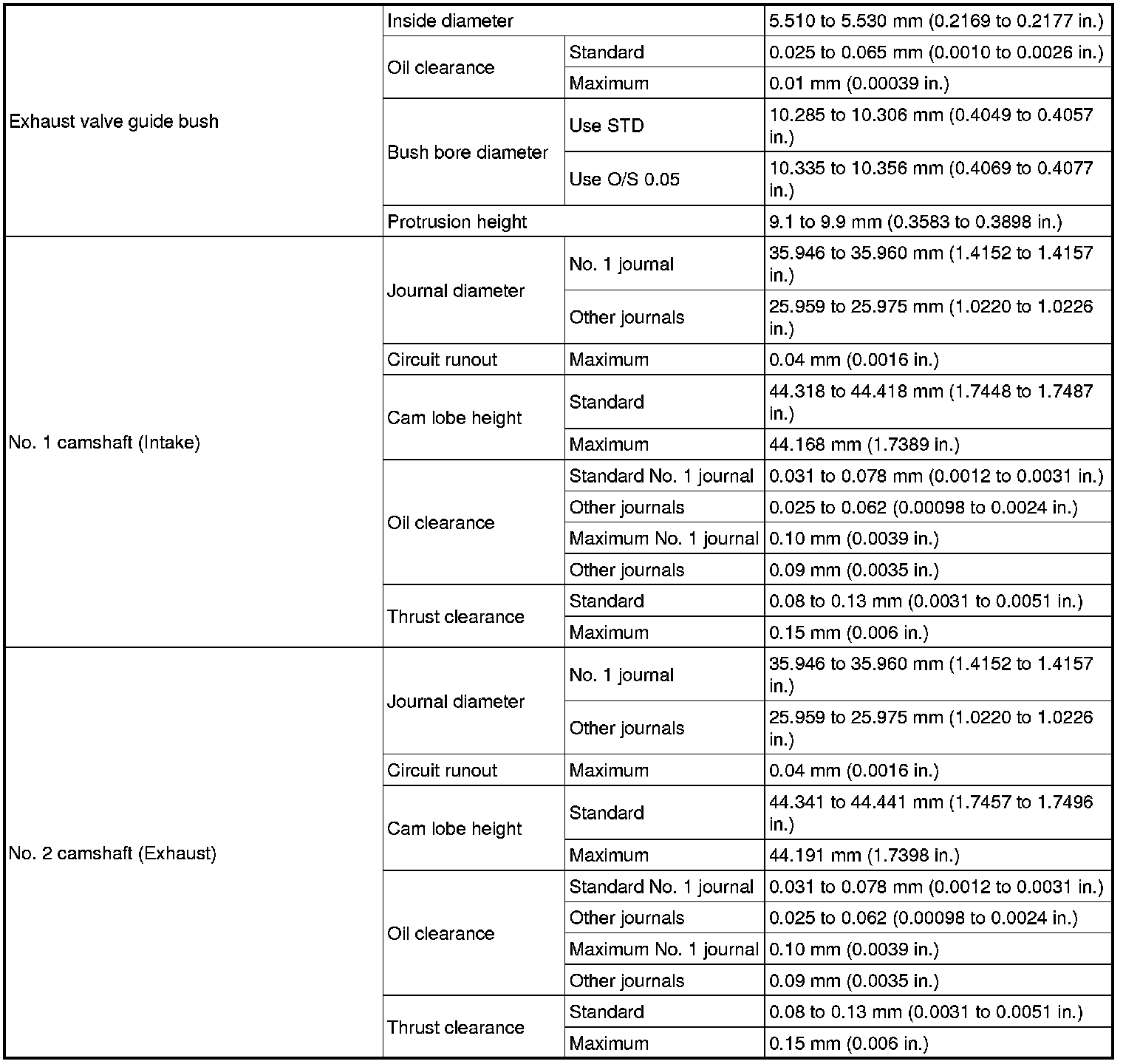

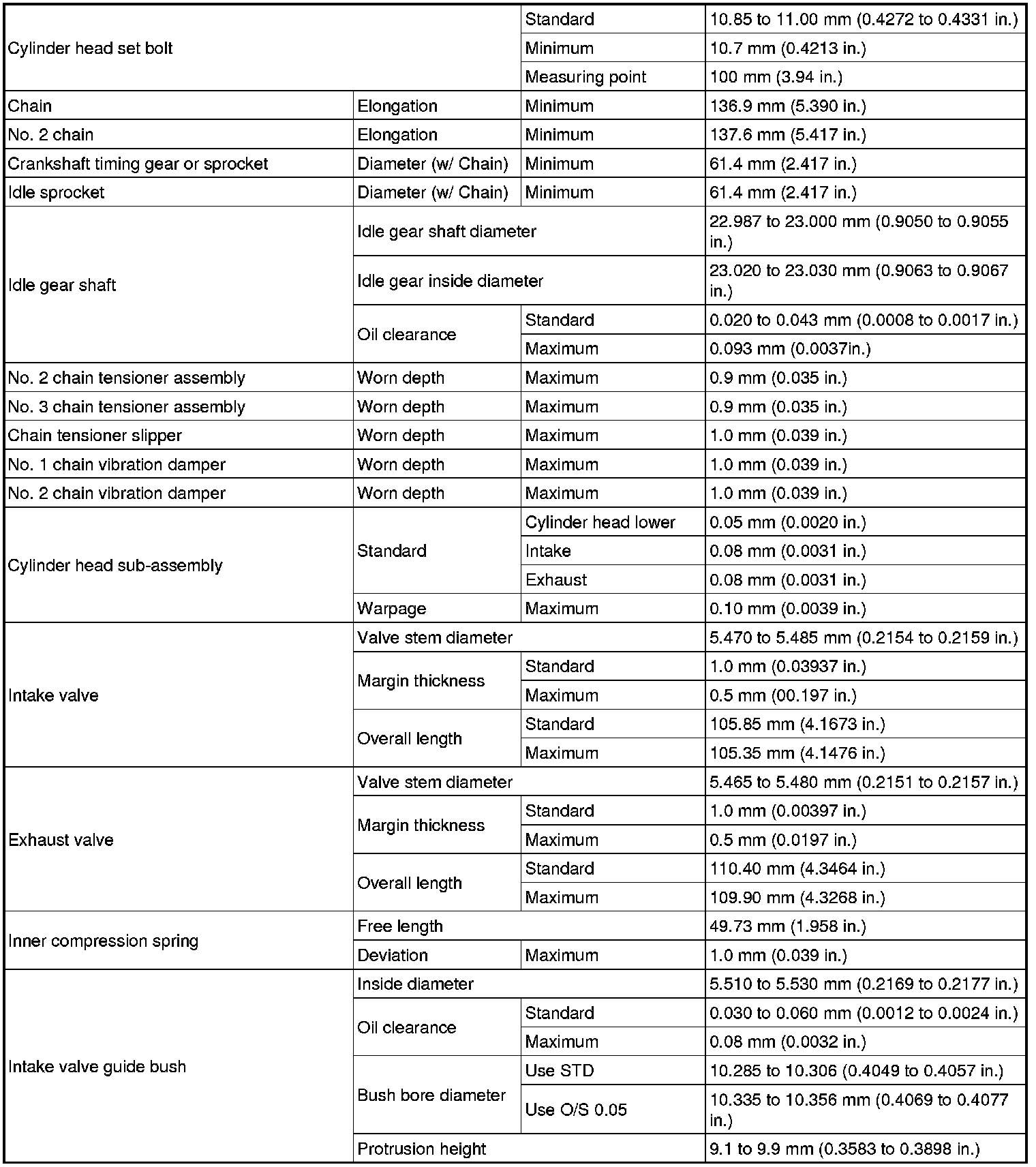

SERVICE DATA

ENGINE





ENGINE UNIT
