Torque Specifications

SERVICE SPECIFICATIONS: 2GR-FSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

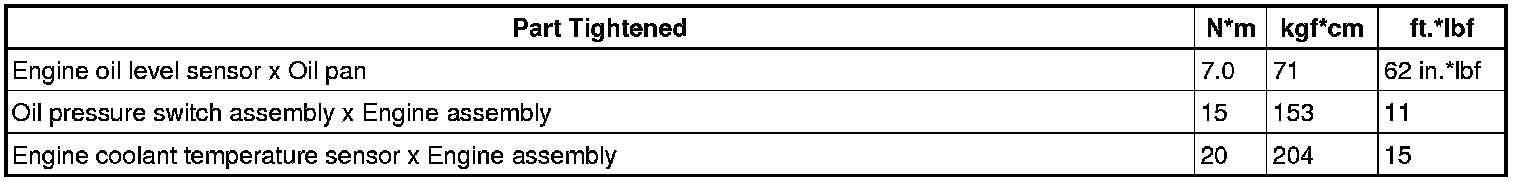

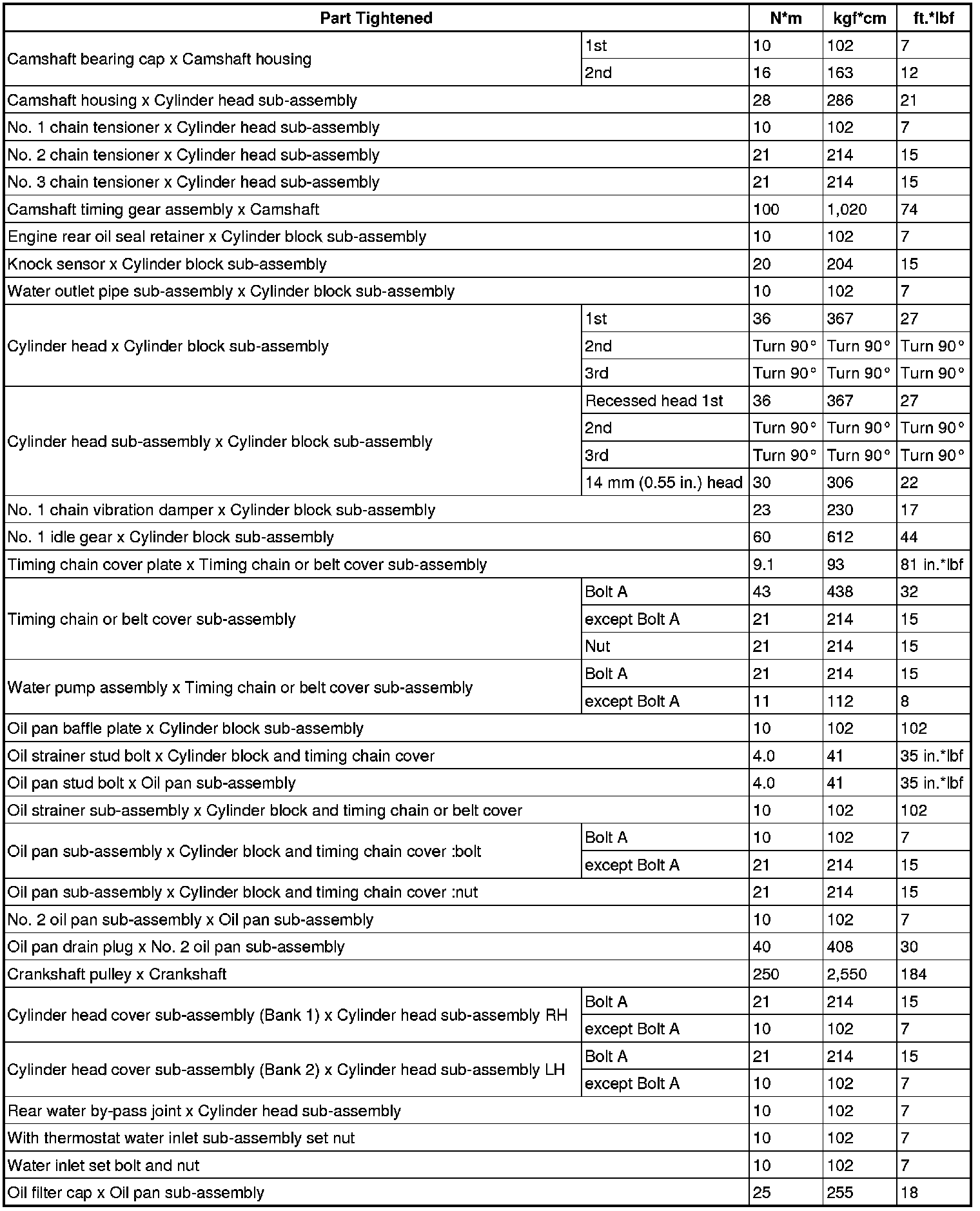

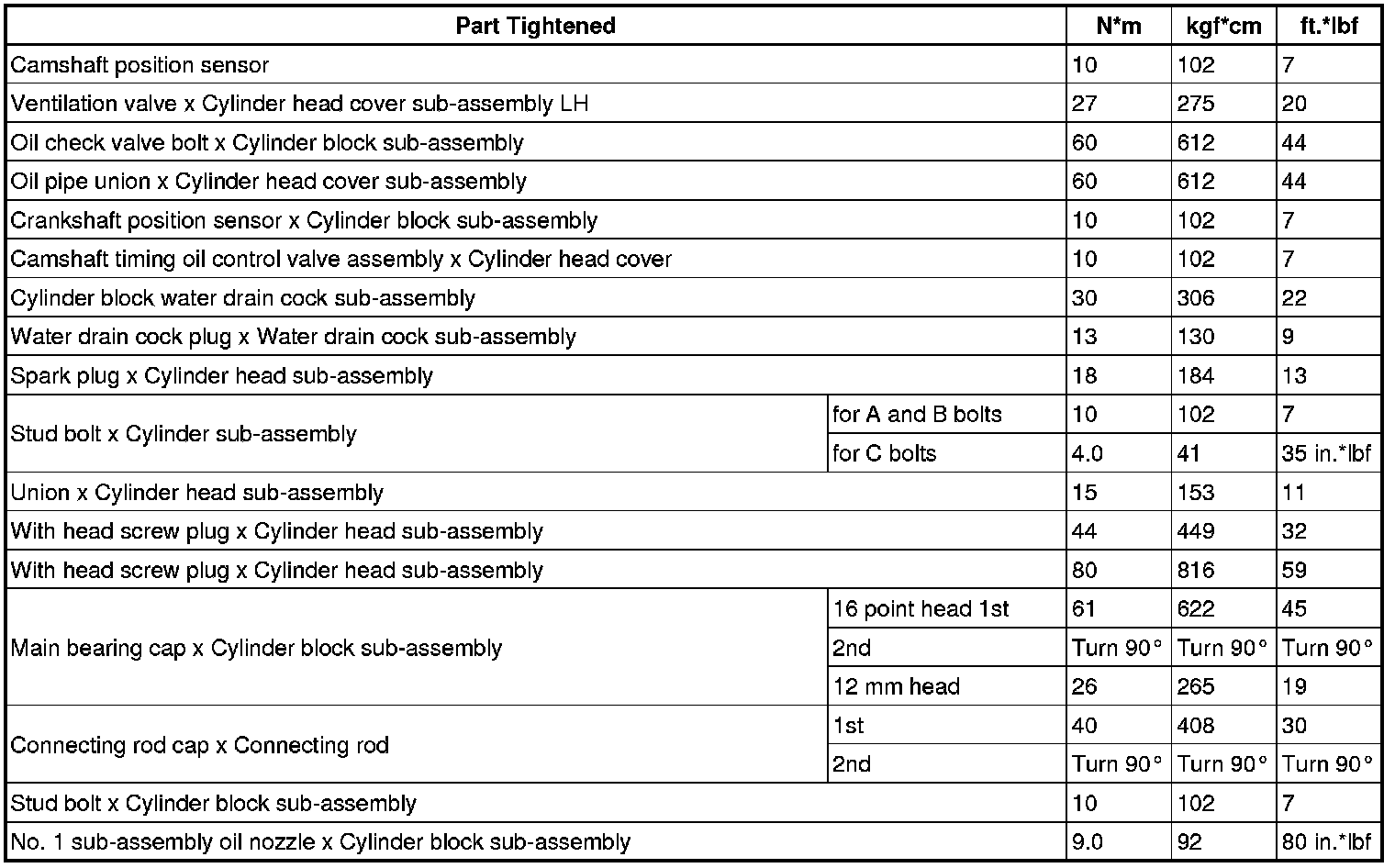

TORQUE SPECIFICATIONS

DRIVE BELT





ENGINE FRONT OIL SEAL





ENGINE ASSEMBLY









ENGINE UNIT









Intake Manifold Nuts and Bolts 21 Nm (214 kgf-cm, 15 ft-lbf)

Cylinder Head Bolt Reusability
Standard outside diameter: 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum outside diameter: 10.70 mm (0.4213 in.)
Measuring Point: 100 mm (3.94 in.)
If the diameter is less than the minimum, replace the cylinder head bolt.
