Back Window Glass: Components: Illustration

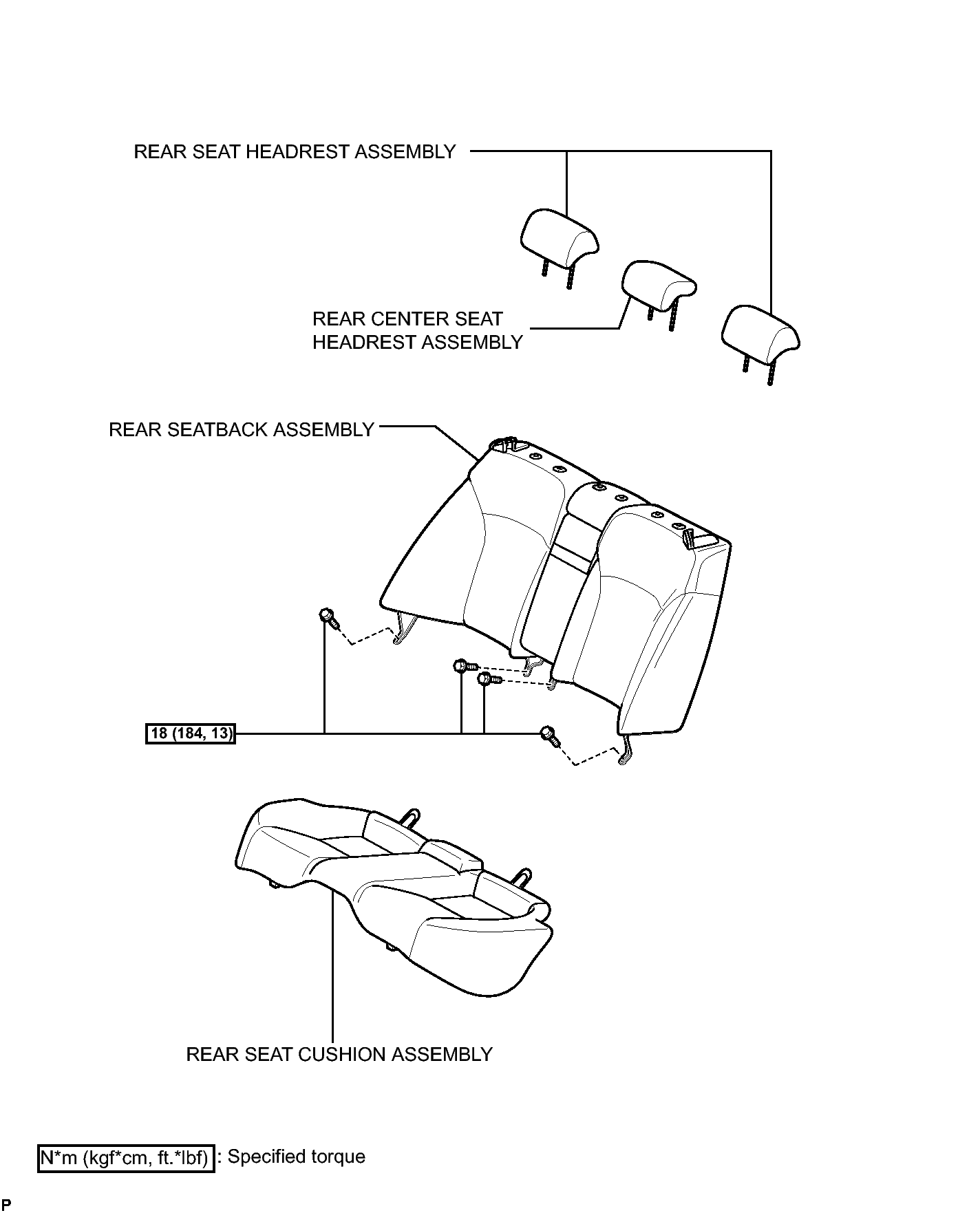

Fig 1: Identifying Rear Seat Assembly Replacement Components (1 Of 4)
GTY118680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

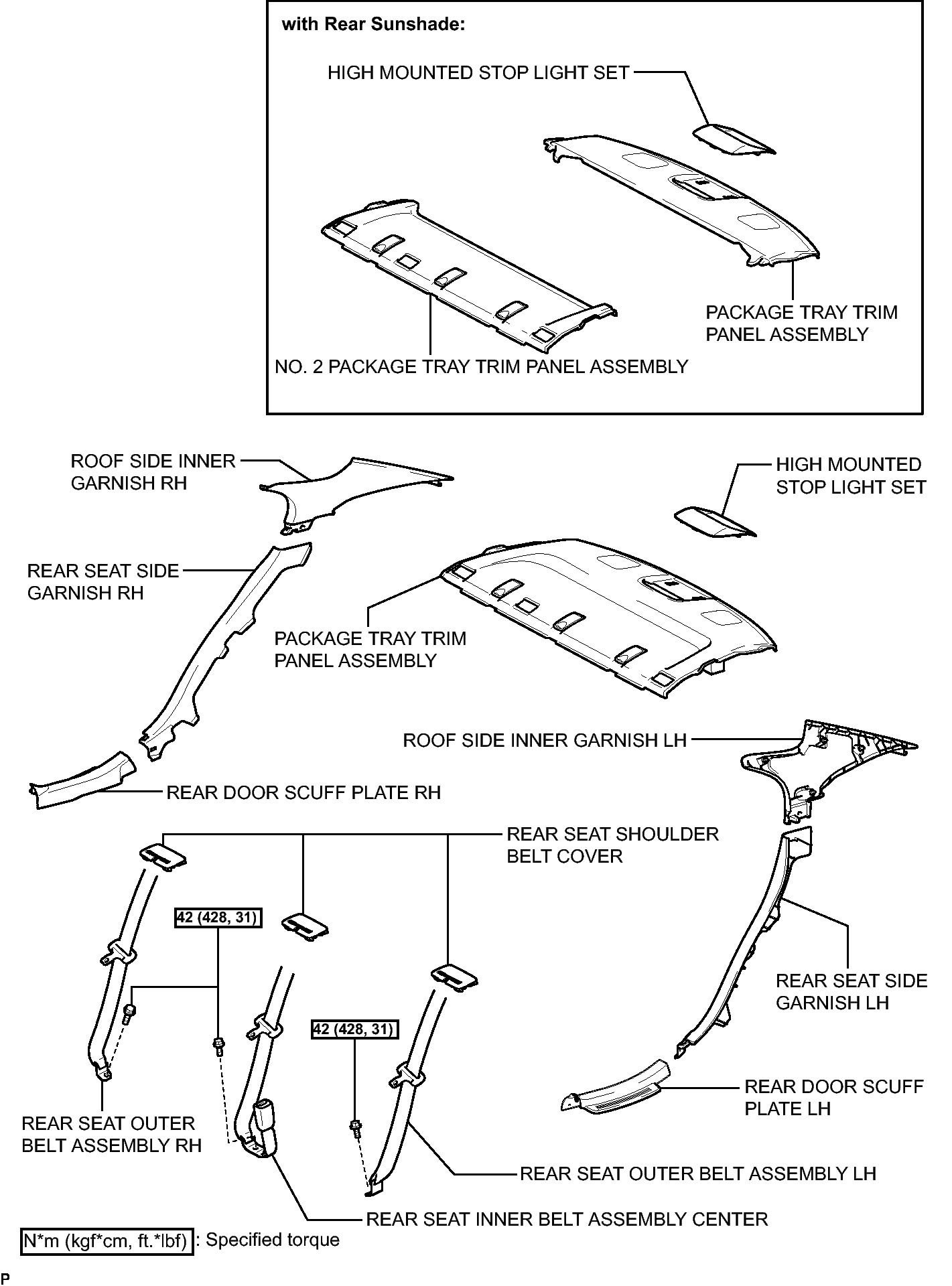

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specifications (2 Of 3)
GTY119408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

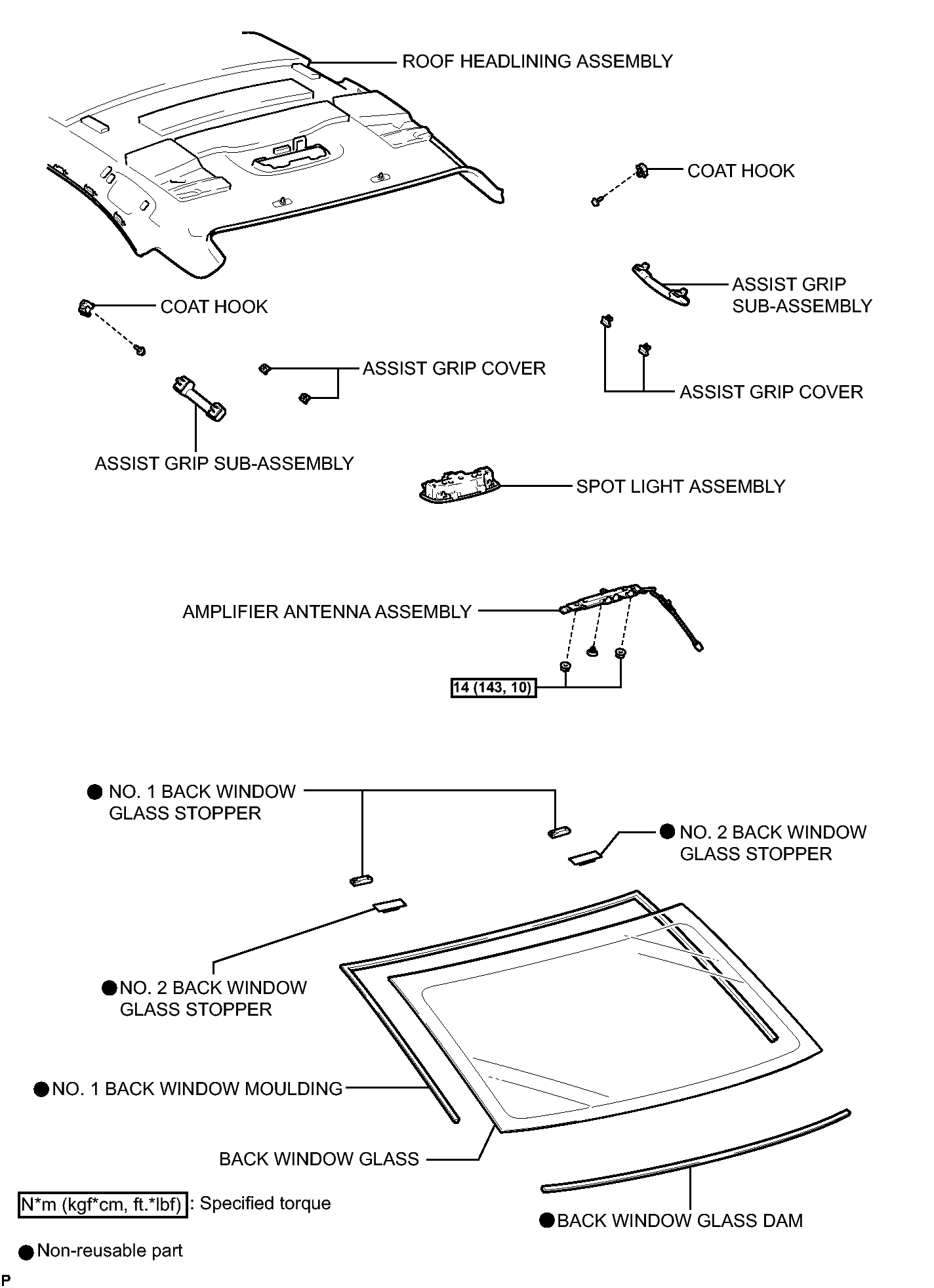

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specifications (3 Of 3)
GTY119409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
