Front Passenger Side Power Window Switch: Installation: Installation

INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
1. Engage the 2 claws and install the power window regulator switch assembly.

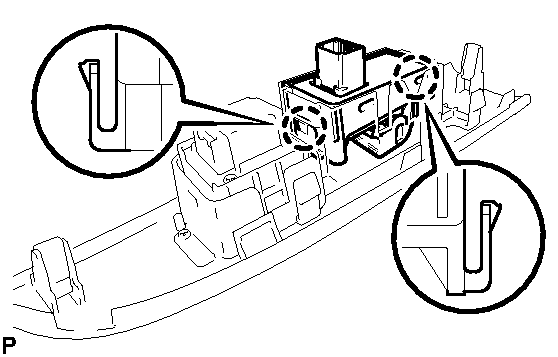

  Fig 1: Identifying Claws & Power Window Regulator Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
1. except Wood Panel:
  1. Connect the connector.
  2. Engage the 4 claws and 2 clips and install the power window regulator switch assembly with front door armrest base panel.

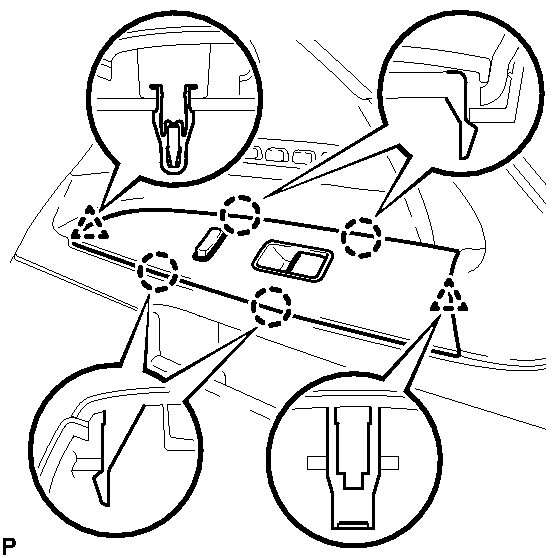

    Fig 2: Identifying Claws, Clips & Power Window Regulator Switch Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Wood Panel:
  1. Connect the connector.
  2. Engage the 3 claws and 2 clips and install the power window regulator switch assembly with front door armrest base panel.

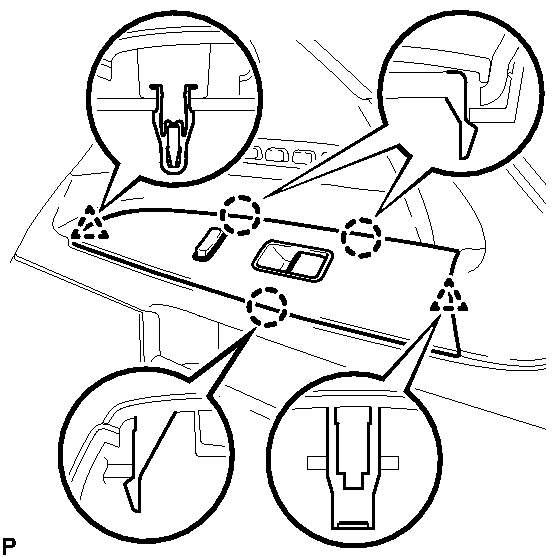

    Fig 3: Identifying Claws, Clips & Power Window Regulator Switch Assembly For Wood Panel
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
