Power Window Regulator Motor: Components: Illustration

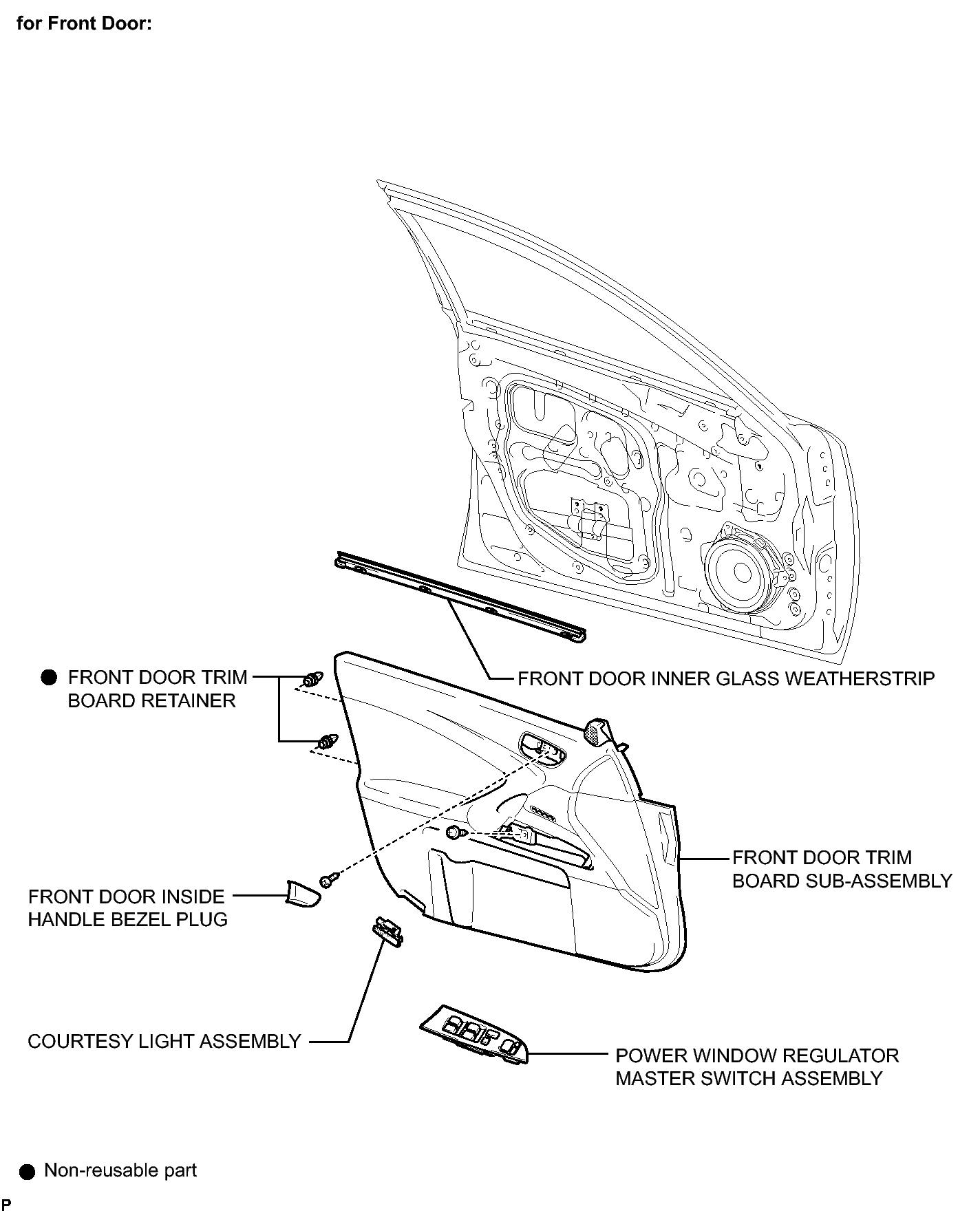

Fig 1: Identifying Power Window Regulator Motor Replacement Components (For Front Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

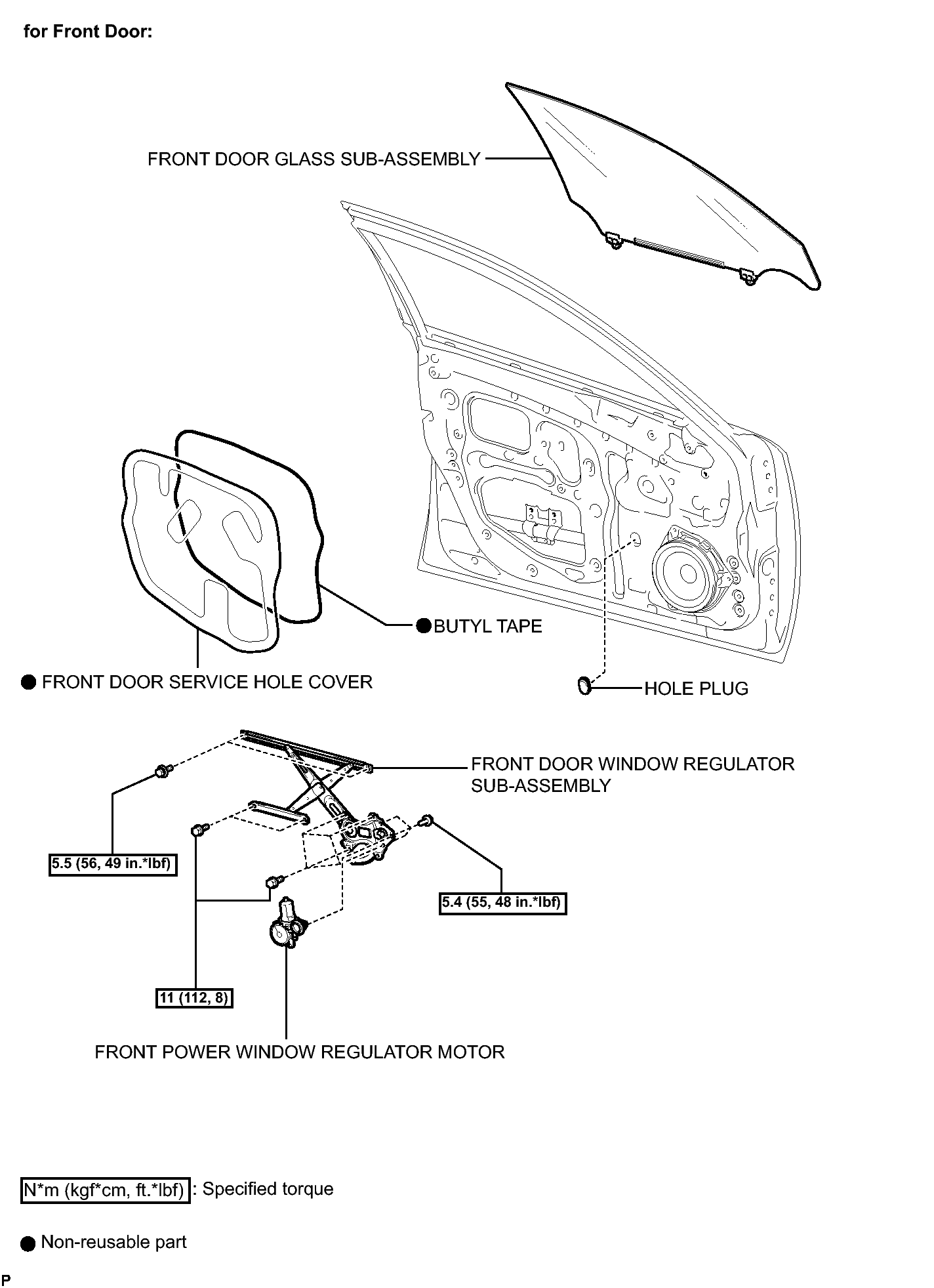

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (For Front Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

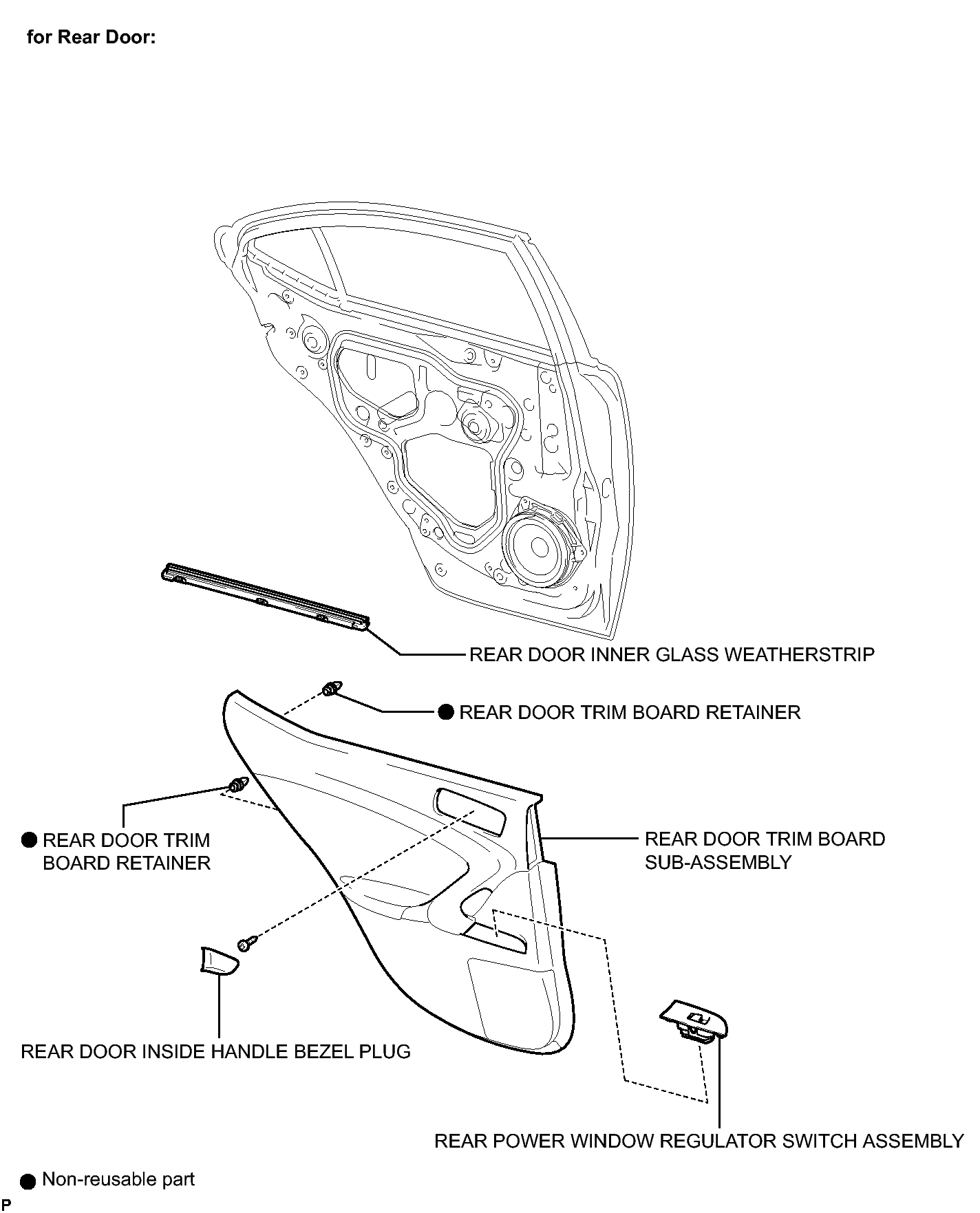

Fig 1: Identifying Power Window Regulator Motor Replacement Components (For Rear Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

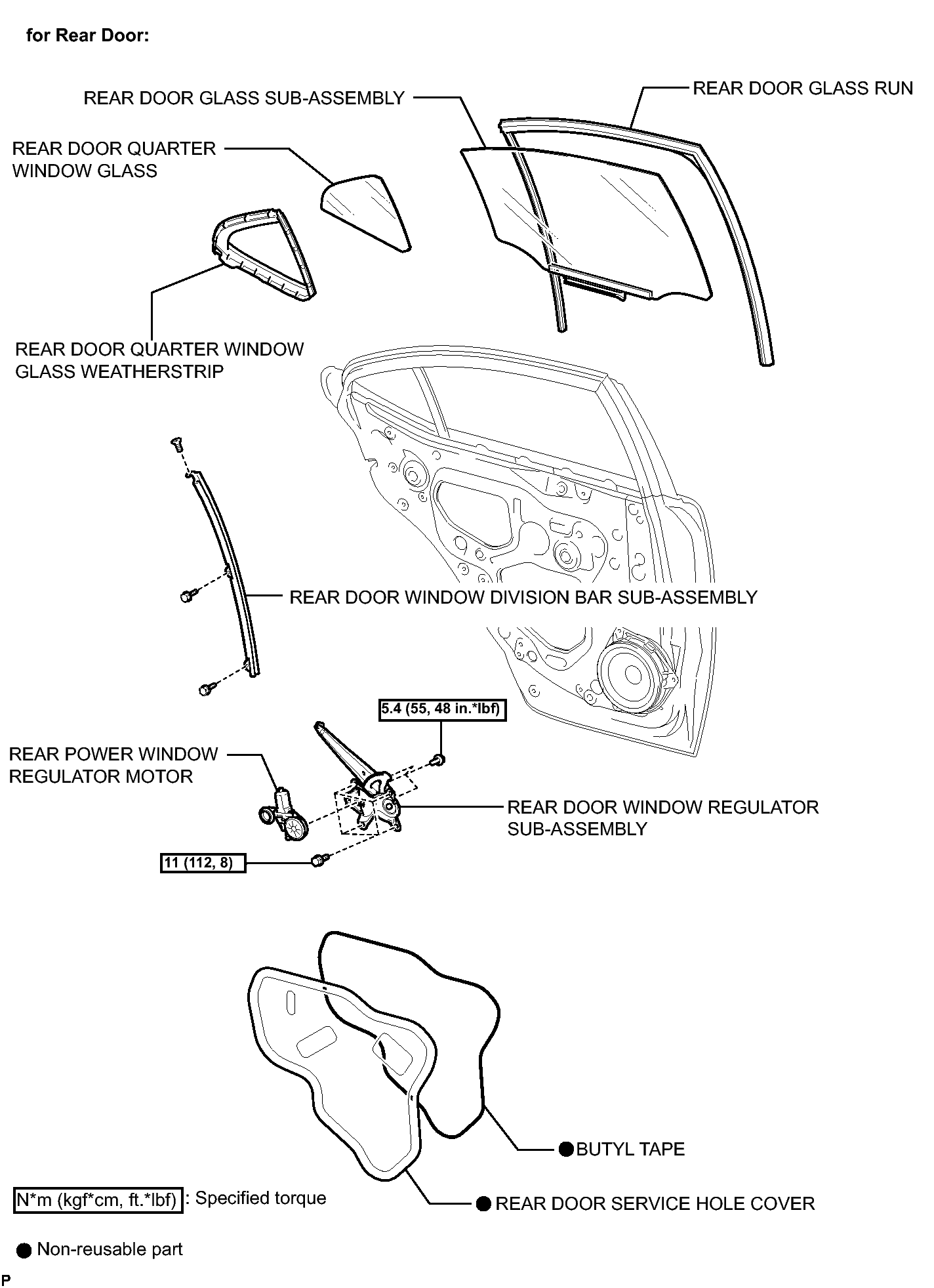

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (For Rear Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
