Windshield Glass: Components: Illustration

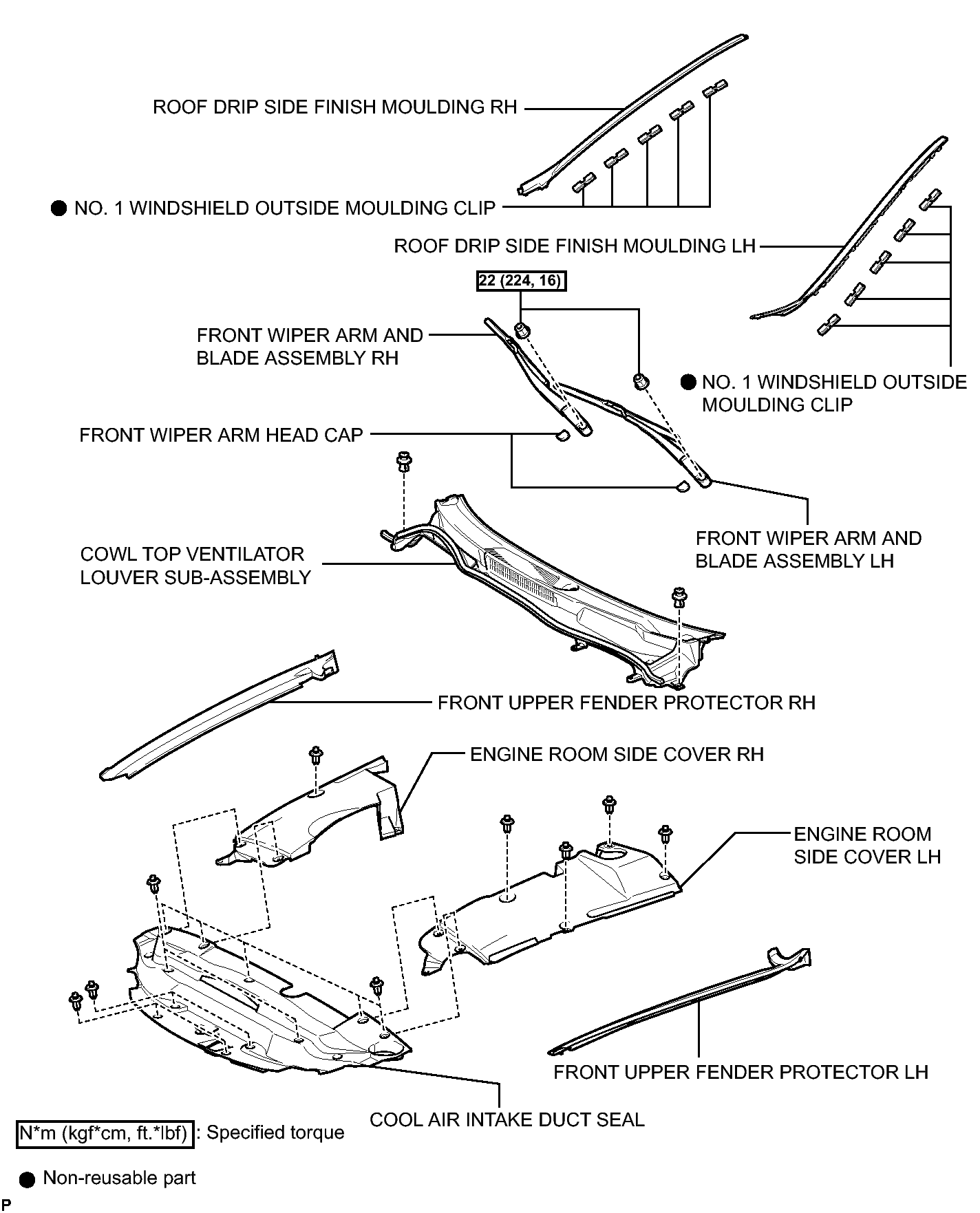

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specification (1 Of 3)
GTY119140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

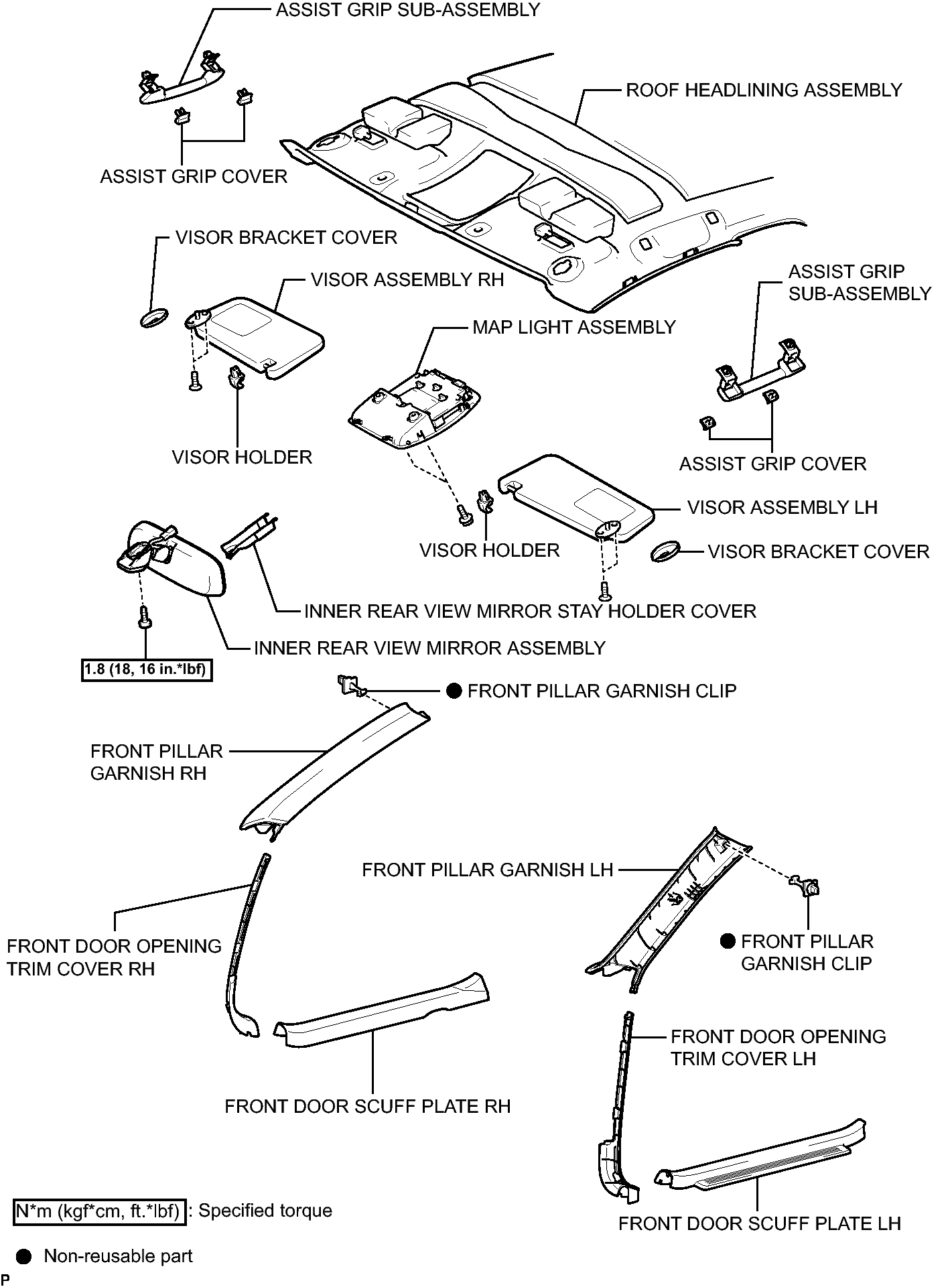

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specification (2 Of 3)
GTY118899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

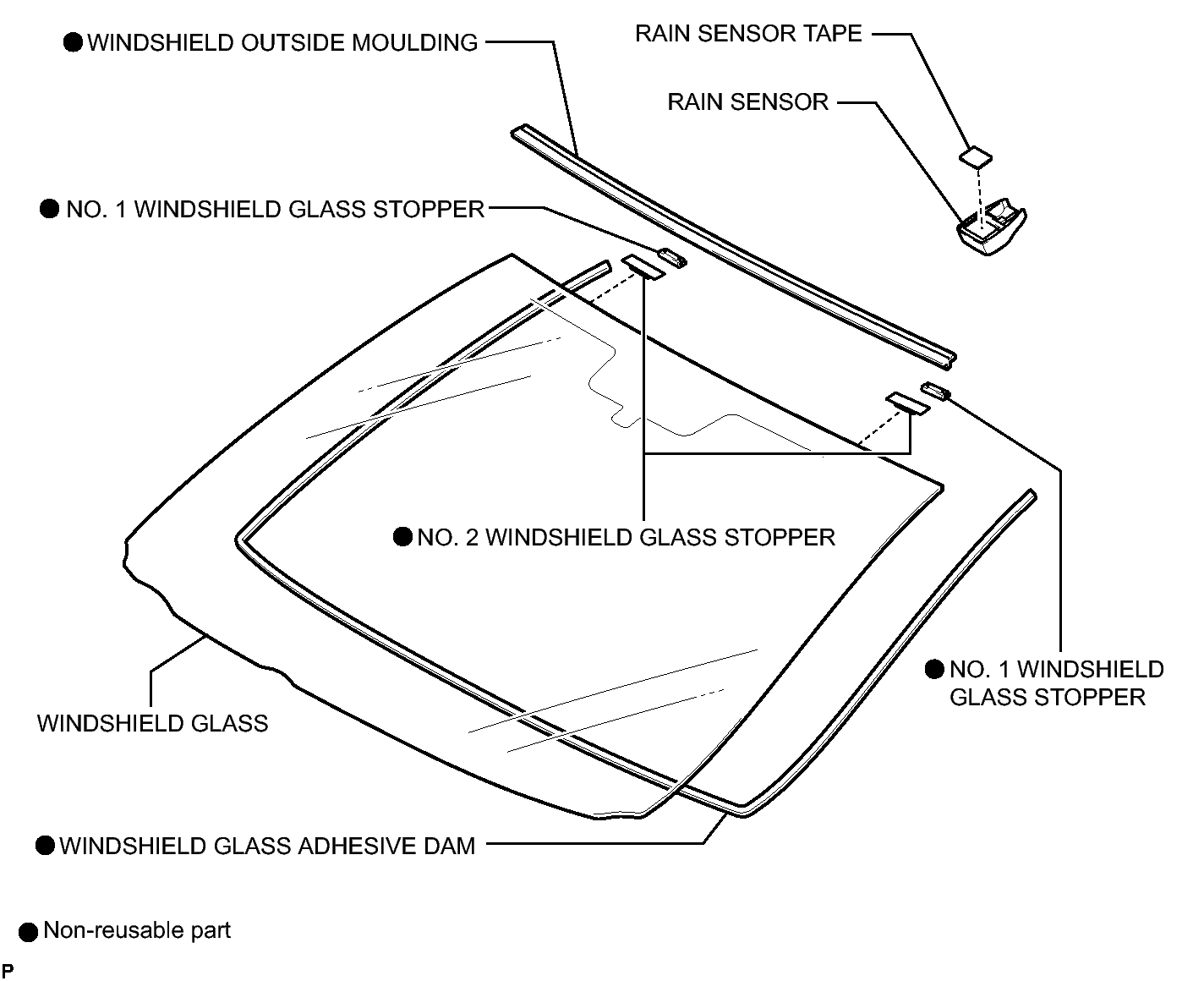

Fig 1: Identifying Windshield Glass Replacement Components (3 Of 3)
GTY142398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
