Power Mirror Control Module: Locations

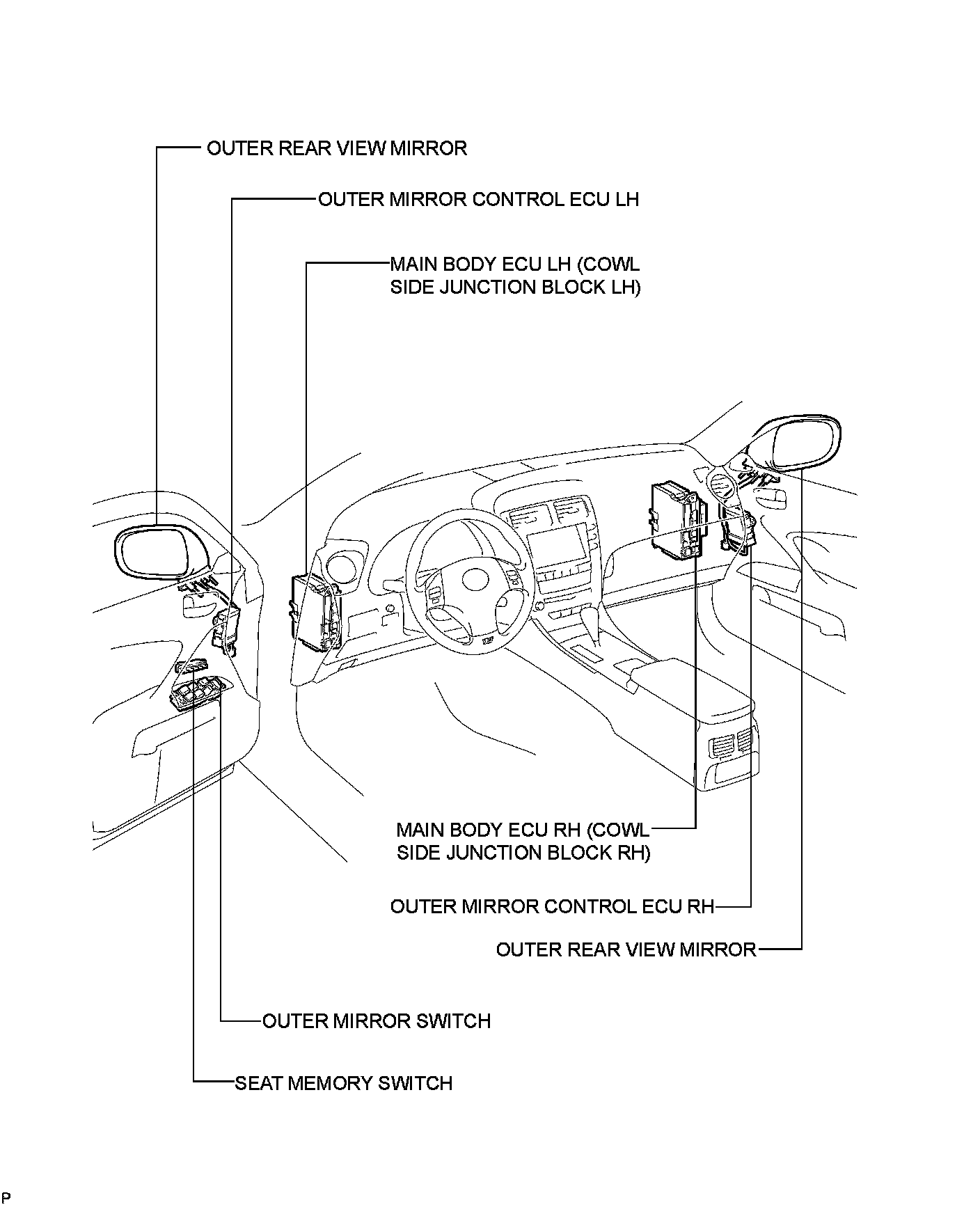

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: PARTS LOCATION
PARTS LOCATION

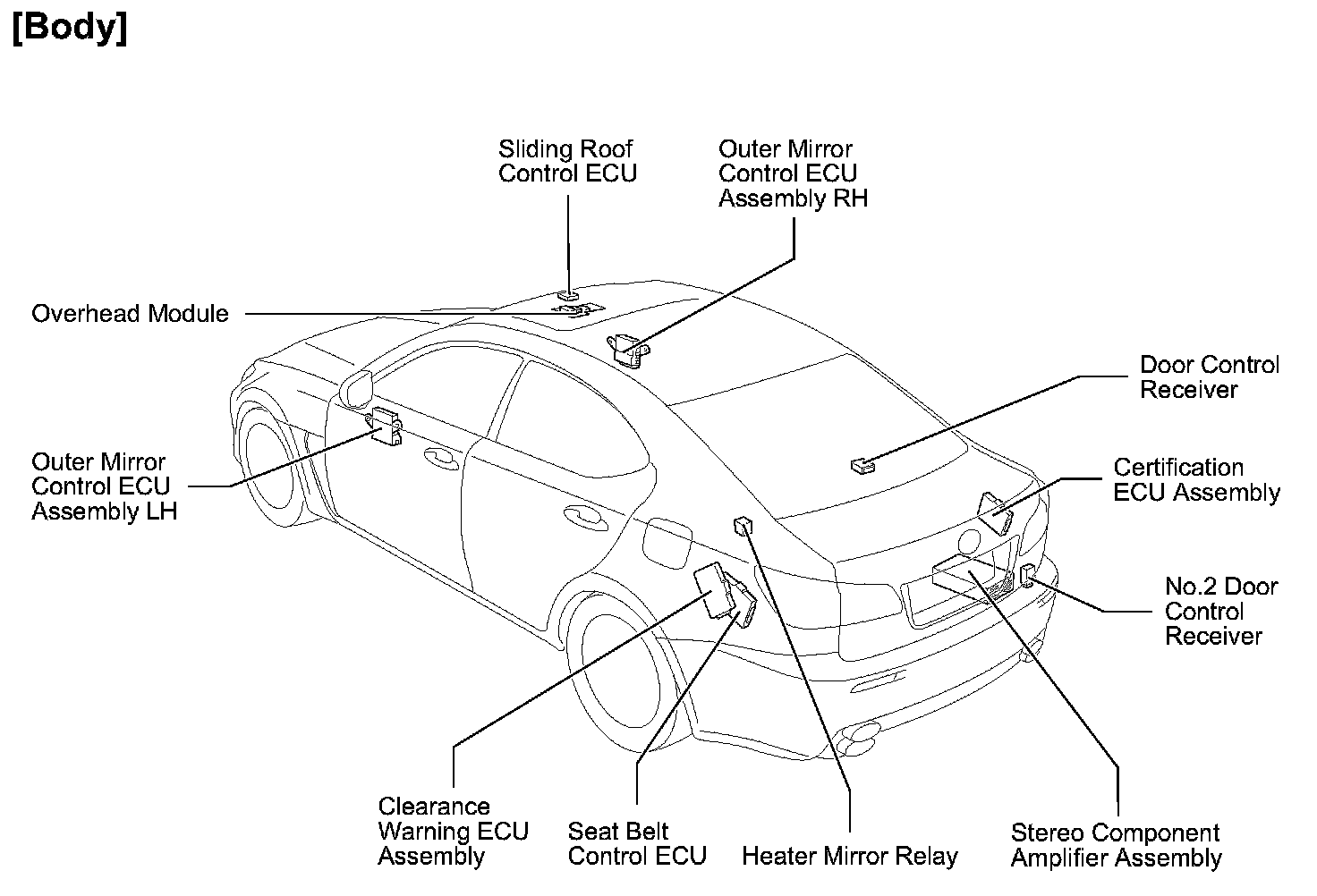

Body:
