Integration Relay

2UR-GSE ENGINE CONTROL: INTEGRATION RELAY: INSPECTION

INSPECTION

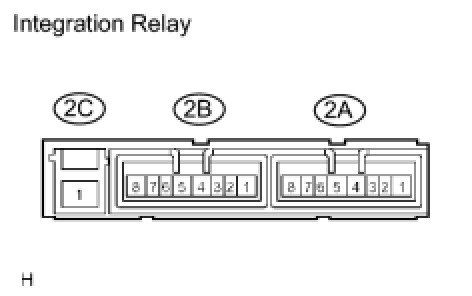

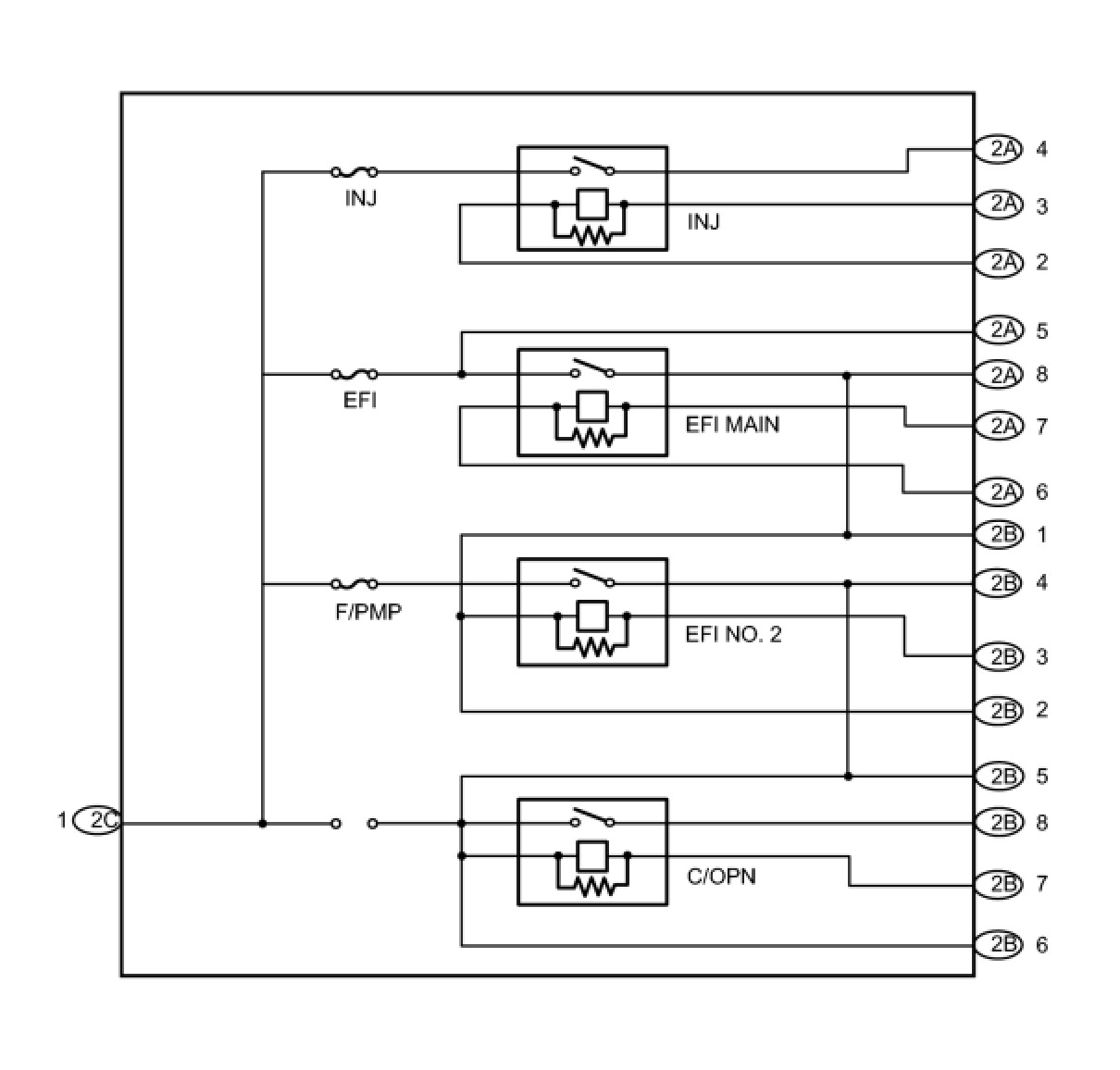

1. INSPECT INTEGRATION RELAY

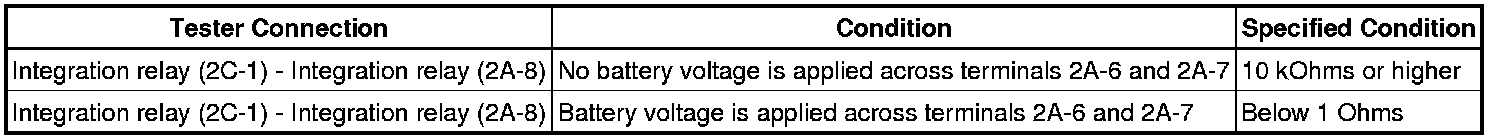

(a) EFI MAIN relay:




(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






If the resistance is not as specified, replace the integration relay.

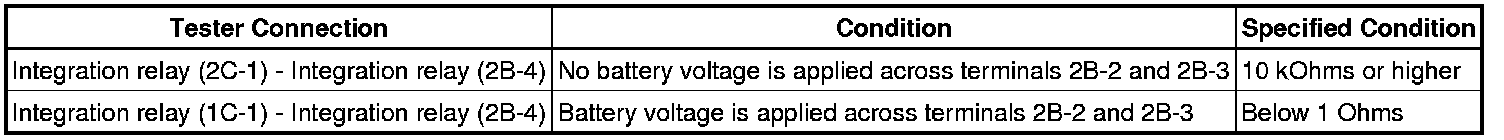

(b) EFI No. 2 relay:




(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






If the resistance is not as specified, replace the integration relay.

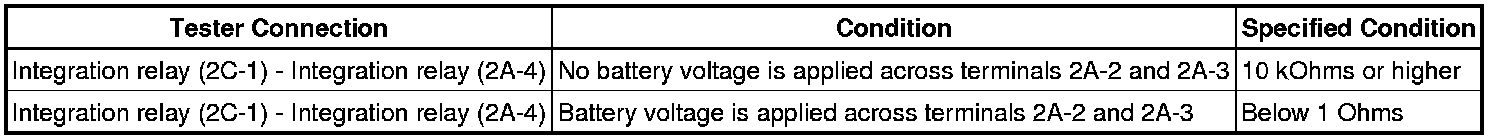

(c) INJ relay:




(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






If the resistance is not as specified, replace the integration relay.

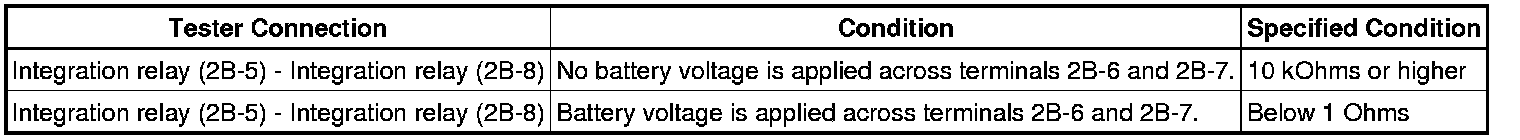

(d) C/OPN relay:




(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






If the resistance is not as specified, replace the integration relay.
