Relay

2UR-GSE ENGINE CONTROL: RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal
3. REMOVE ENGINE ROOM SIDE COVER LH Removal
4. REMOVE NO. 2 RELAY BLOCK COVER

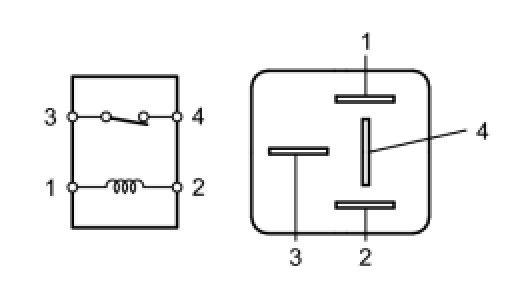

5. INSPECT IG2 RELAY
(a) Remove the IG2 relay from the No. 2 relay block.

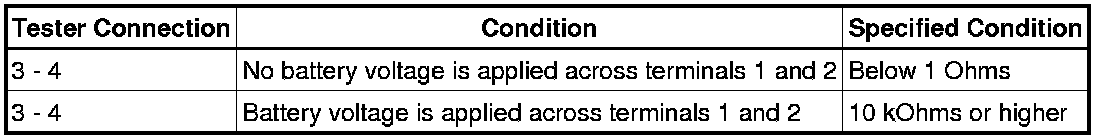

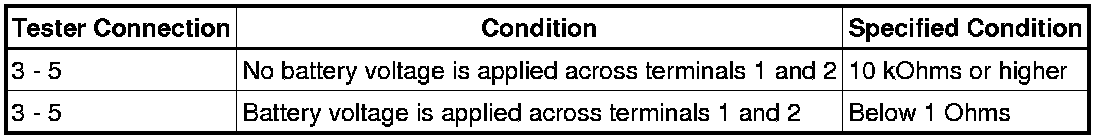

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.

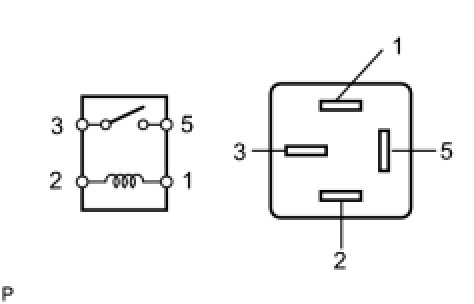

6. INSPECT VVT LH RELAY
(a) Remove the VVT LH relay from the No. 2 relay block.





(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.
7. INSPECT VVT RH RELAY
(a) Remove the VVT RH relay from the No. 2 relay block.





(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.

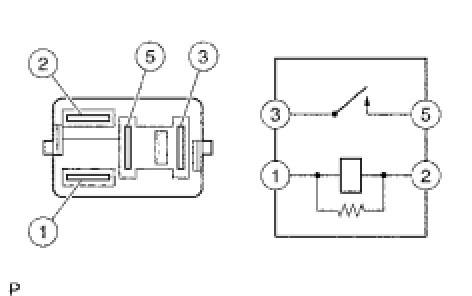

8. INSPECT INJ2 RELAY
(a) Remove the INJ2 relay from the No. 2 relay block.





(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.
9. INSPECT A/F RELAY
(a) Remove the A/F relay from the No. 2 relay block.





(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.
10. INSPECT F/PMP RELAY
(a) Remove the F/PMP relay from the No. 2 relay block.





(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.
11. INSTALL NO. 2 RELAY BLOCK COVER
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

13. INSTALL ENGINE ROOM SIDE COVER LH Installation
14. INSTALL COOL AIR INTAKE DUCT SEAL Installation
