Alignment
SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA
SERVICE DATA

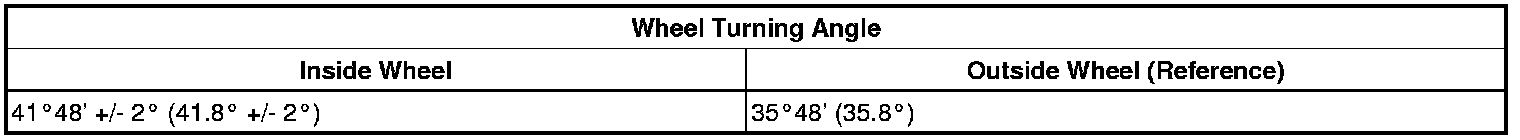

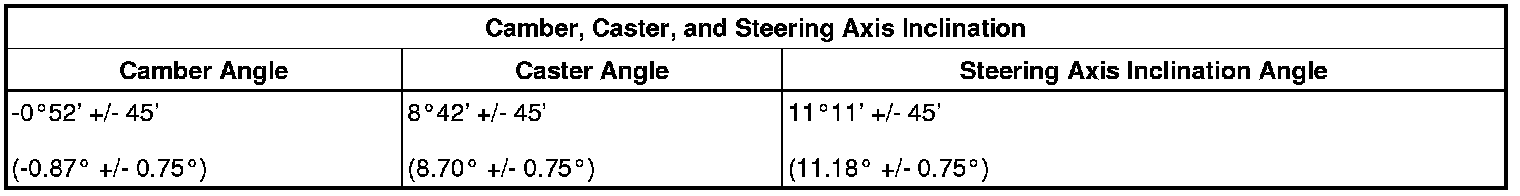

Front Wheel Alignment

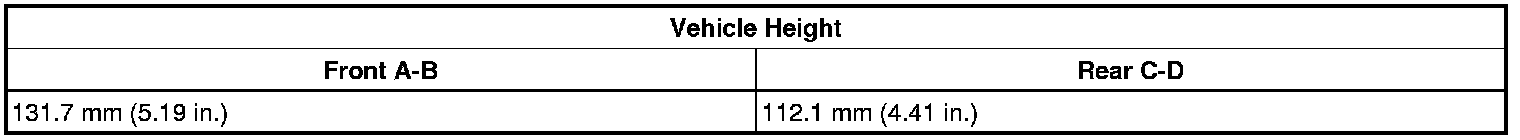

Measuring points:
A: Ground clearance of front wheel center.
B: Ground clearance of front center position of front suspension lower arm assembly front bushing installation bolt head.
C: Ground clearance of rear center position of rear No. 2 suspension arm bushing installation bolt threads.
D: Ground clearance of rear center position of rear suspension lower arm assembly rear bushing installation bolt head.
Front Wheel Alignment
Rear Wheel Alignment
