Service Data

SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

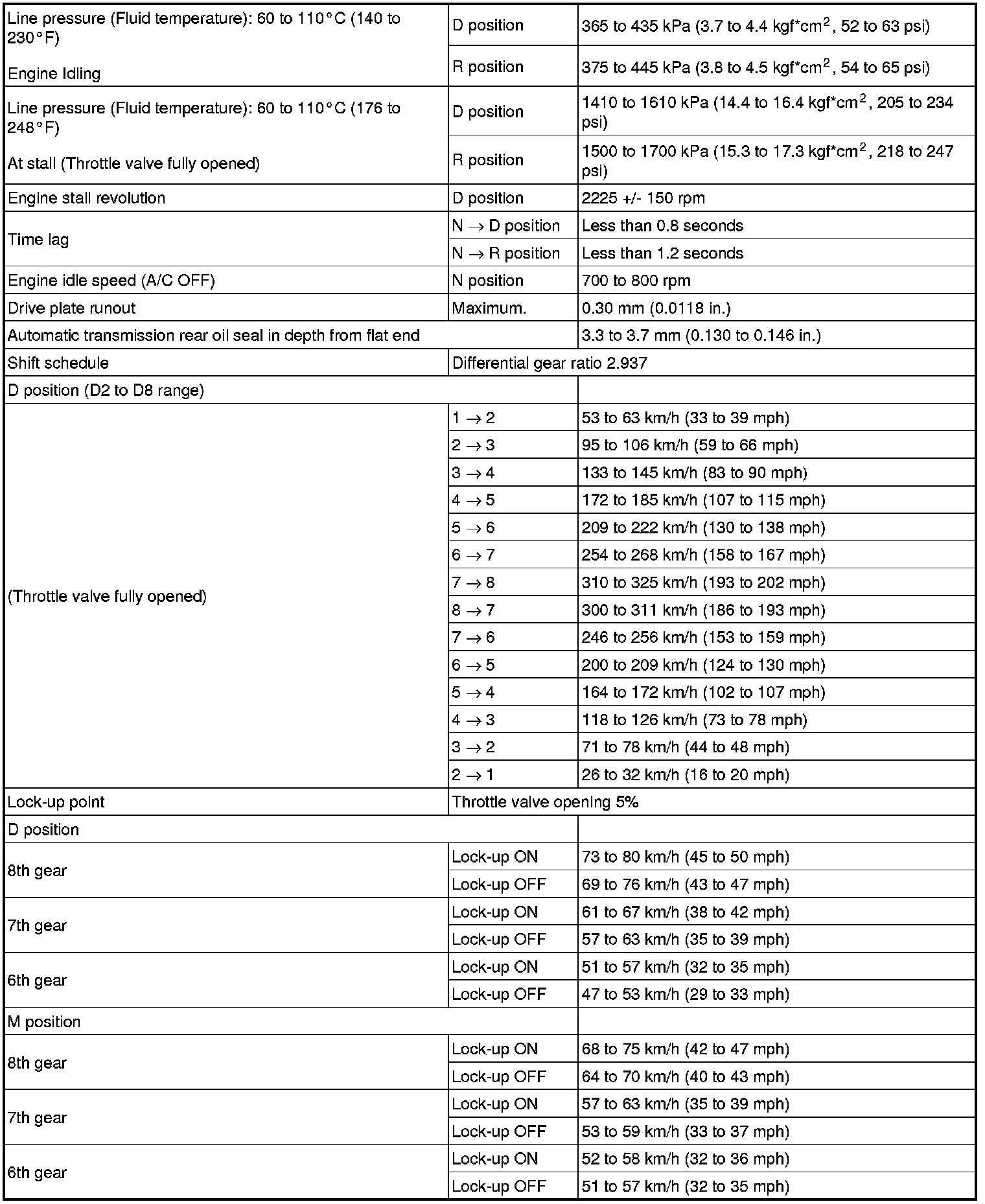

SERVICE DATA









NOTICE:
- All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
- If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

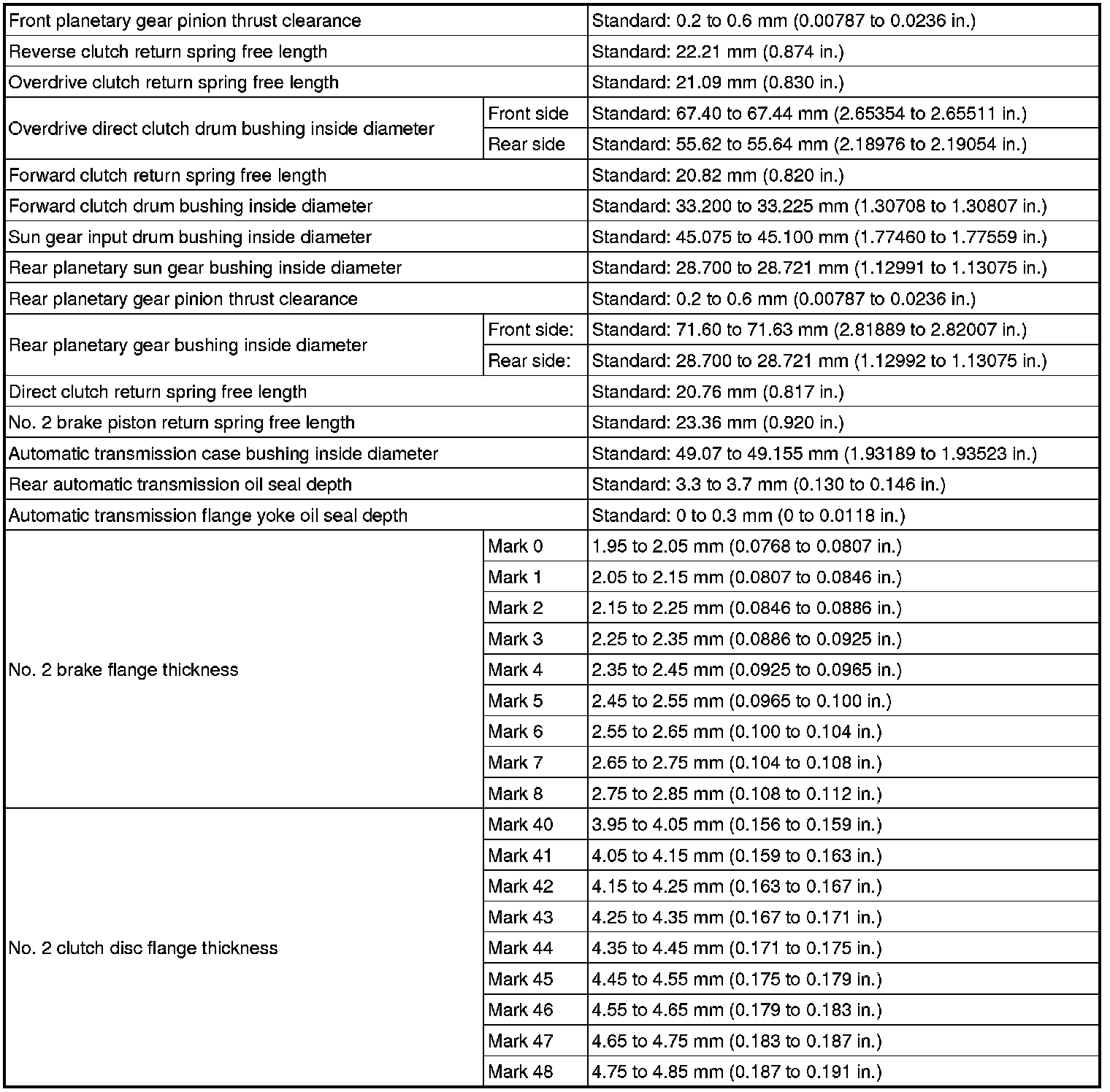

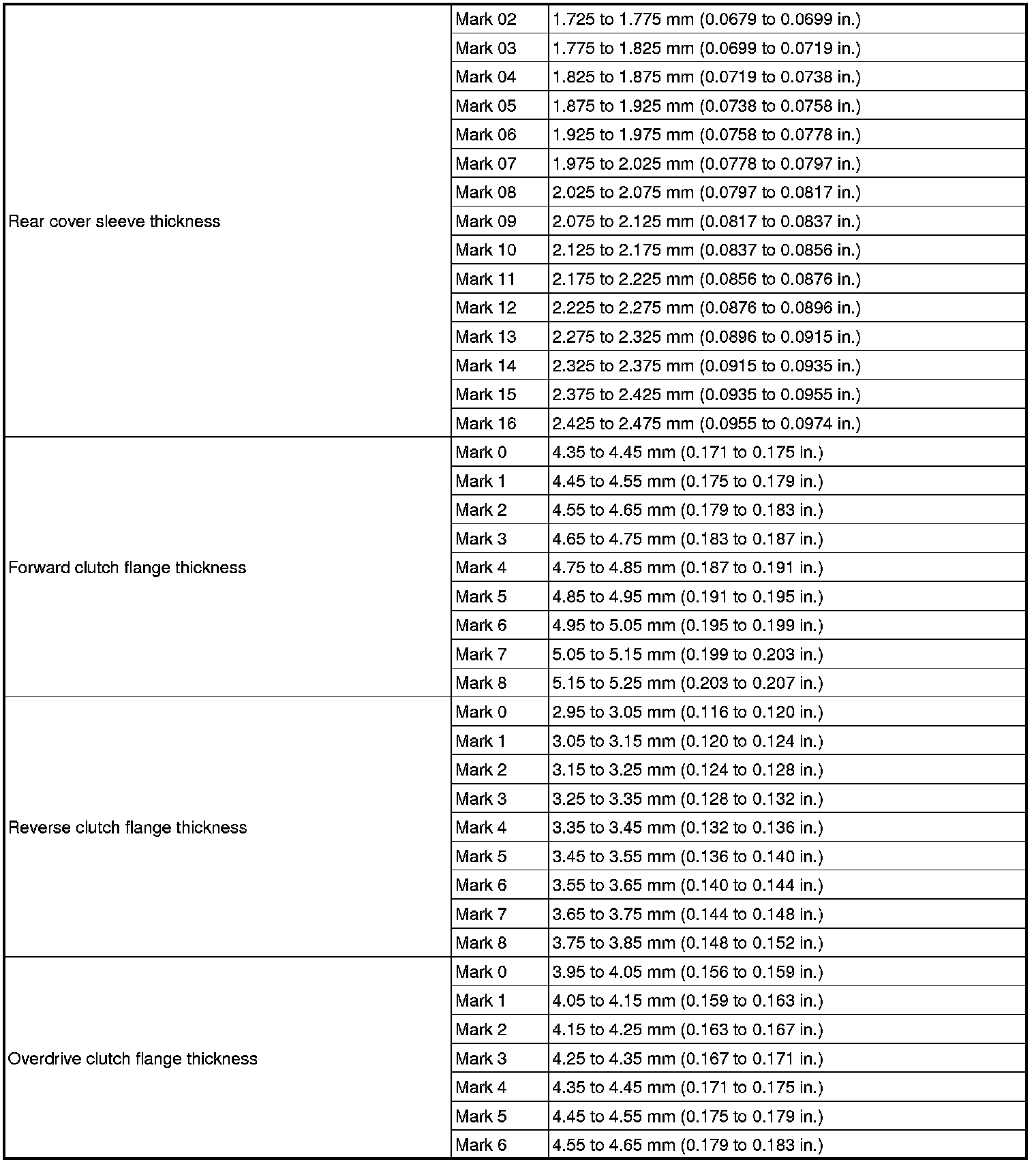

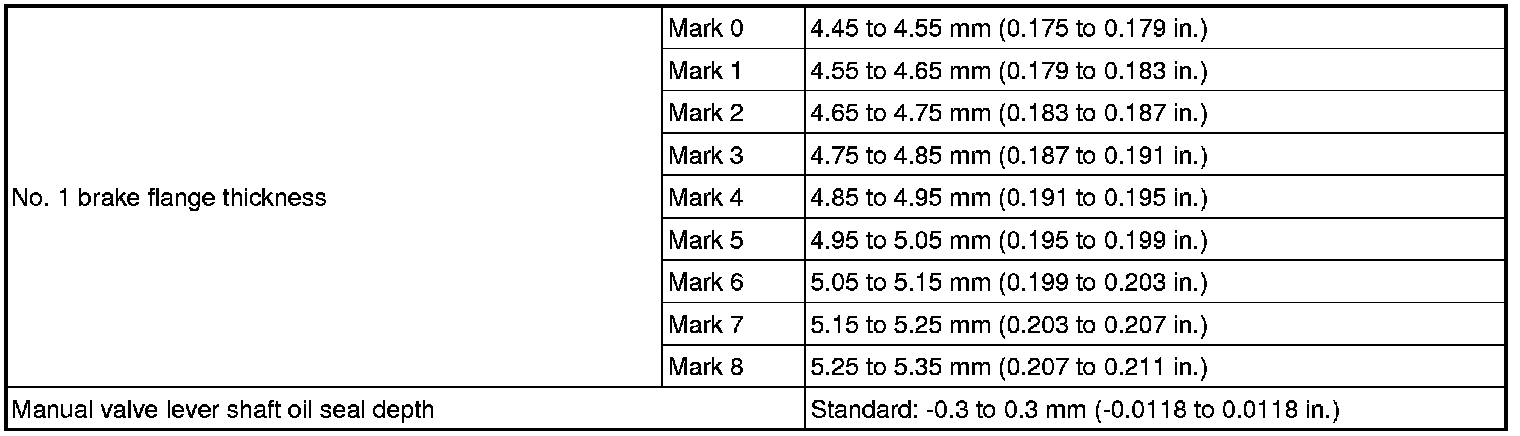

AUTOMATIC TRANSMISSION UNIT

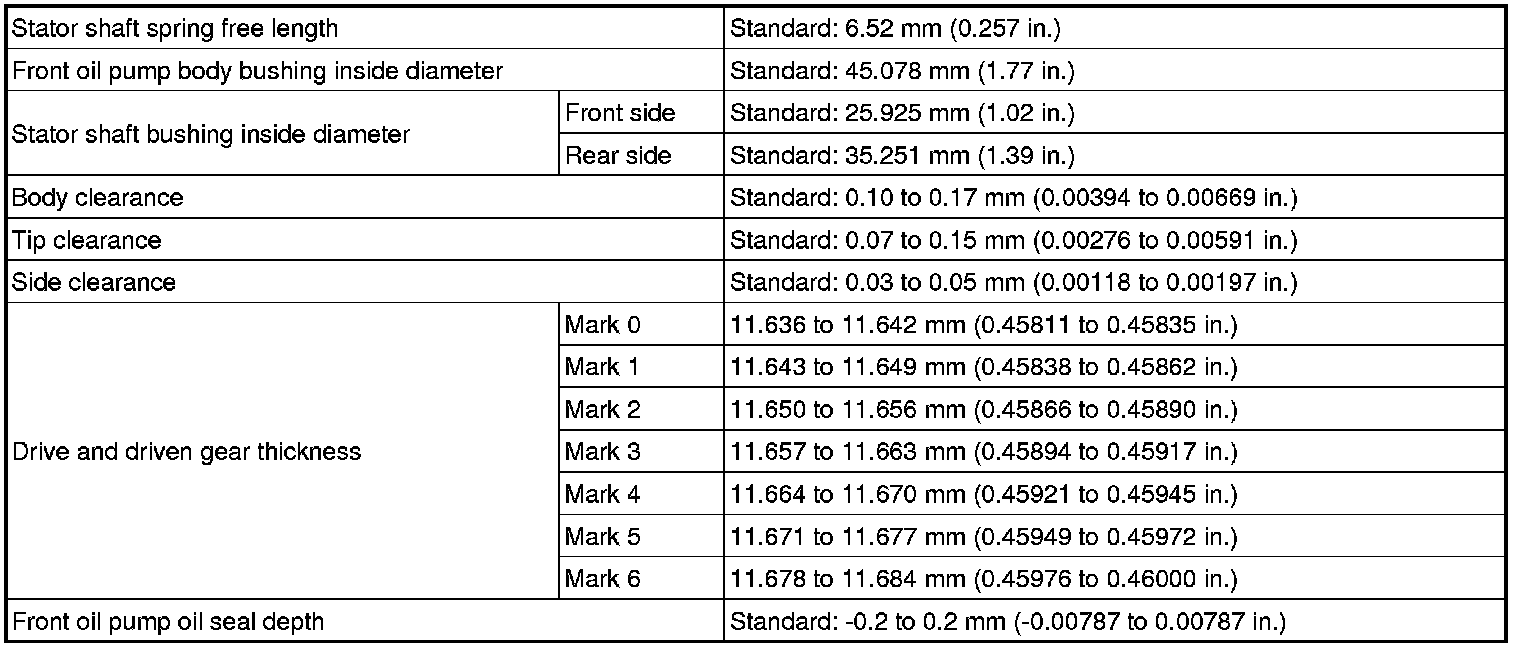

OIL PUMP
