Torque Specifications








SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

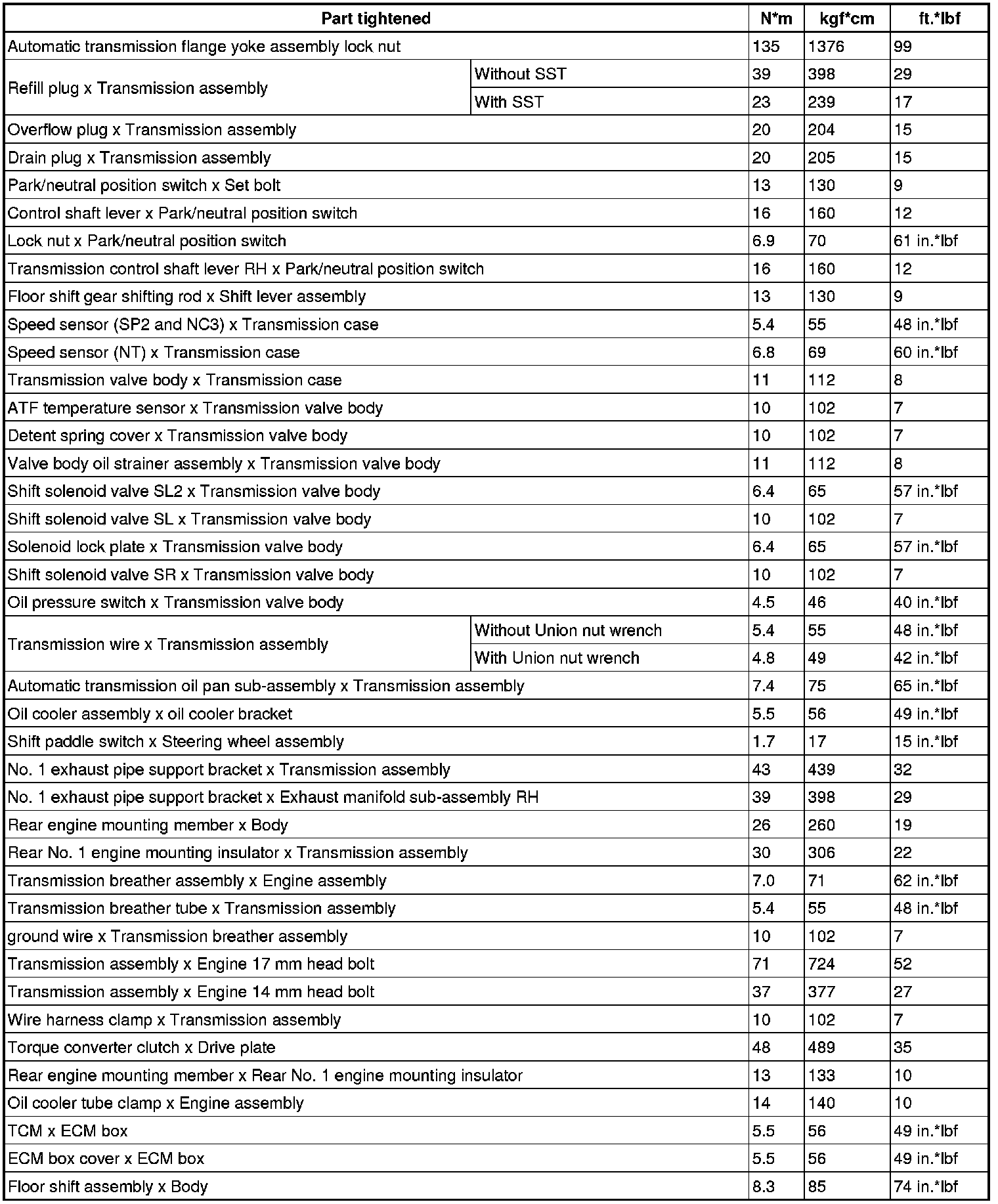

AUTOMATIC TRANSMISSION ASSEMBLY

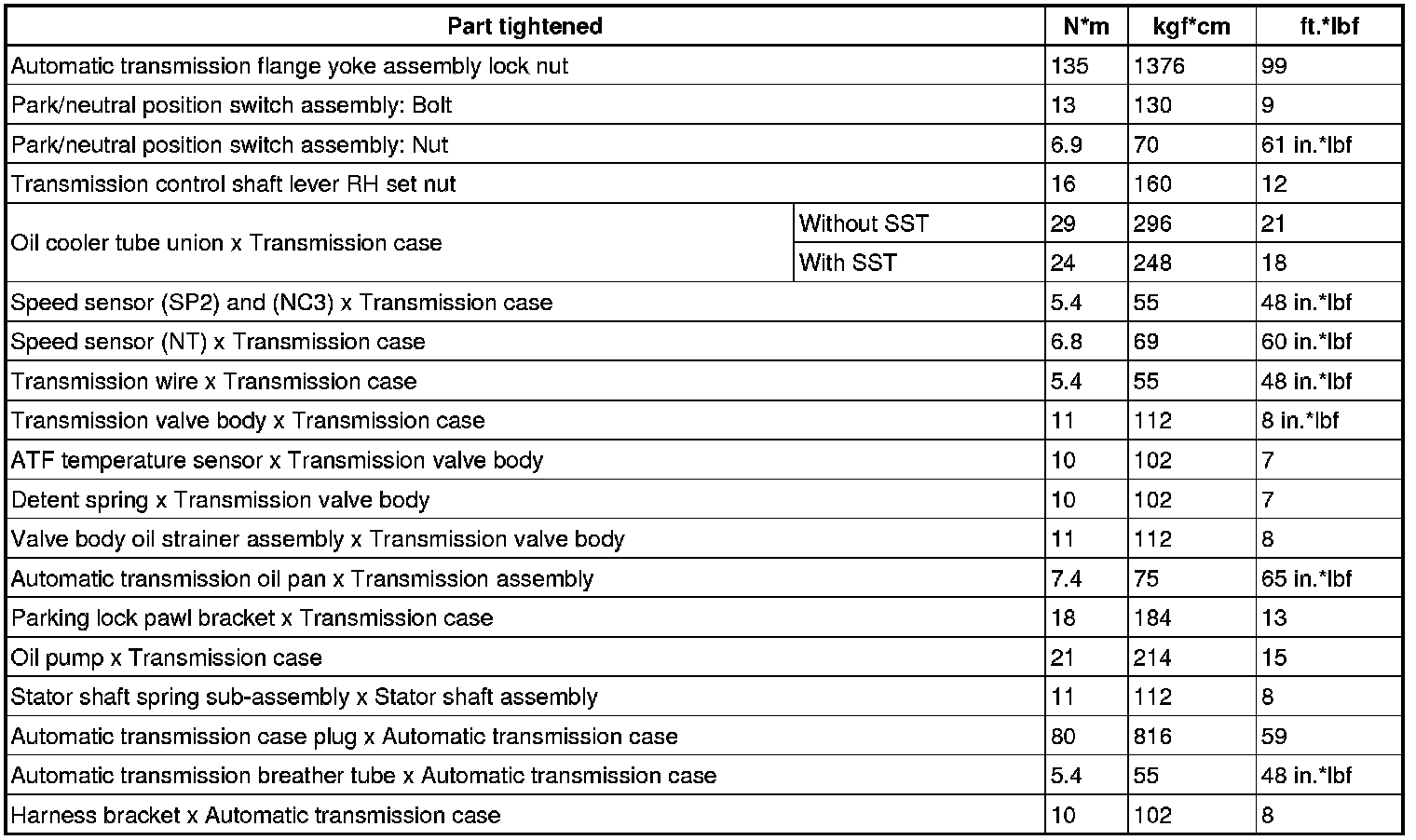

AUTOMATIC TRANSMISSION UNIT

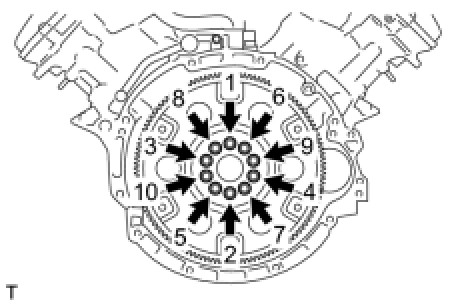

Drive plate 30 Nm (301 kgf-cm, 22 ft-lb)

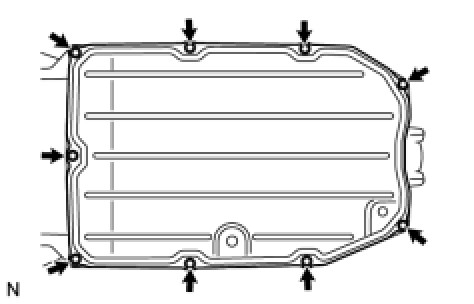

Oil pan 7.4 Nm (75 kgf-cm, 65 in-lb)
