Intake Manifold

INTAKE AIR SURGE TANK

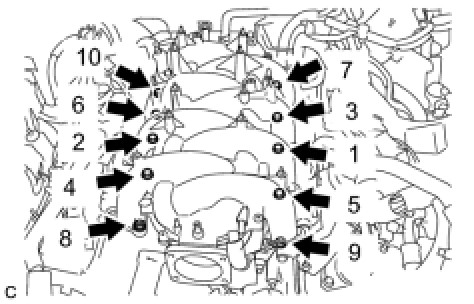

Temporarily install the intake air surge tank assembly with the 2 nuts and 8 bolts. Then tighten the 2 nuts and 8 bolts uniformly in the order shown in the illustration.

Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)

THROTTLE BODY

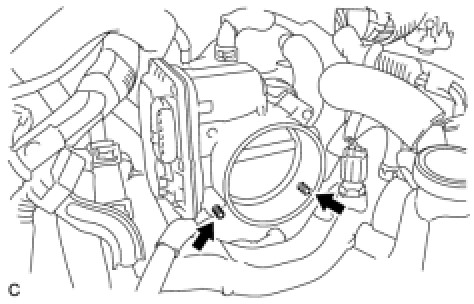

Set the throttle body assembly and new gasket with the 2 stud bolts.

Using a "TORX" socket E6, tighten the 2 stud bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)

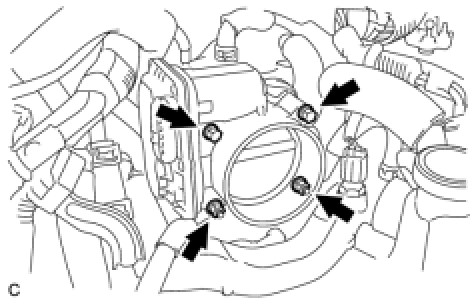

Install the 2 bolts and 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
