Torque Specifications

SPECIFICATIONS: 2UR-GSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

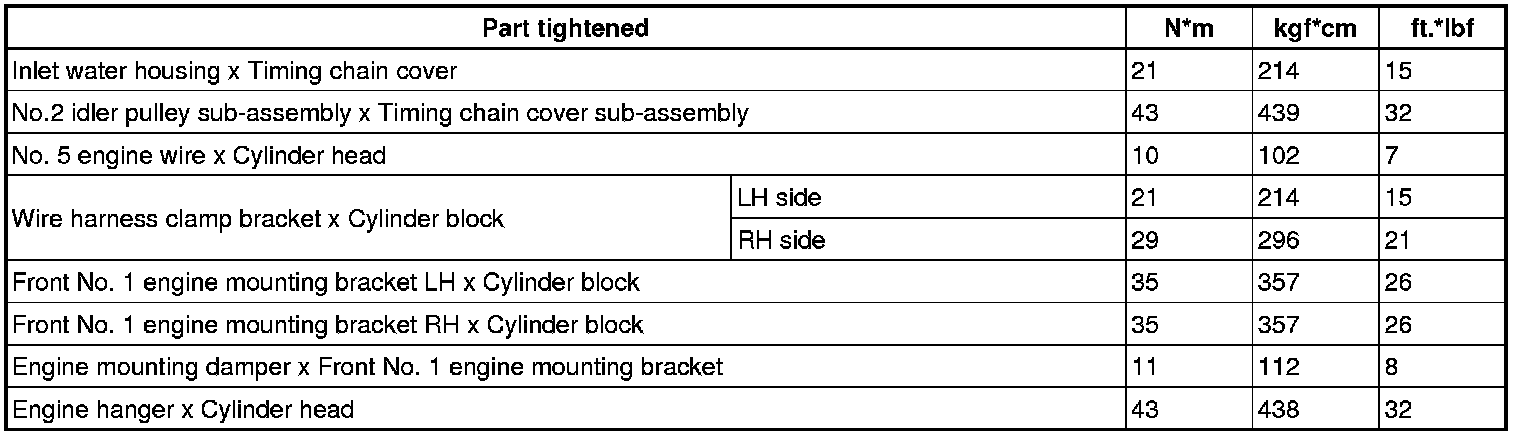

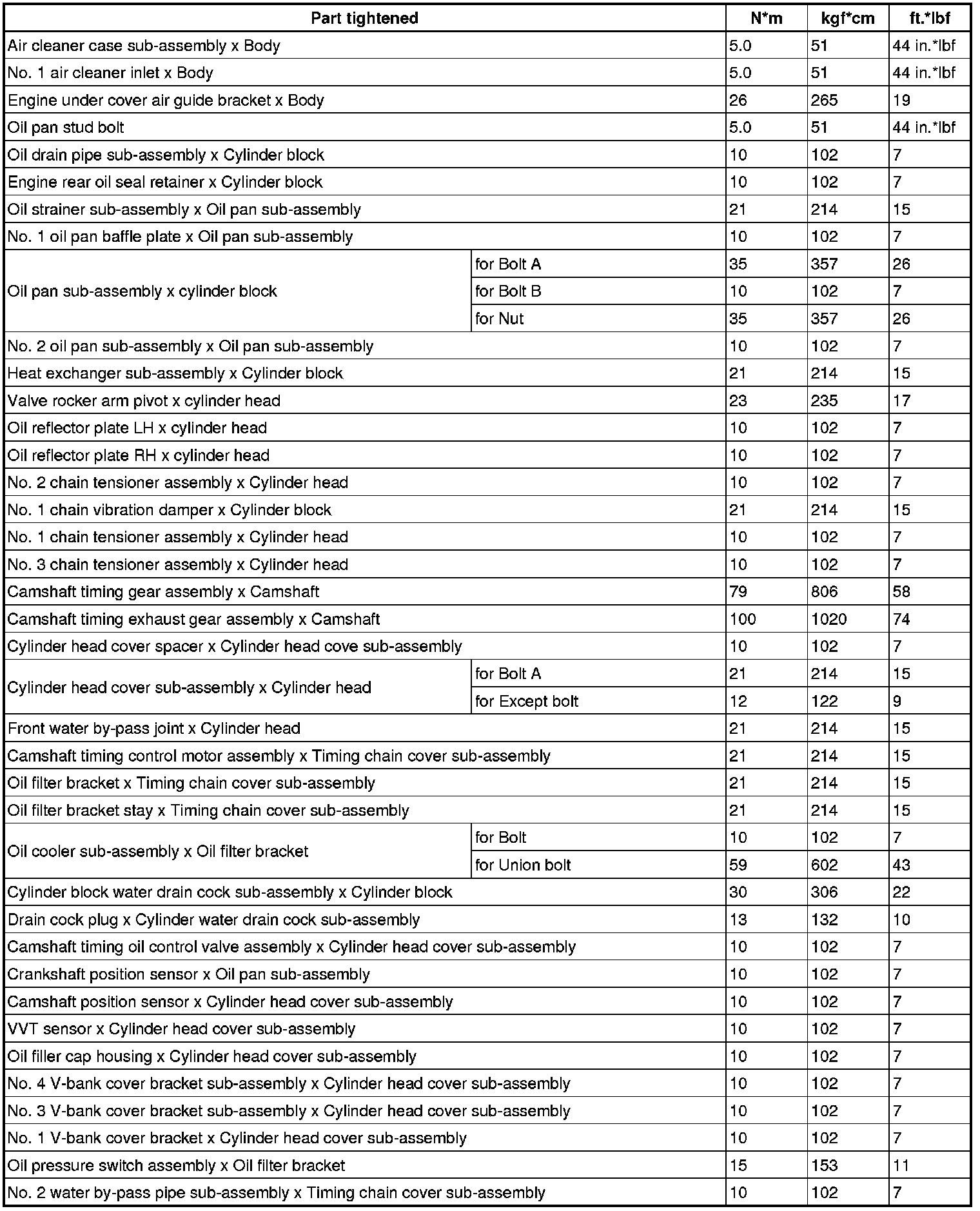

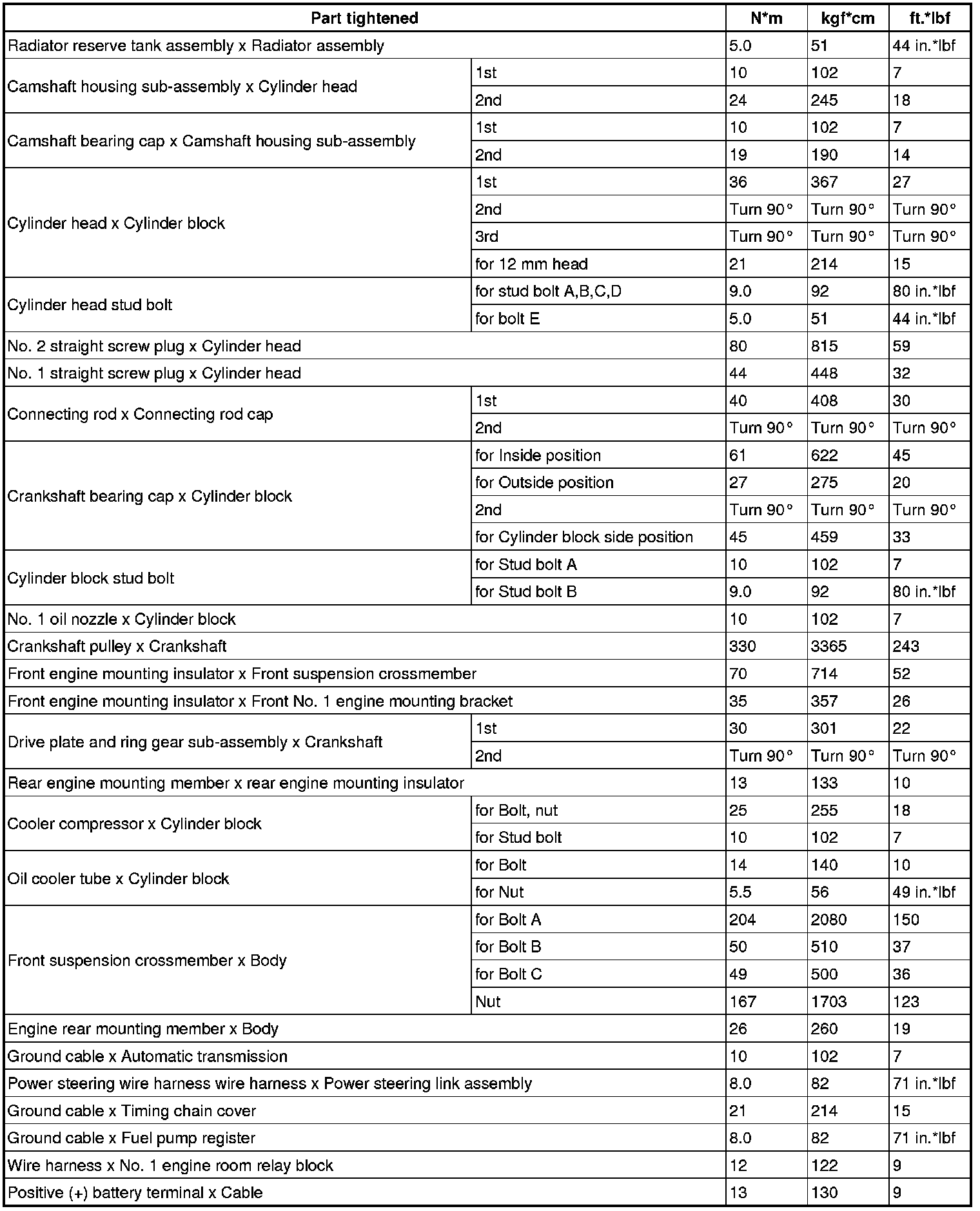

TORQUE SPECIFICATIONS

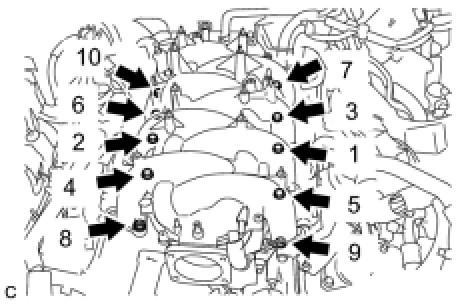

Intake air surge tank assembly 21 Nm (214 kgf-cm, 15 ft-lb)





Oil pump cover x Timing chain cover sub-assembly 10 Nm (102 kgf-cm, 7 ft lb)

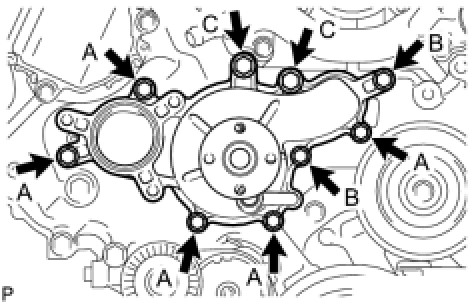

Water pump





Torque 20 Nm (204 kgf-cm, 15 ft-lb)
Torque 23 Nm (235 kgf-cm, 17 ft-lb)
Torque 47 Nm (479 kgf-cm, 35 ft-lb)

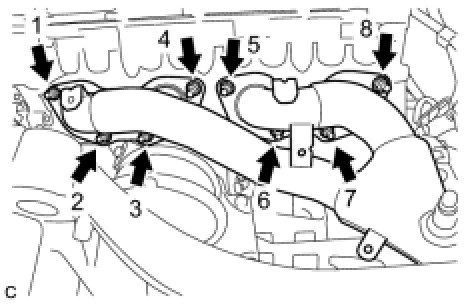

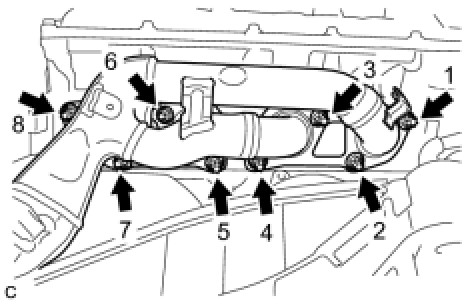

Exhaust manifold sub-assembly 21 Nm (214 kgf-cm, 15 ft lb)

LH:

RH:
