On-Vehicle Inspection

CHECK CRANK POSITION SENSOR OUTPUT VOLTAGE

Remove the V-bank cover sub-assembly. Refer to REMOVAL - Step 2 .
Disconnect the 2 fuel delivery pipe connectors.

Fig 1: Locating Fuel Delivery Pipe Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the 4 connectors with wire harness locks from the 2 injector drivers.

Fig 2: Identifying Injector Drivers & Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- To release each connector lock, push the claw downward ("Release" in the illustration) and move the lock lever ("Move" in the illustration).
- Perform this step to prevent the engine from starting.
Remove the engine room ECU cover See step 5.
Turn the engine switch on (IG).
HINT:

Do not start the engine.

Measure the voltage according to the value(s) in the table below.

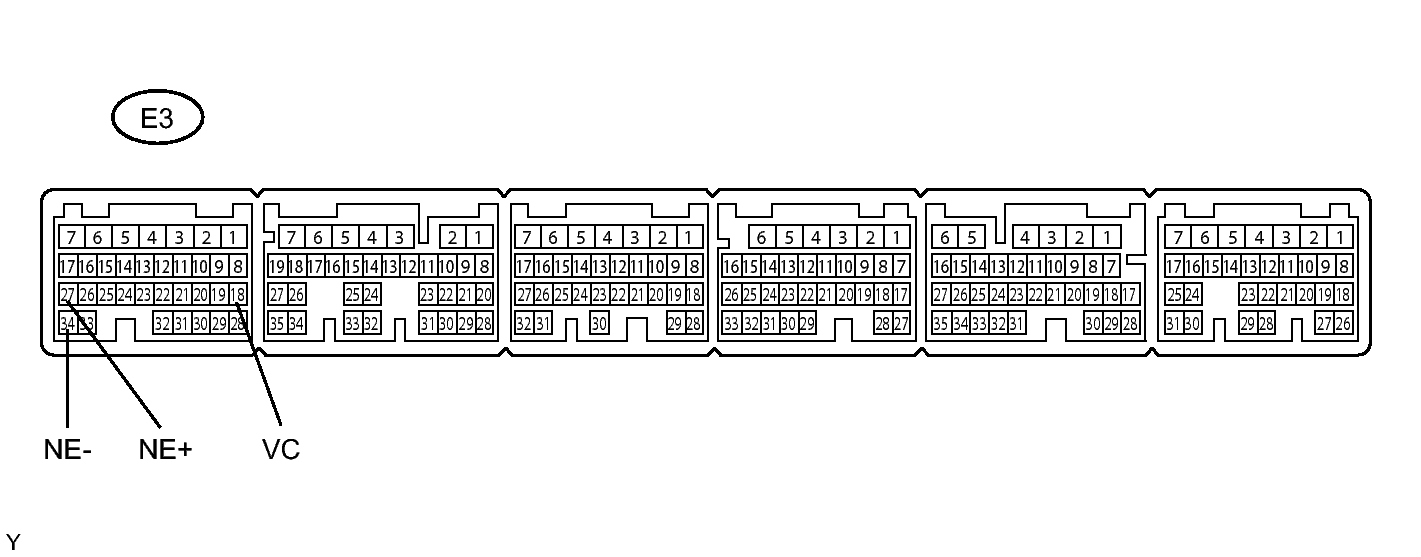

Fig 3: Identifying Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Voltage

Tester Connection	Switch Condition	Specified Condition
E3-18 (VC) - E3-34 (NE-)	Engine switch on (IG)	5 V

While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range shown in the table below.

Standard Voltage

Tester Connection	Switch Condition	Specified Condition
E3-27 (NE+) - E3-34 (NE-)	Engine switch on (IG)	3.75 to 4.50 V (Voltage (Hi)) 0.50 to 1.25 V (Voltage (Lo))
