Steering Column Assembly: Reassembly: Reassembly

  1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU  See step  1
  2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY
    1. Temporarily install the steering lock actuator assembly to the steering column assembly with 2 new tapered-head bolts.

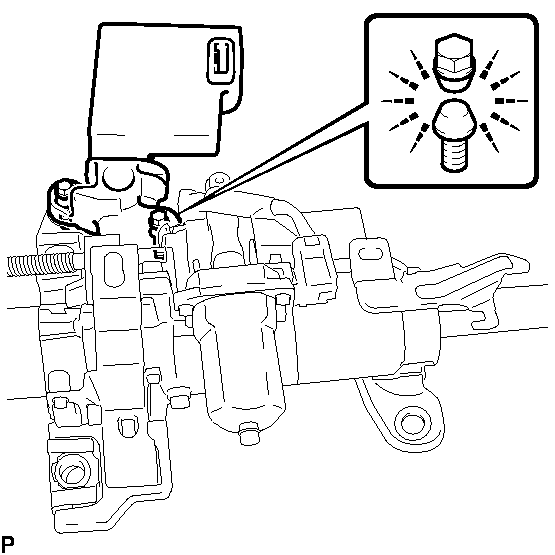

      Fig 1: Identifying Steering Lock Actuator Assembly
      GTY114172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 2 tapered-head bolts until the bolt heads break off.
