Reverse Shift-linked Function of Power Mirrors does not Operate: Wiring Diagram

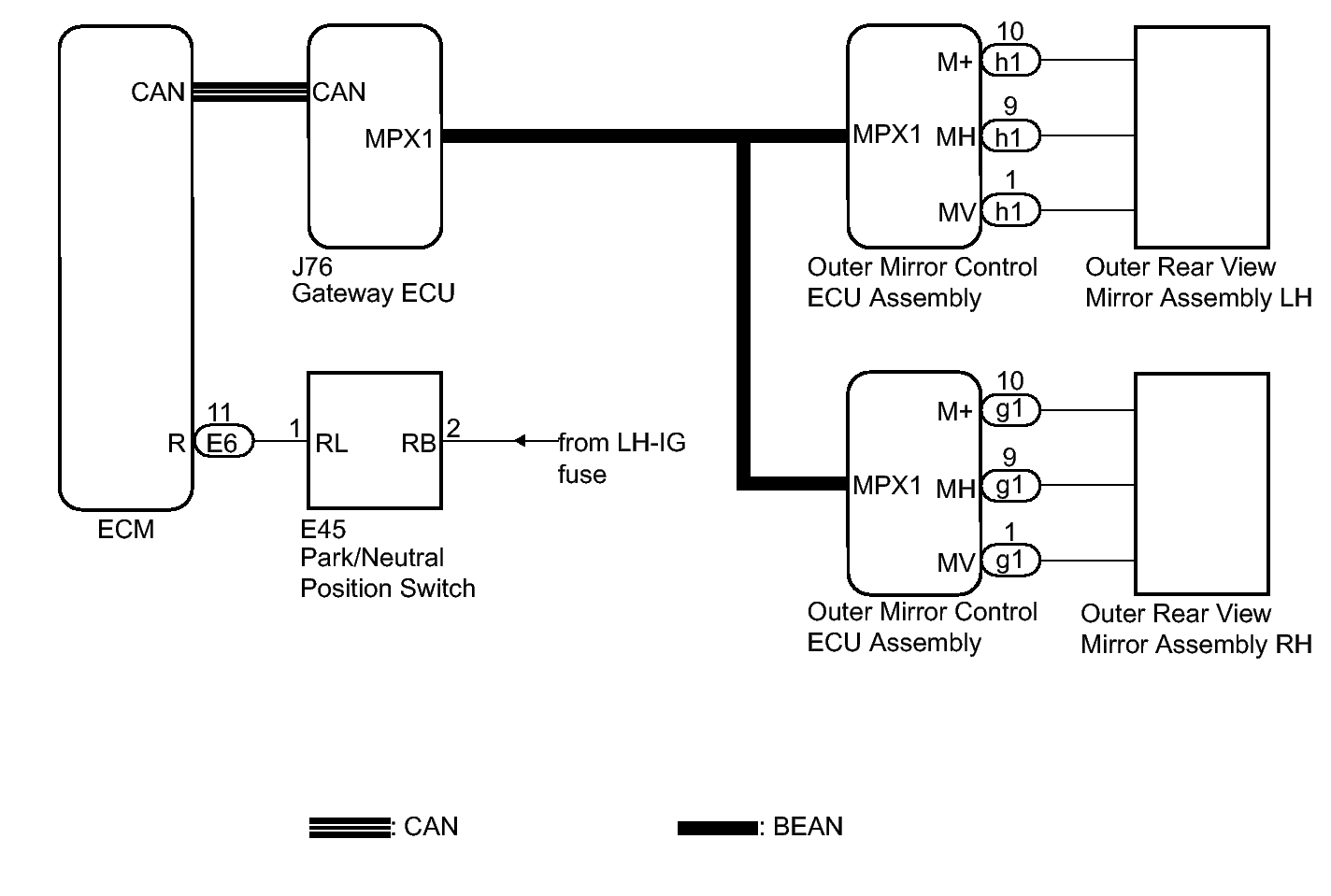

Fig 1: Outer Rear View Mirror Assembly (LH & RH), Park/Neutral Position Switch, & Outer Mirror Control ECU Assembly - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
