Front Passenger Side Power Window Switch: Removal: Removal

REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
1. Using a molding remover, disengage the 3 claws and 2 clips.

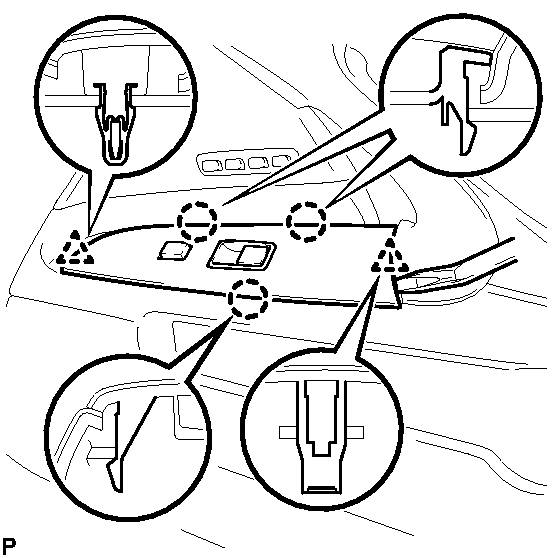

  Fig 1: Identifying Claws And Clips Of Power Window Regulator Switch Assembly With Front Door Armrest Base Pane
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the power window regulator switch assembly with front door armrest base panel.
REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY
1. Disengage the 2 claws and remove the power window regulator switch assembly.

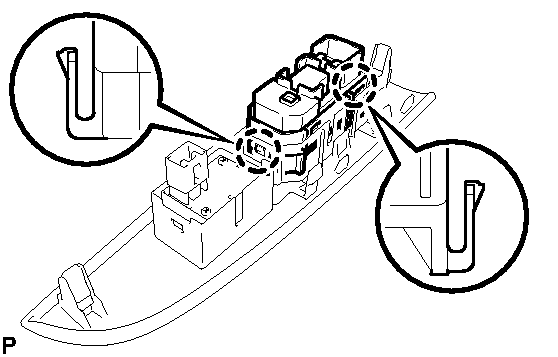

  Fig 2: Identifying Claws Of Power Window Regulator Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
