Skid Control Ecu: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT DOOR SCUFF PLATE RH . Refer to REMOVAL - Step 30
REMOVE FRONT DOOR OPENING TRIM COVER RH . Refer to REMOVAL - Step 31
REMOVE SIDE INSTRUMENT PANEL RH . Refer to REMOVAL - Step 32
REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 33
REMOVE SKID CONTROL ECU
1. Disconnect the 3 connectors from the skid control ECU.

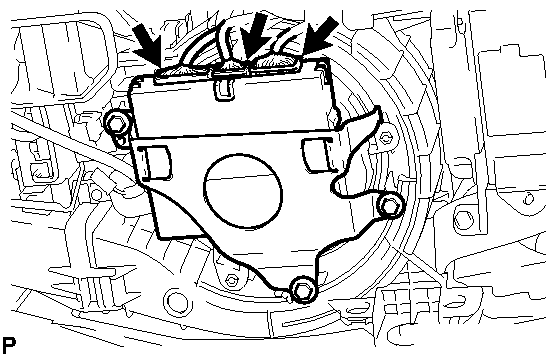

  Fig 1: Connecting 3 Connectors To Skid Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 screws and skid control ECU.

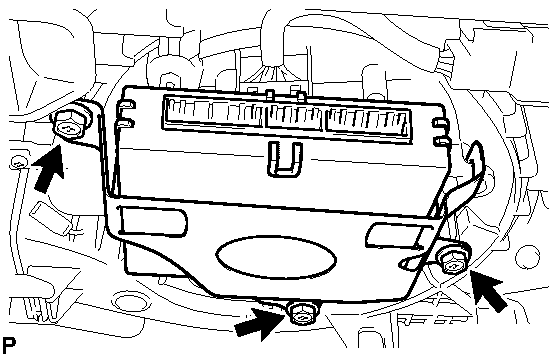

  Fig 2: Removing 3 Screws And Skid Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
