Engine Switch: Installation: Installation

  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws to install the switch.

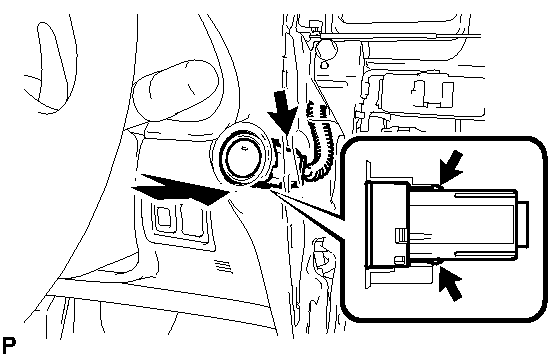

      Fig 1: Identifying Engine Switch
      GTY146136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the switch connector.
  2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to INSTALLATION - Step 4
  3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to INSTALLATION - Step 8
  4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 36
  5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 37
  6. INSTALL CONSOLE BOX  . Refer to INSTALLATION - Step 1
  7. INSTALL CONSOLE BOX REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 2
  8. INSTALL REAR ASH RECEPTACLE ASSEMBLY  . Refer to INSTALLATION - Step 3
  9. INSTALL FRONT ASH RECEPTACLE ASSEMBLY  . Refer to INSTALLATION - Step 41
  10. INSTALL CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 42
  11. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 43
  12. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 44
  13. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
