System Diagram

FUEL FLOW DIAGRAM

Fig 1: Fuel Flow Diagram (For Direct Injection Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Flow Diagram (For Port Injection Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL CONTROL DIAGRAM

Fig 3: Electrical Control Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

Fig 4: Fuel System Wiring Diagram - High Pressure (Direct Injection) Side (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Fuel System Wiring Diagram - High Pressure (Direct Injection) Side (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Fuel System Wiring Diagram - High Pressure (Direct Injection) Side (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

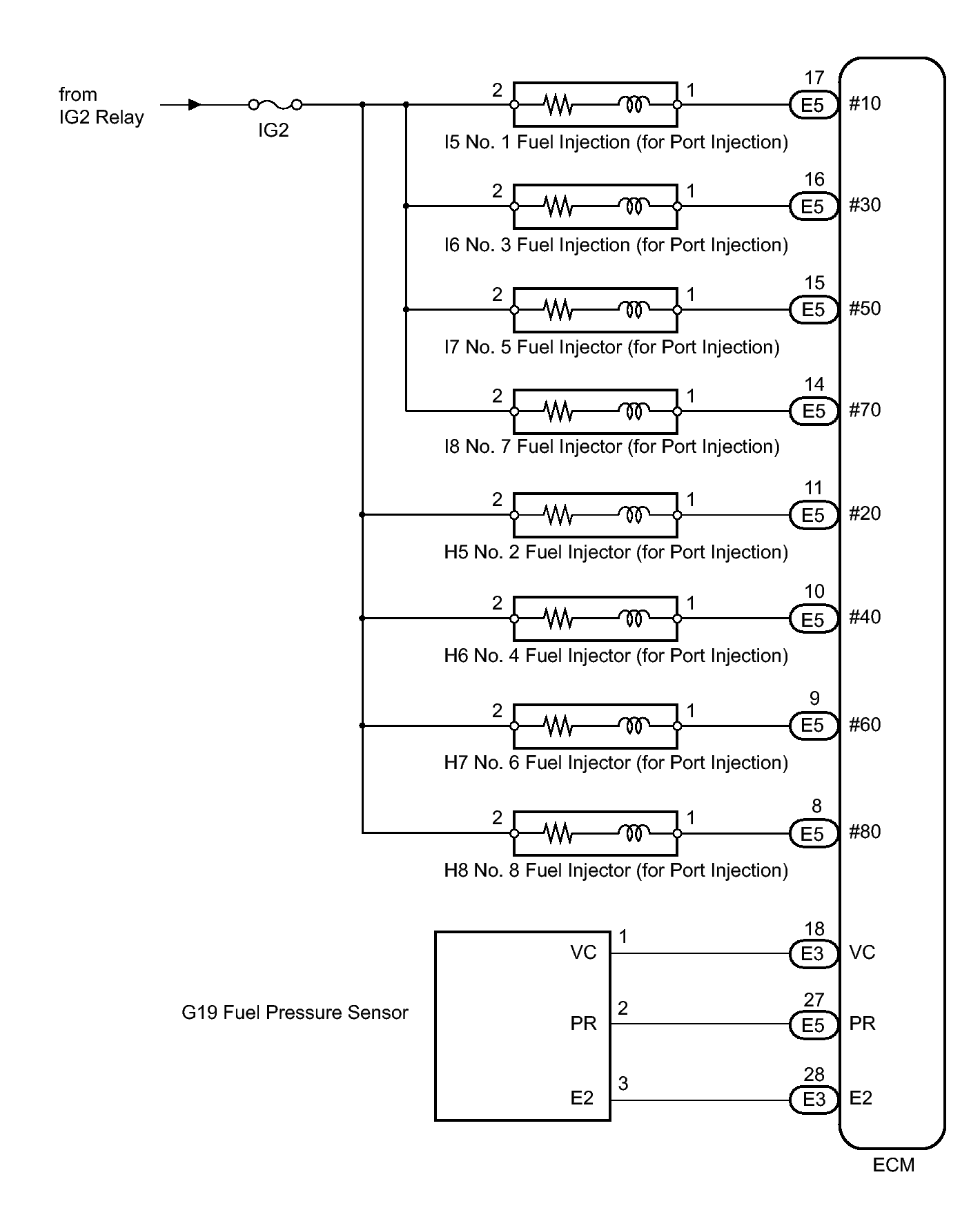

FUEL PRESSURE SENSOR AND PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

Fig 7: Fuel System Wiring Diagram - Fuel Pressure Sensor And Port Injection Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

Fig 8: Fuel System Wiring Diagram - Low Pressure Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

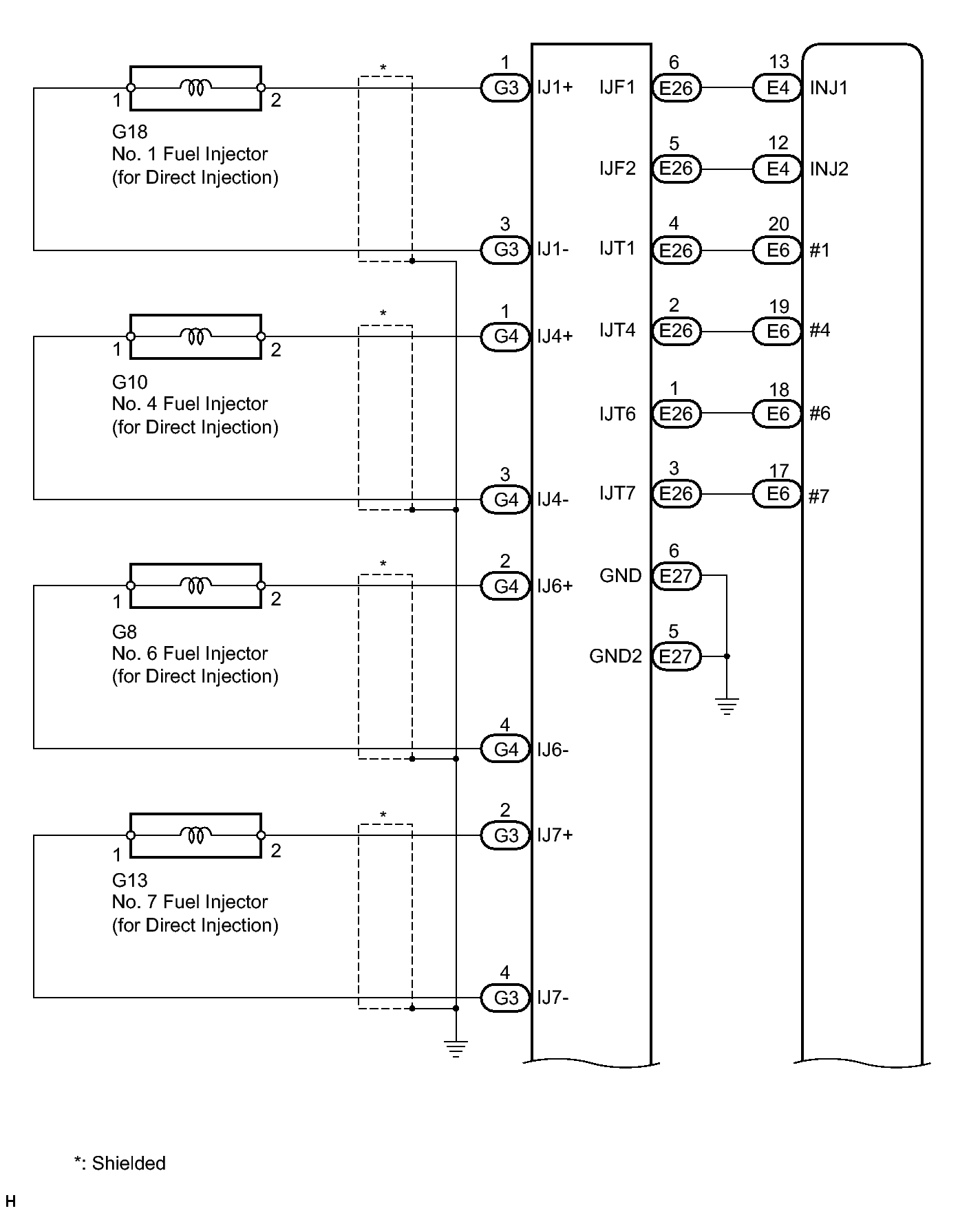

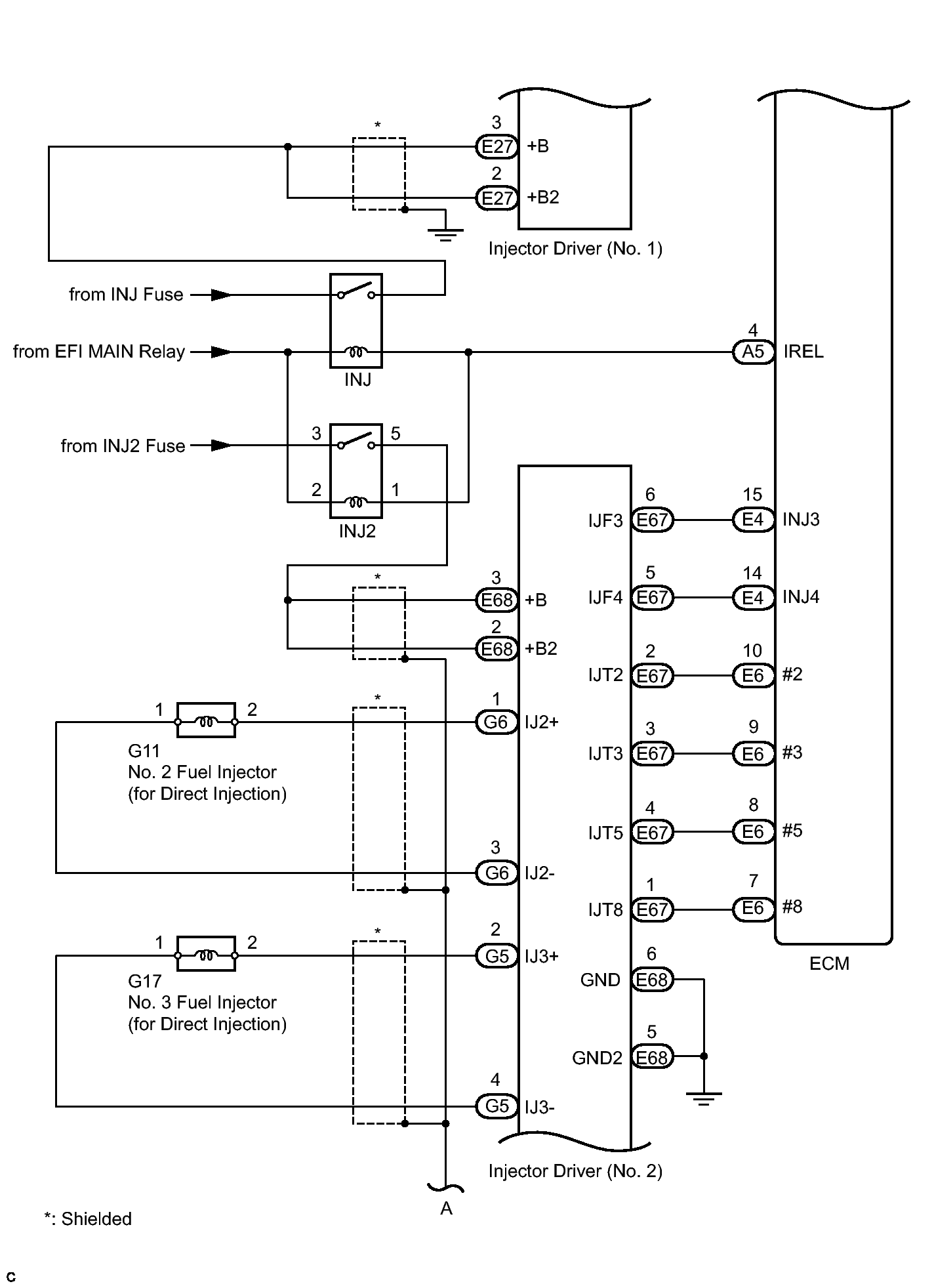

INJECTOR DRIVER WIRING DIAGRAM

Fig 9: Injector Driver Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
