System Diagram

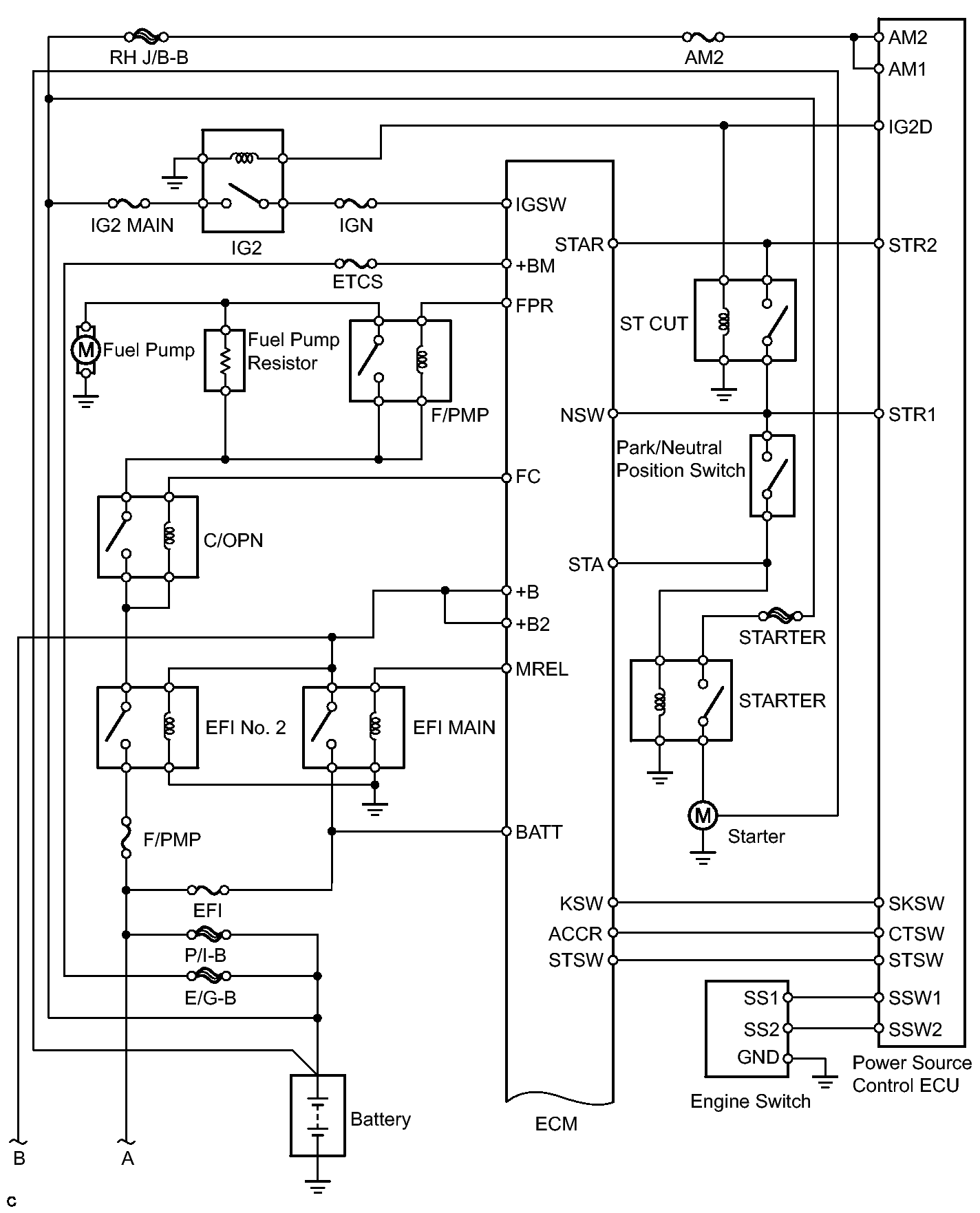

Fig 1: SFI System Diagram (1 Of 7)
GTY148731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

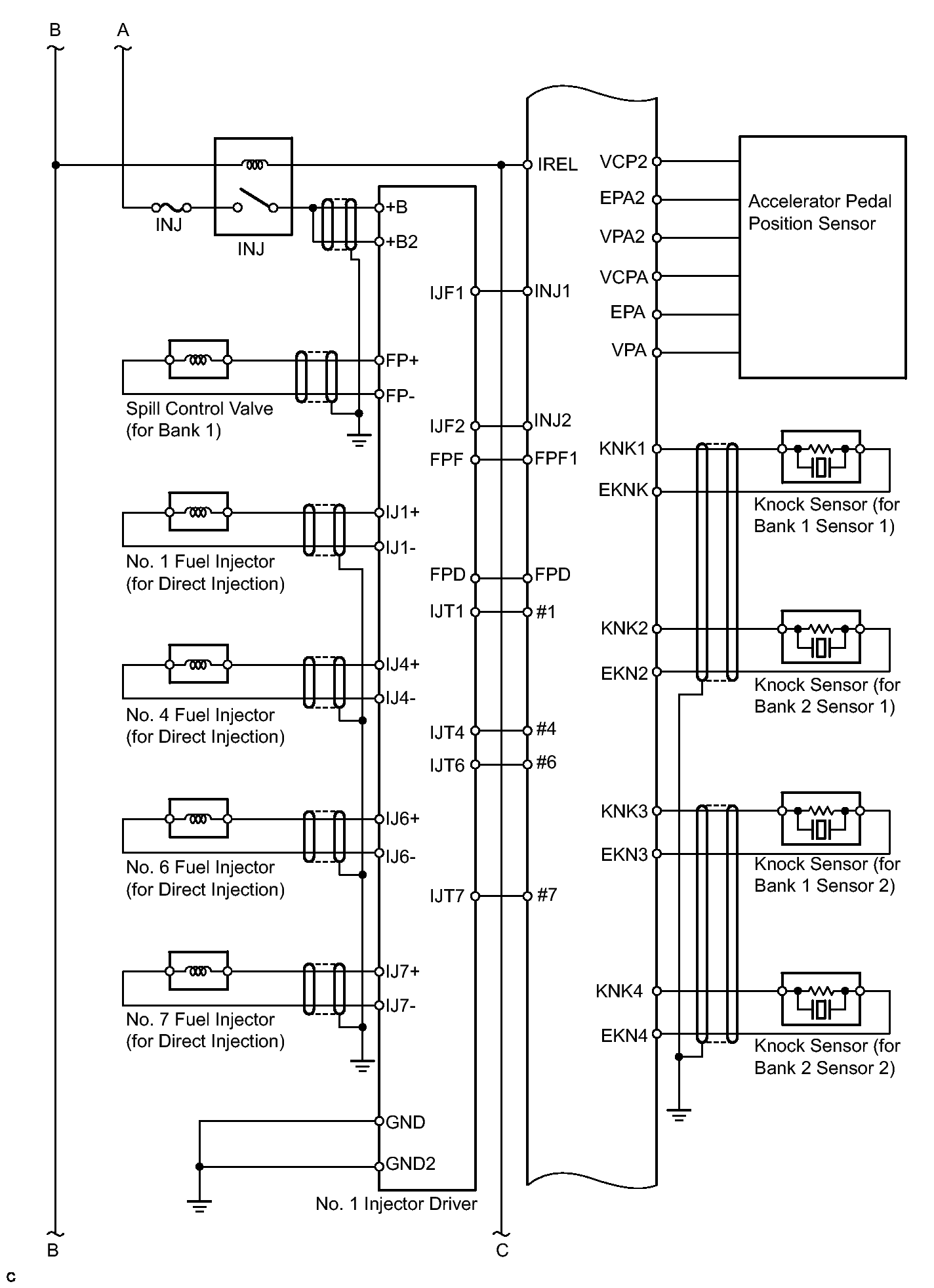

Fig 2: SFI System Diagram (2 Of 7)
GTY140847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

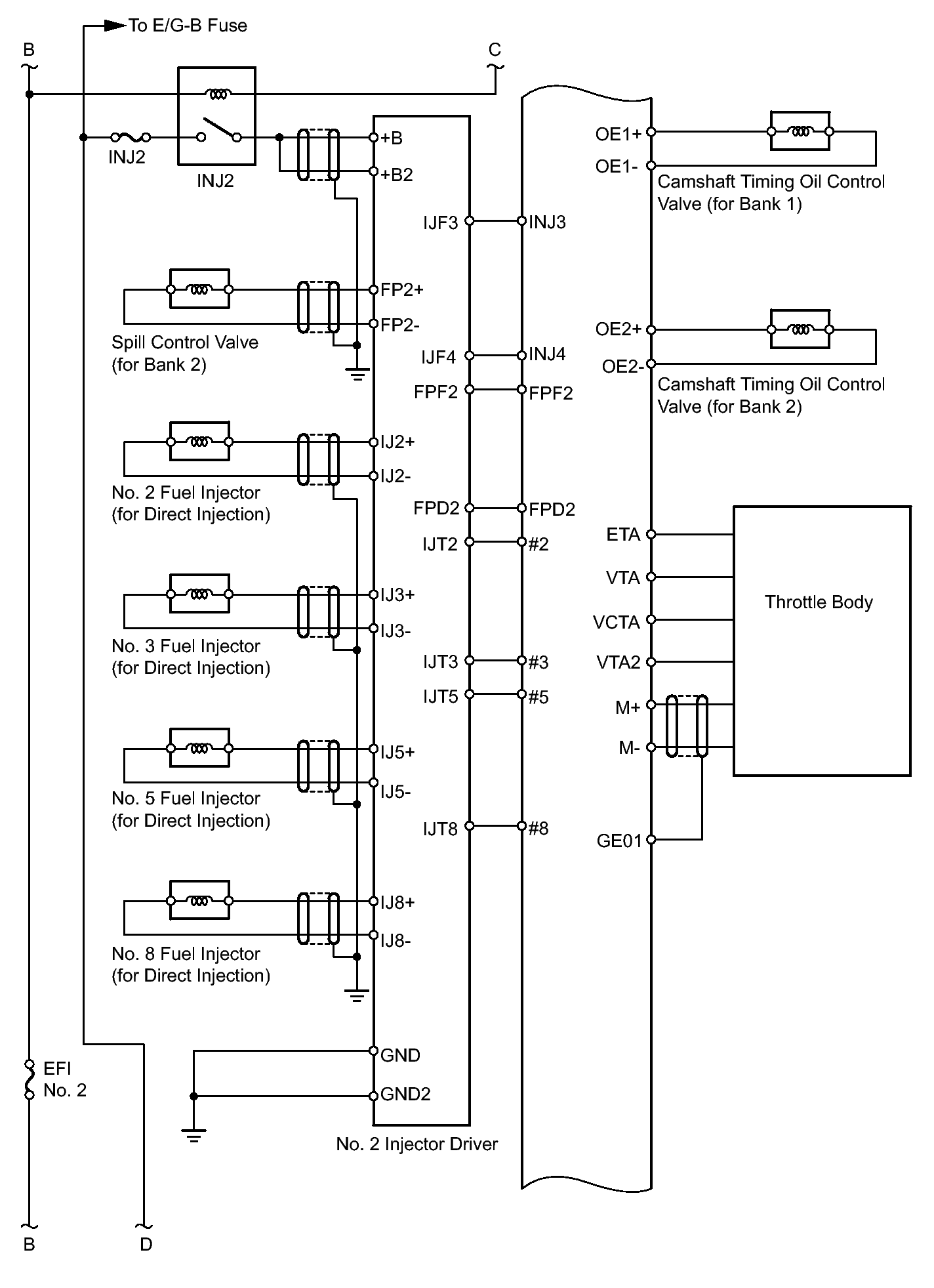

Fig 3: SFI System Diagram (3 Of 7)
GTY133707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

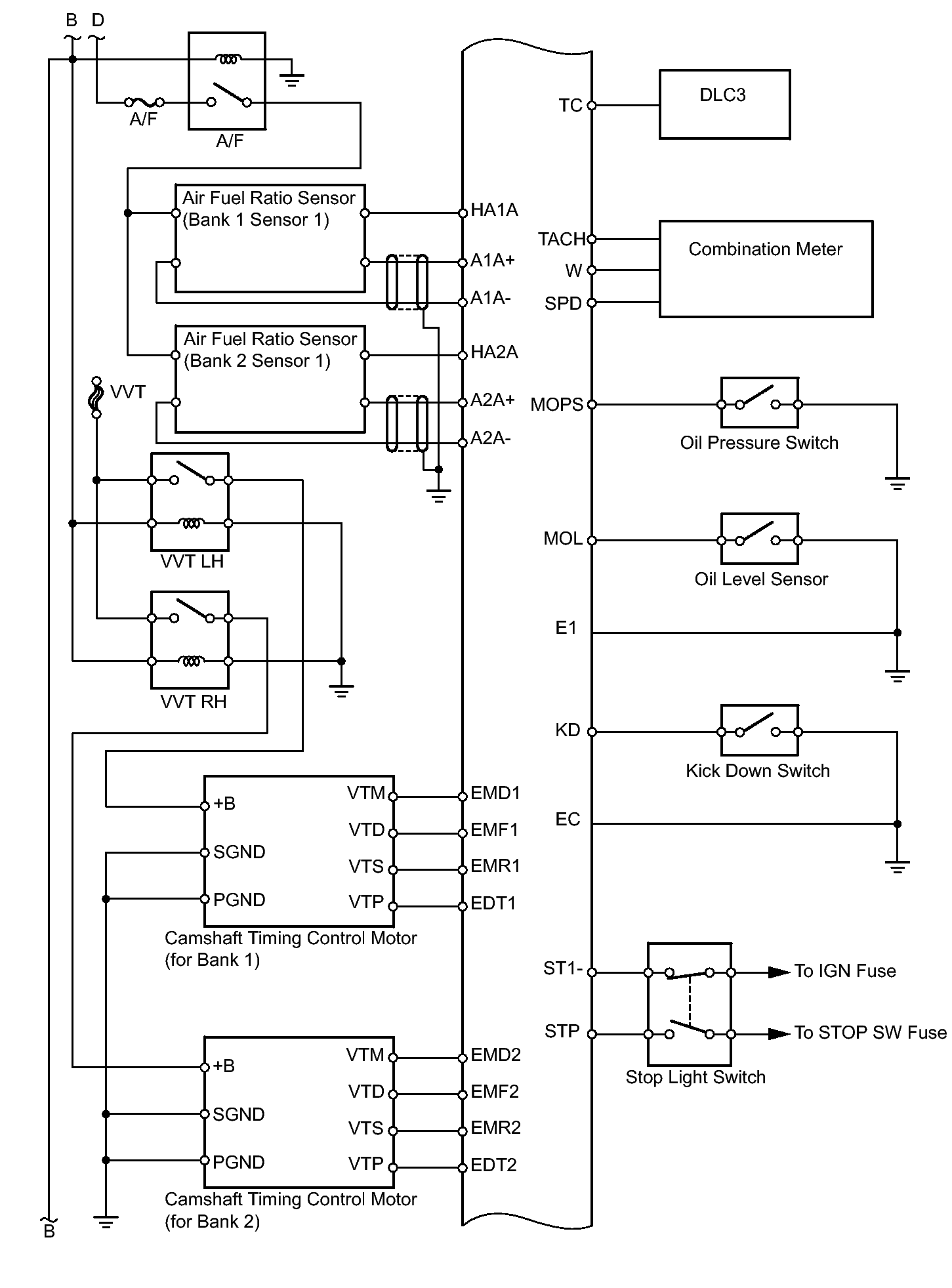

Fig 4: SFI System Diagram (4 Of 7)
GTY123799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

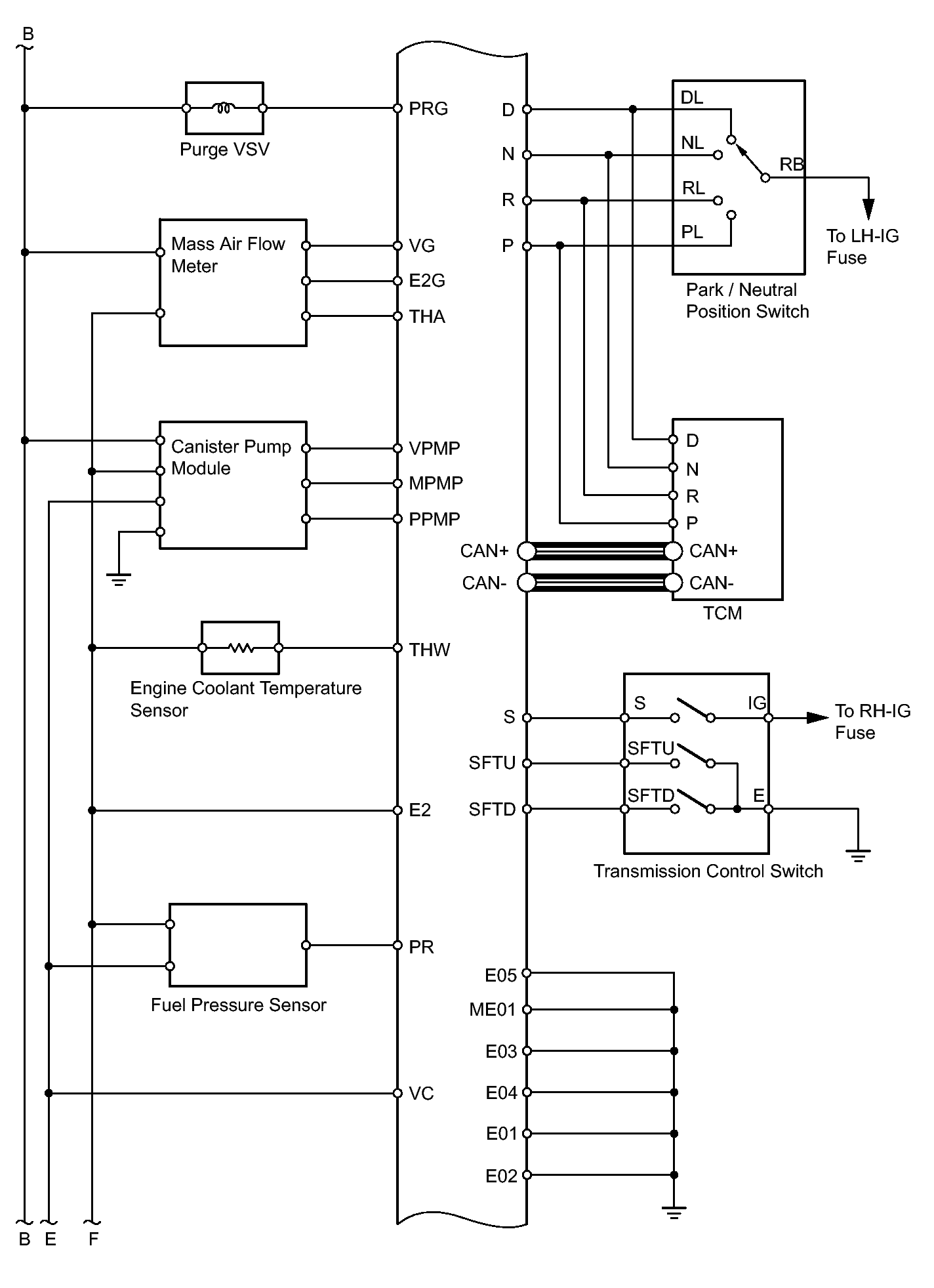

Fig 5: SFI System Diagram (5 Of 7)
GTY138118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

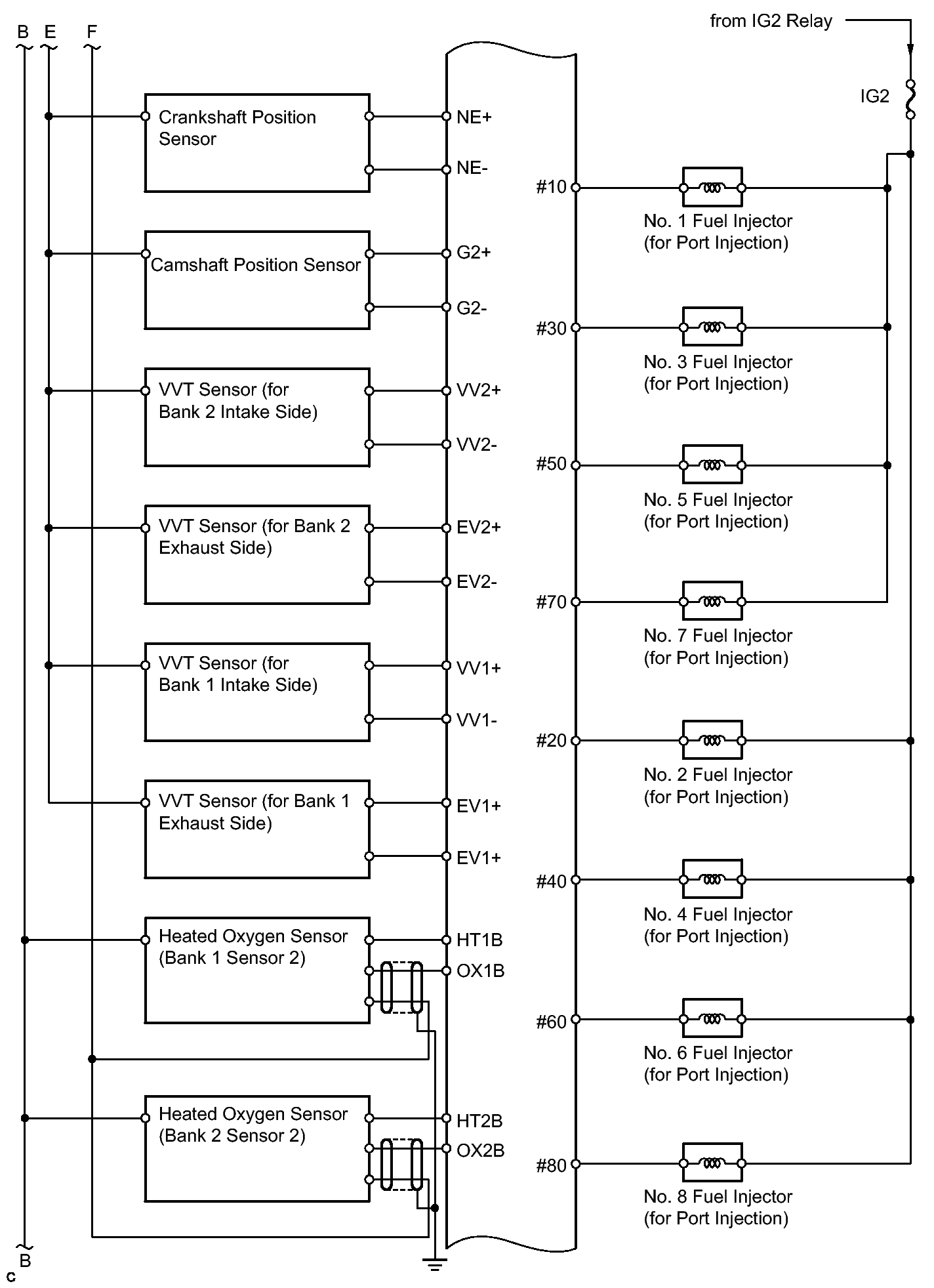

Fig 6: SFI System Diagram (6 Of 7)
GTY138197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

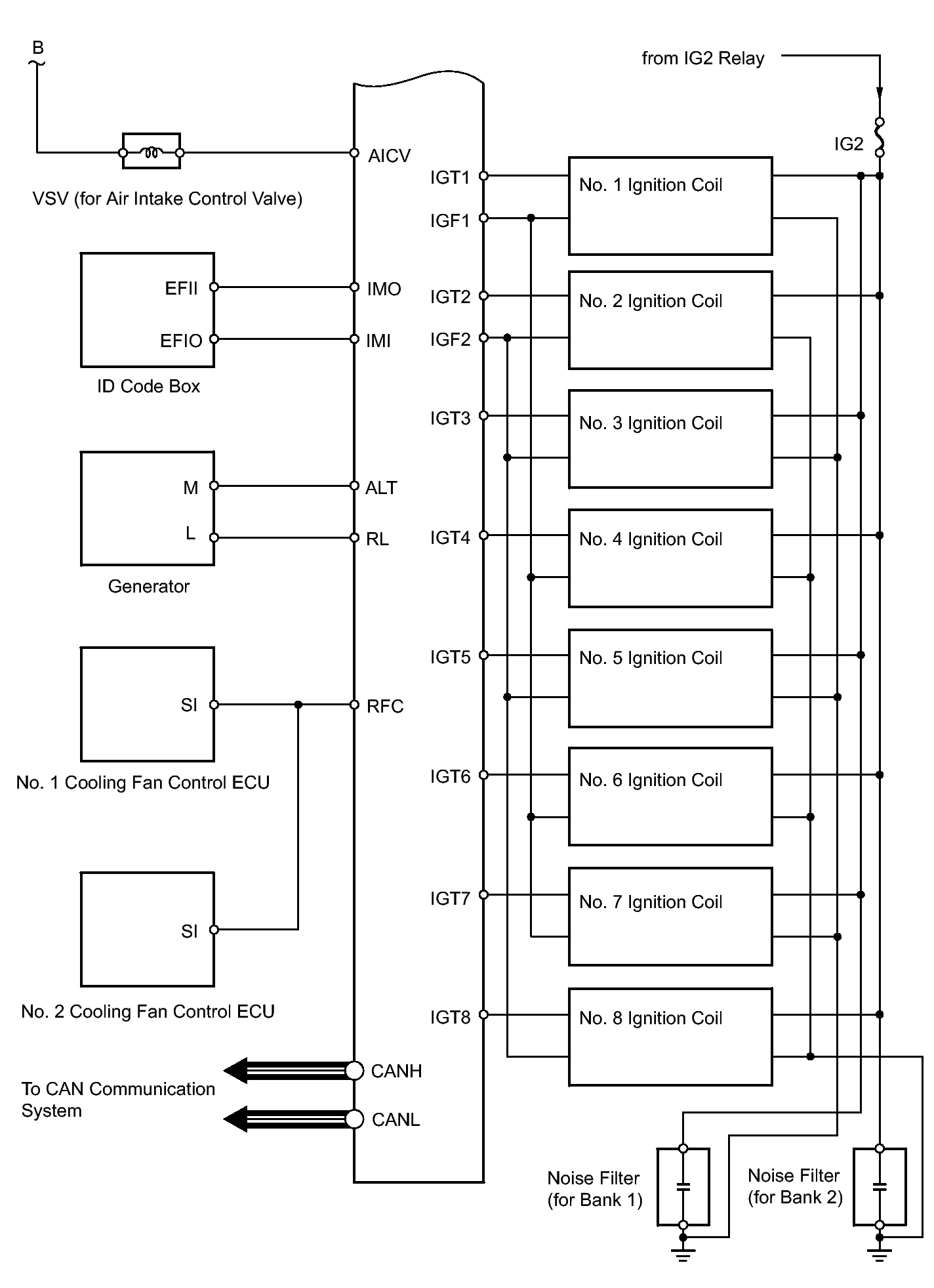

Fig 7: SFI System Diagram (7 Of 7)
GTY133436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
