Climate Control Seat and Seat Heater: Notes

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

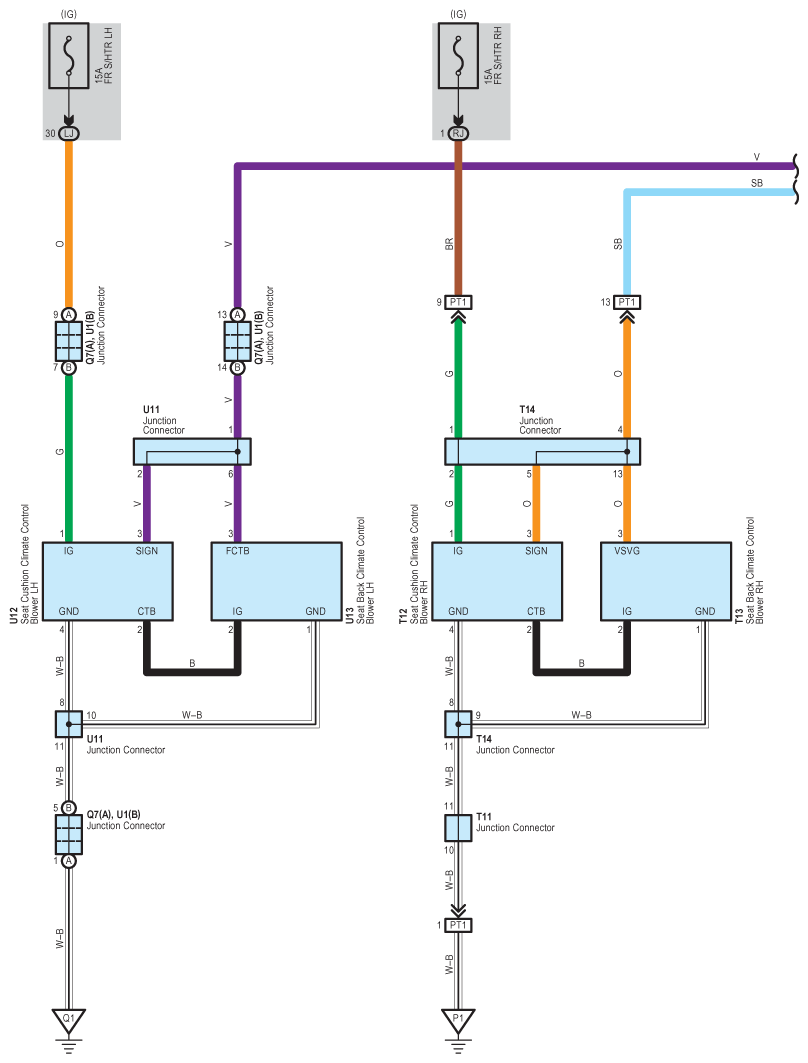

Fig 1: Climate Control Seat And Seat Heater - Circuit Diagram (1 Of 4)
G07592417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

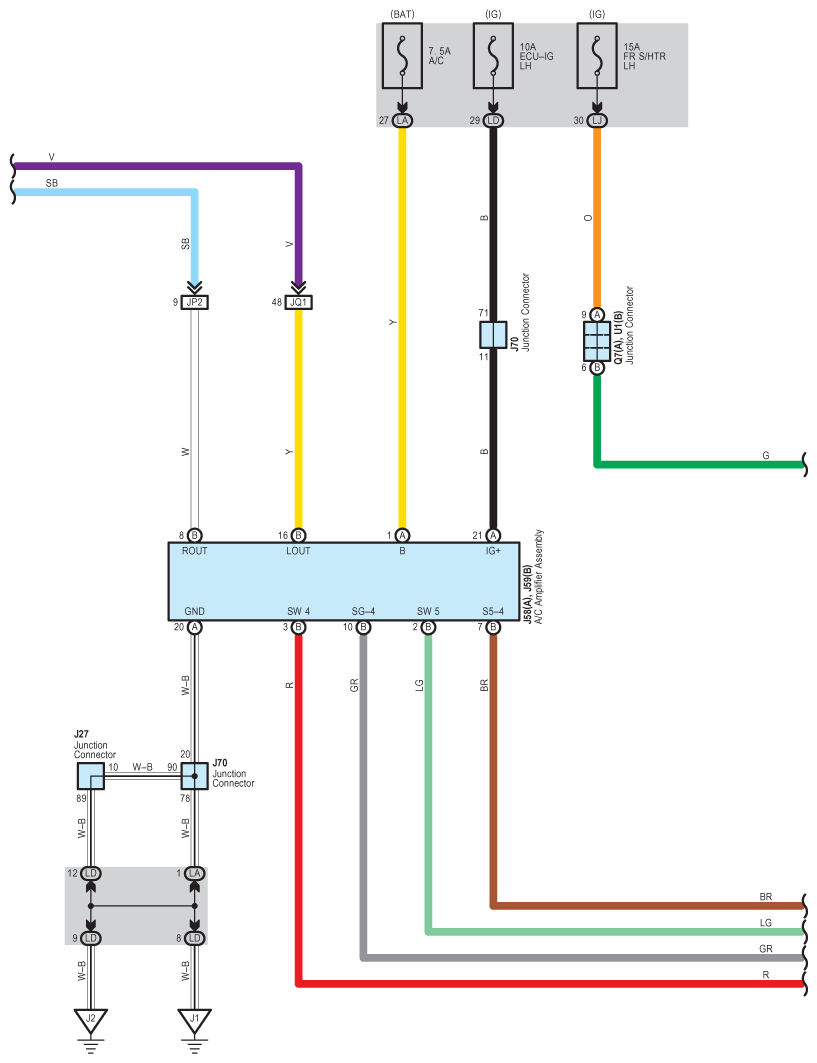

Fig 2: Climate Control Seat And Seat Heater - Circuit Diagram (2 Of 4)
G07592418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

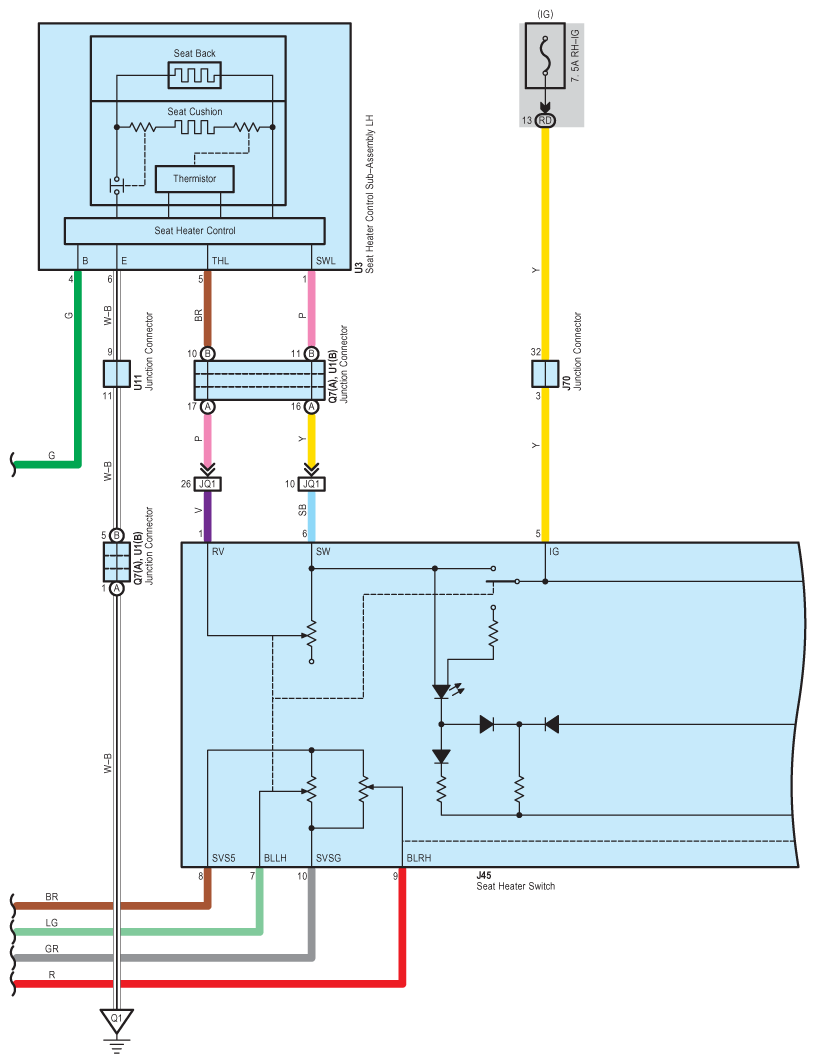

Fig 3: Climate Control Seat And Seat Heater - Circuit Diagram (3 Of 4)
G07592419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

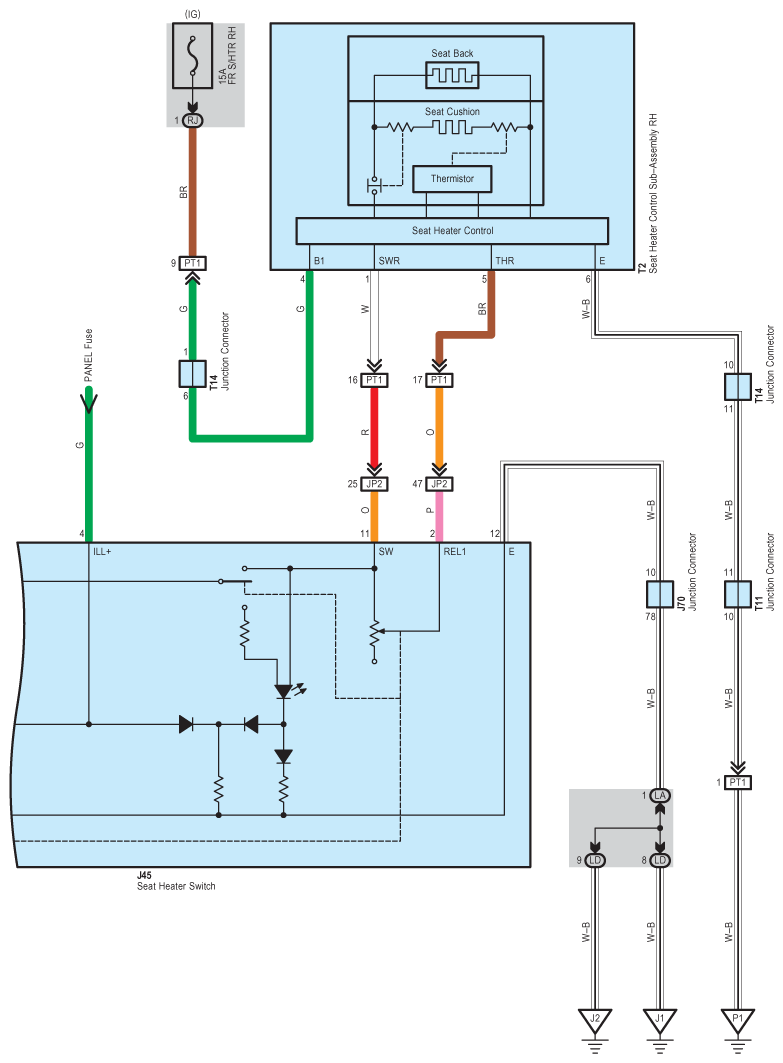

Fig 4: Climate Control Seat And Seat Heater - Circuit Diagram (4 Of 4)
G07592420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
