Parking Assist (Intuitive Parking Assist): Notes

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

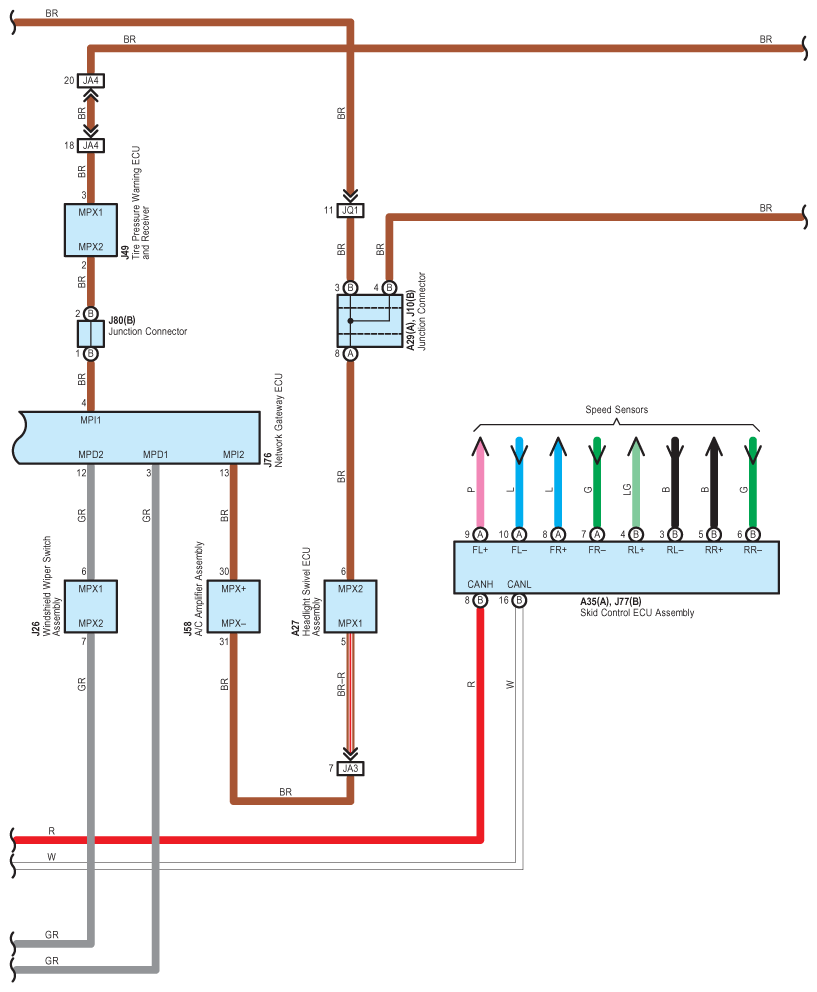

Fig 1: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

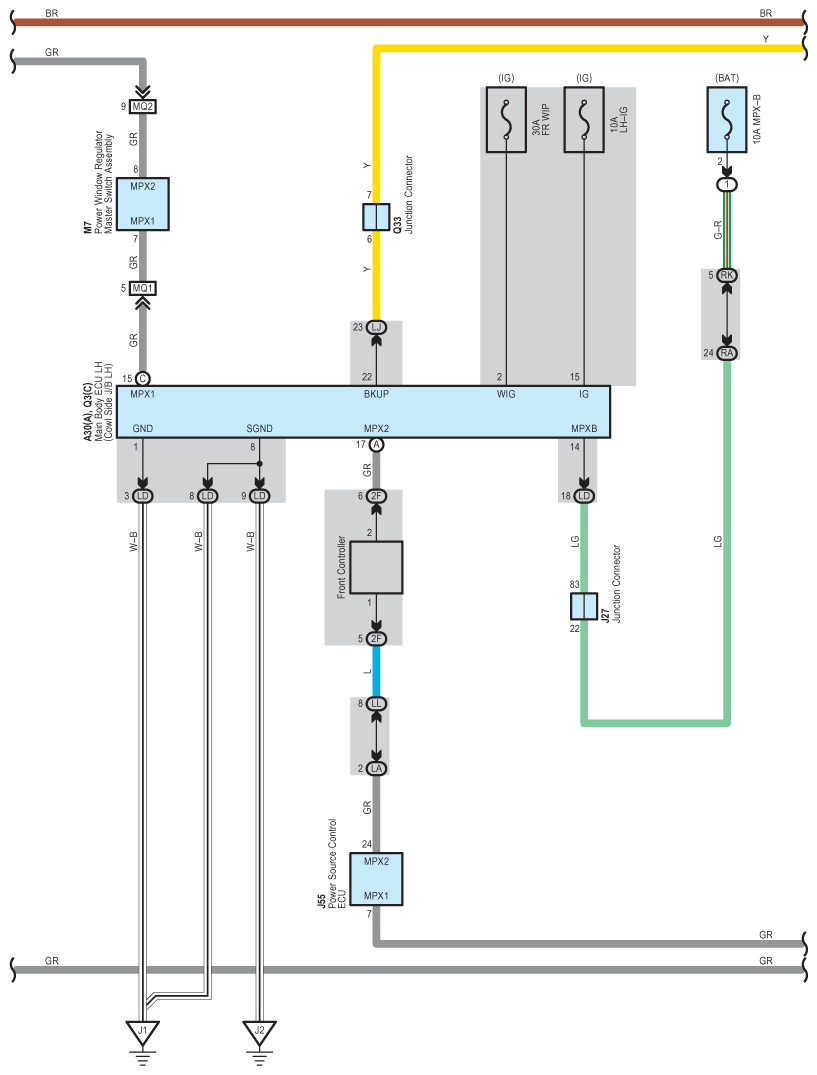

Fig 2: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

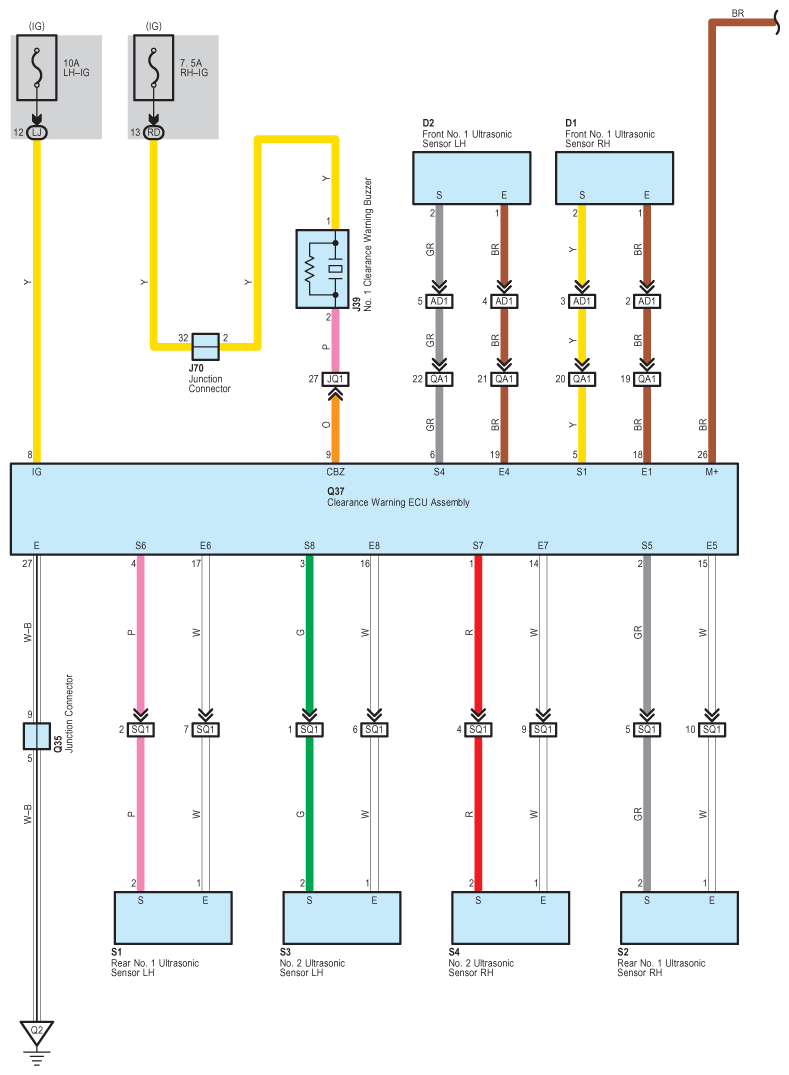

Fig 3: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

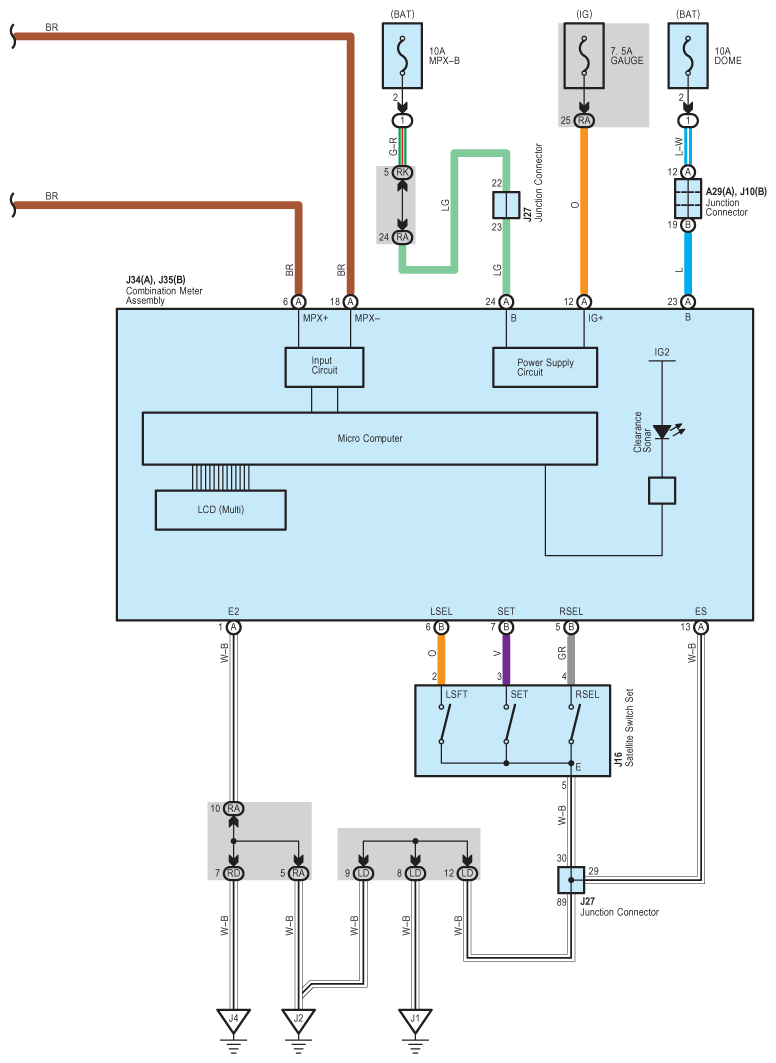

Fig 4: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

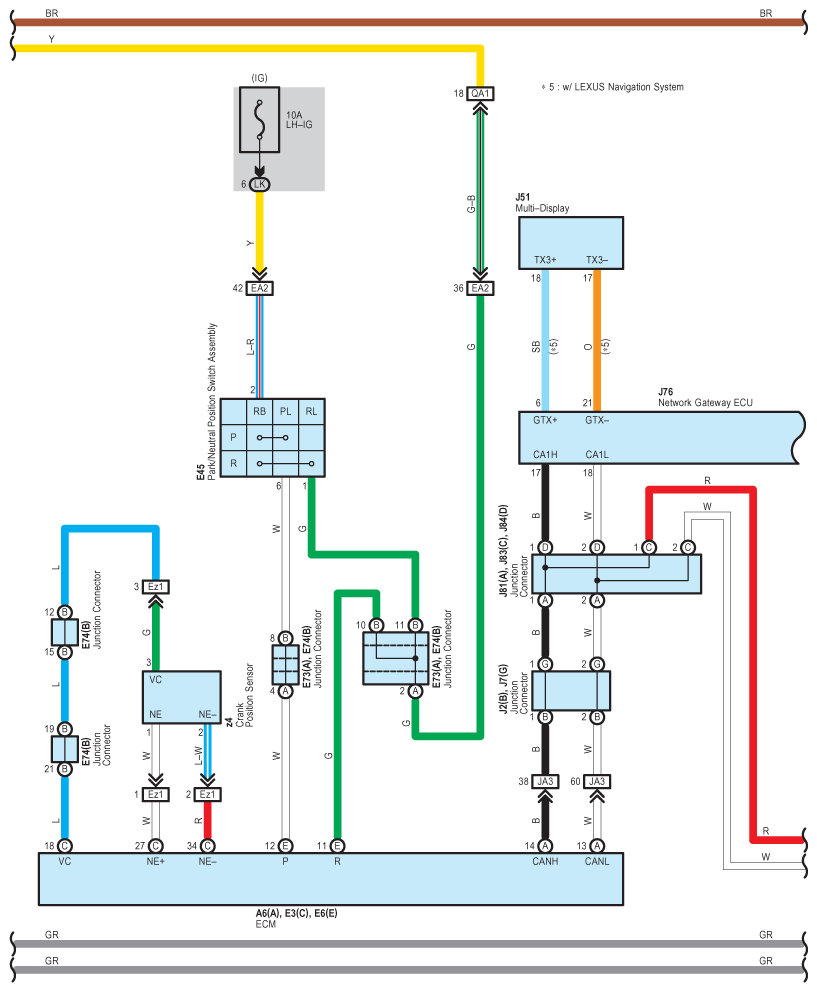

Fig 5: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (5 Of 7)

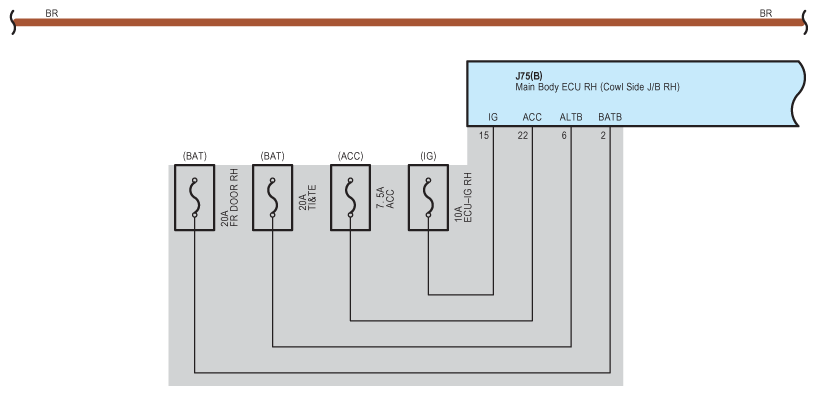

Fig 6: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (6 Of 7)

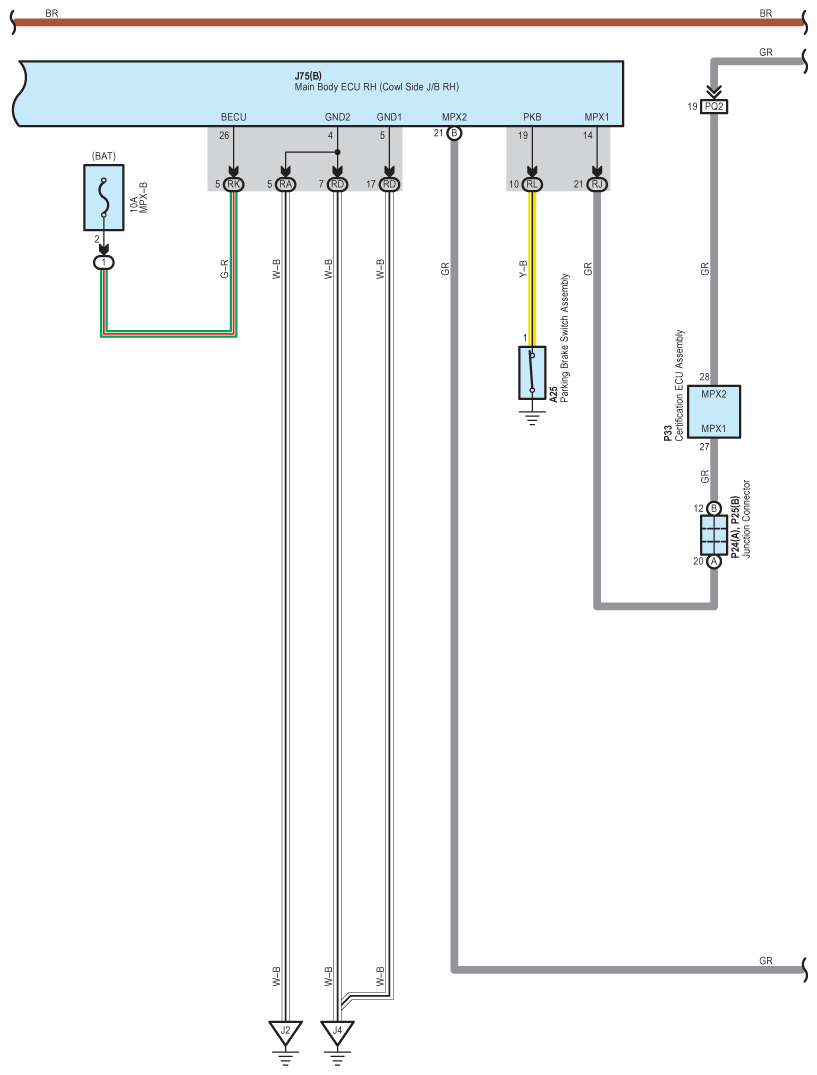

Fig 7: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (7 Of 7)
