Automatic Transmission Assembly: Components: Illustration

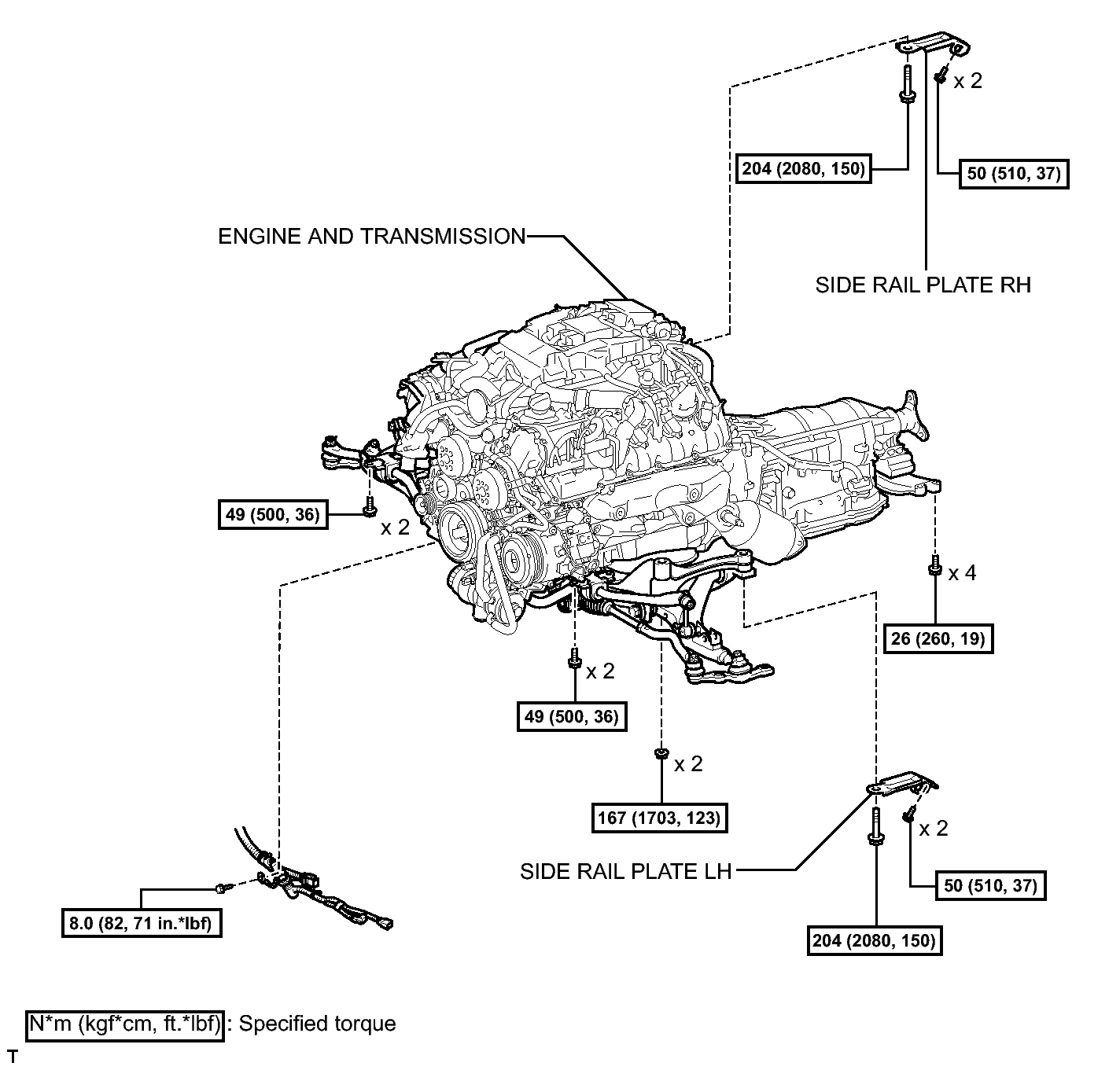

Fig 1: Identifying Automatic Transmission Assembly Replacement Components (1 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Automatic Transmission Assembly Replacement Components (2 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Automatic Transmission Assembly Replacement Components (3 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
