Valve Body Assembly: Disassembly: Disassembly

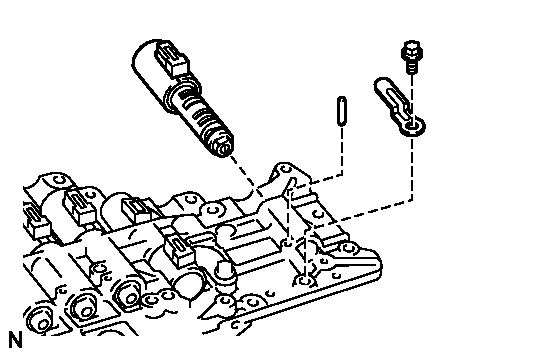

REMOVE SHIFT SOLENOID VALVE SL2
1. Remove the bolt, solenoid lock plate and straight pin.

  Fig 1: Identifying Solenoid Lock Plate And Straight Pin With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the solenoid valve.
REMOVE SHIFT SOLENOID VALVE SL
1. Remove the bolt and solenoid valve.

  Fig 2: Identifying Solenoid Valve And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

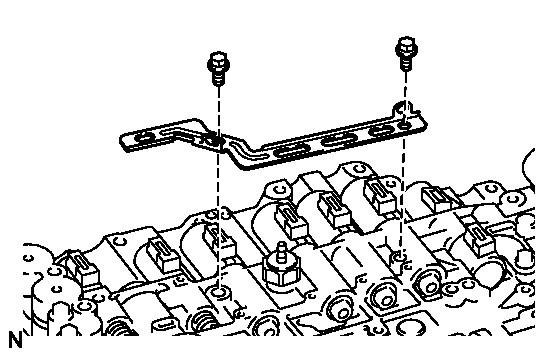

REMOVE SOLENOID LOCK PLATE
1. Remove the 2 bolts and plate.

  Fig 3: Identifying Solenoid Lock Plate And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

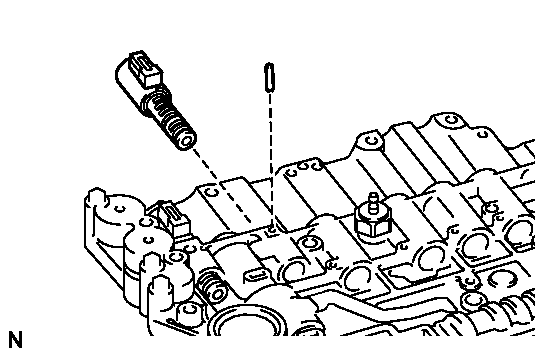

REMOVE SHIFT SOLENOID VALVE SL3
1. Remove the straight pin and solenoid valve.

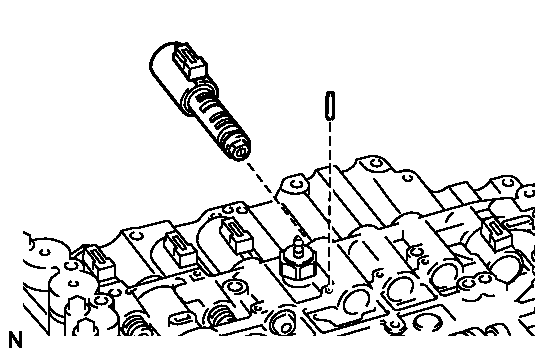

  Fig 4: Identifying Shift Solenoid Valve SL3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL4
1. Remove the straight pin and solenoid valve.

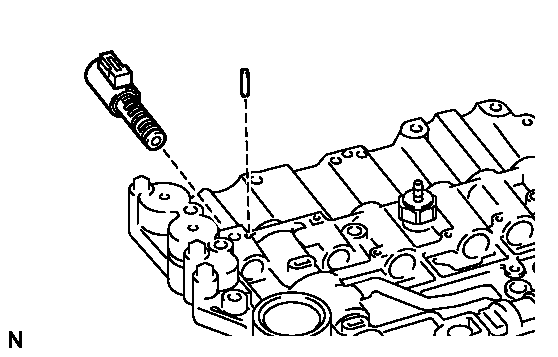

  Fig 5: Identifying Shift Solenoid Valve SL4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL5
1. Remove the straight pin and solenoid valve.

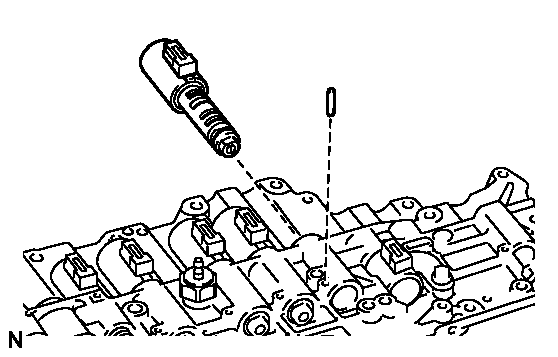

  Fig 6: Identifying Shift Solenoid Valve SL5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL1
1. Remove the straight pin and solenoid valve.

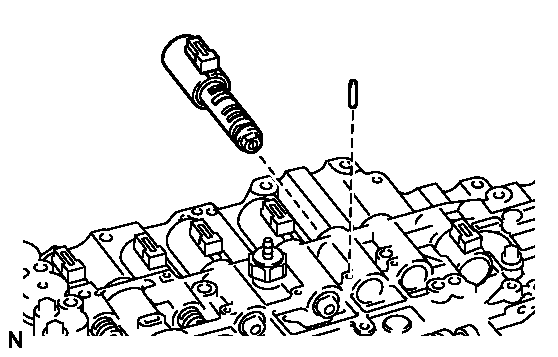

  Fig 7: Identifying Shift Solenoid Valve SL1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SLU
1. Remove the straight pin and solenoid valve.

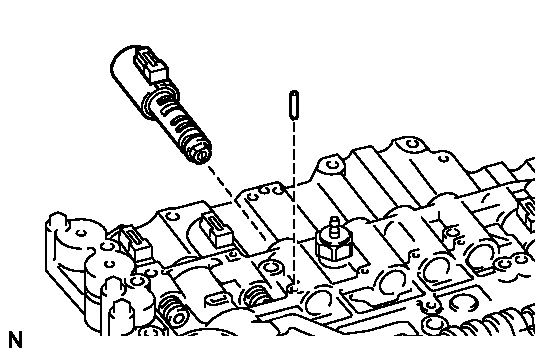

  Fig 8: Identifying Shift Solenoid Valve SLU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SLT
1. Remove the straight pin and solenoid valve.

  Fig 9: Identifying Shift Solenoid Valve SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

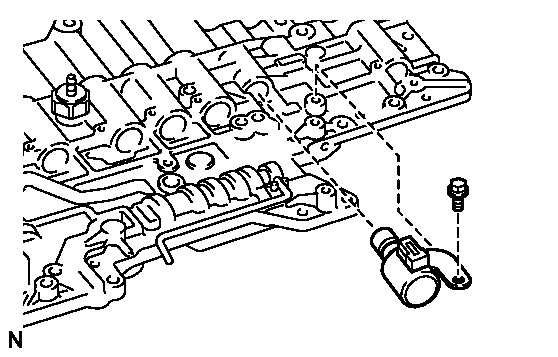

REMOVE SHIFT SOLENOID VALVE SR
1. Remove the bolt and solenoid valve.

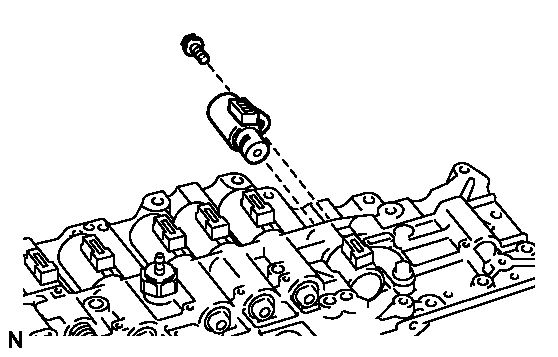

  Fig 10: Identifying Shift Solenoid Valve SR And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

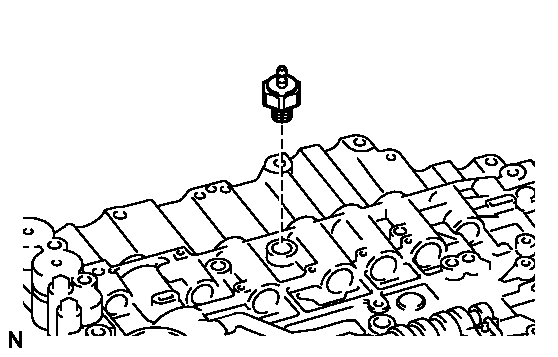

REMOVE OIL PRESSURE SWITCH
1. Remove the oil pressure switch.

  Fig 11: Identifying Oil Pressure Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
