Valve Body Assembly: Installation: Installation

INSTALL TRANSMISSION VALVE BODY ASSEMBLY
1. Install the spring and check ball body.

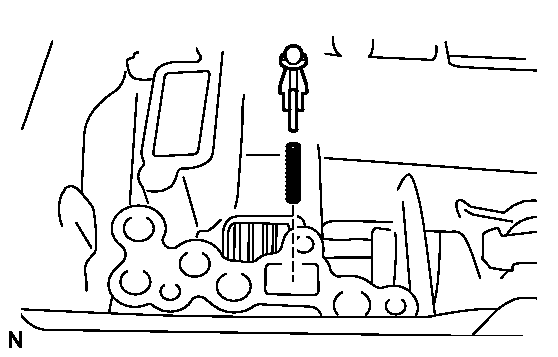

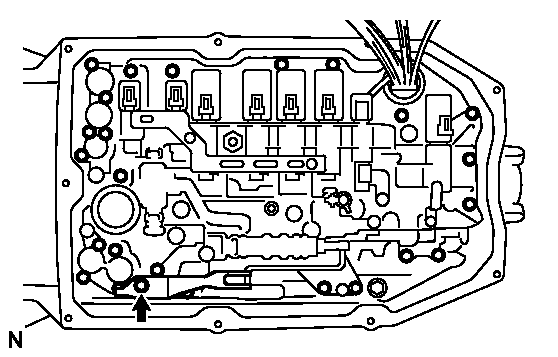

  Fig 1: Identifying Check Ball Body And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the groove of the manual valve with the lever pin.

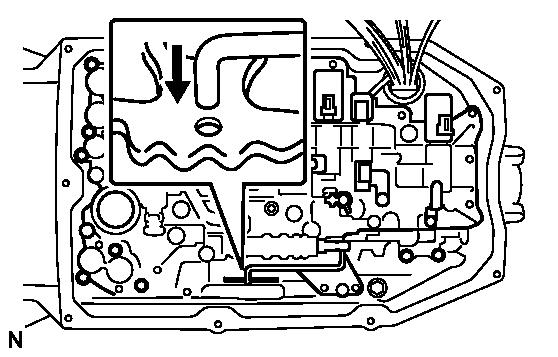

  Fig 2: Aligning Groove Of Manual Valve With Lever Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 17 bolts.

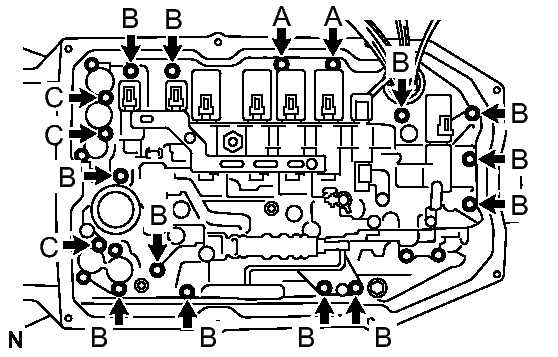

  Fig 3: Locating Transmission Case Bolt Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m ( 112 kgf*cm, 8 ft.*lbf)

  HINT:

  Each bolt length is indicated below.

  Bolt length

  21 mm (0.827 in.) for bolt A

  31 mm (1.22 in.) for bolt B

  64 mm (2.52 in.) for bolt C
4. Install the detent spring and detent spring cover with the bolt.
  NOTE:
  Make sure to install the detent spring so that its roller is perpendicularly aligned to the center of the manual valve lever.

  Fig 4: Locating Detent Spring And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)
5. Connect the 9 connectors to the solenoid valves.

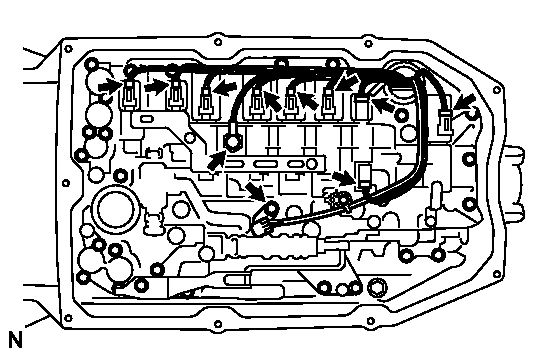

  Fig 5: Locating Solenoid Valves Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the oil pressure switch connector.
7. Coat a new O-ring with ATF and install to the ATF temperature sensor.
8. Install the ATF temperature sensor and lock plate with the bolt.
  Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)
INSTALL VALVE BODY OIL STRAINER ASSEMBLY
1. Coat a new O-ring with ATF and install it to the oil strainer.

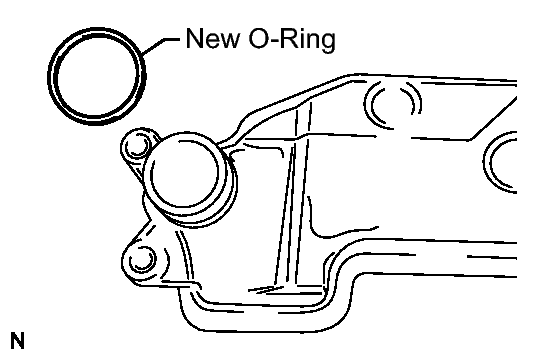

  Fig 6: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Ensure that the O-ring is not twisted or pinched.
2. Install the oil strainer to the valve body with the 4 bolts.

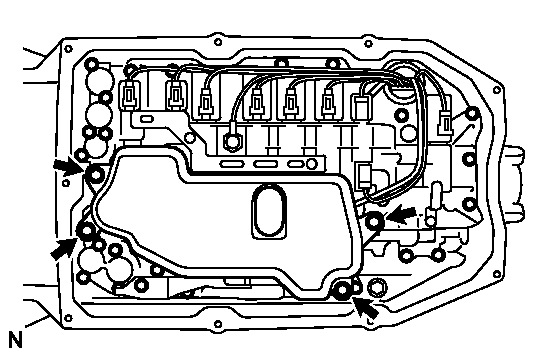

  Fig 7: Locating Oil Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m ( 112 kgf*cm, 8 ft.*lbf)
INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
1. Install the 3 magnets to the oil pan.

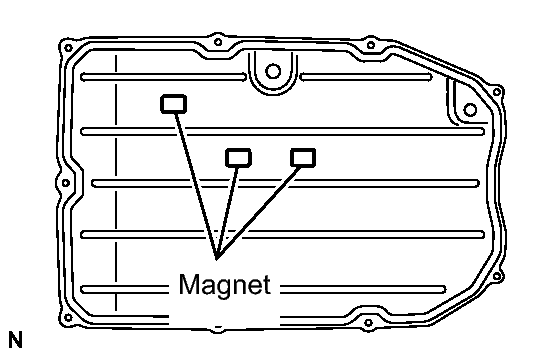

  Fig 8: Identifying Magnets To Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and the oil pan to the transmission case with the 9 bolts.

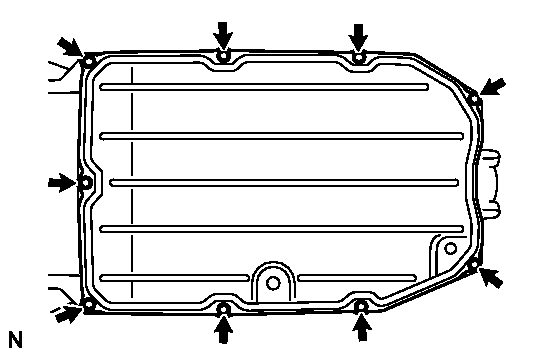

  Fig 9: Locating Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.4 N*m ( 75 kgf*cm, 65 in.*lbf)
  NOTE:

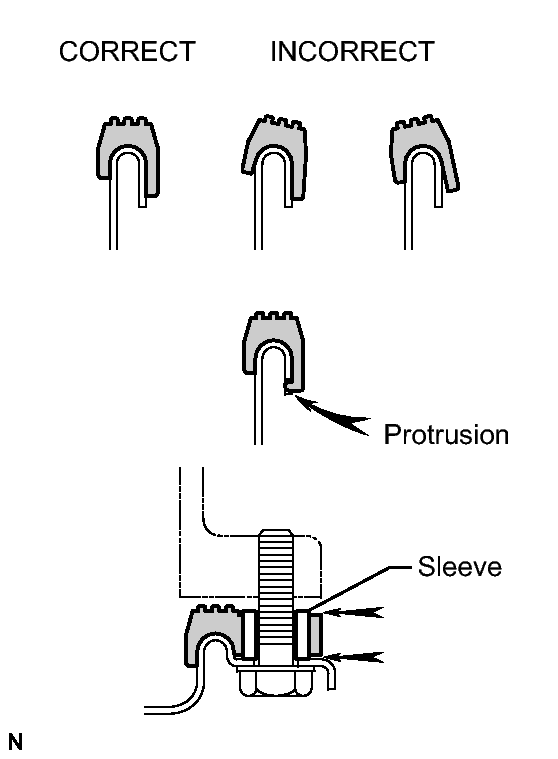

  Fig 10: Identifying Correct And Incorrect Seal Surface Area
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Make sure that there is no oil or foreign matter on the gasket seal surface and oil pan contact surface.
  - Install the gasket so that there is no slack in the gasket, and that the entire seal surface is level.
  - Make sure that the 9 gasket drop prevention protrusions are set on the oil pan.
  - When tightening the oil pan, make sure that the gasket is not pinched between the gasket tightening area sleeve and the transmission seal surface.
INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
1. Install the No. 1 exhaust pipe support bracket with the 2 bolts.

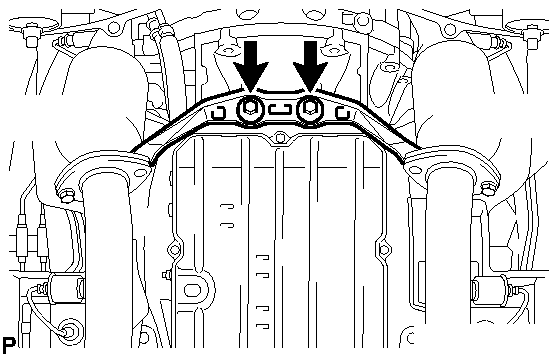

  Fig 11: Locating Exhaust Pipe Support Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 43 N*m ( 439 kgf*cm, 32 ft.*lbf)
2. Install the No. 1 exhaust pipe support bracket with with 2 new bolts and 2 new nuts.

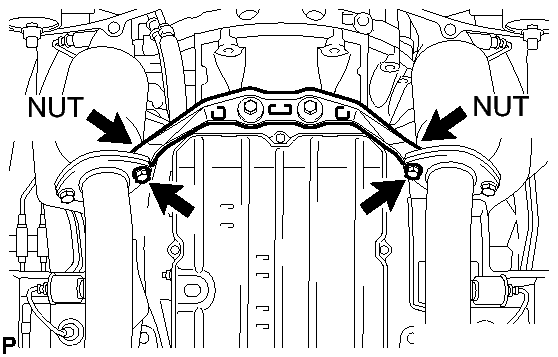

  Fig 12: Locating Exhaust Pipe Support Bracket With Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 39 N*m ( 398 kgf*cm, 29 ft.*lbf)
ADD AUTOMATIC TRANSMISSION FLUID
1. Add automatic transmission fluid. Refer to ADJUSTMENT .
INSTALL NO. 2 ENGINE UNDER COVER
CHECK AUTOMATIC TRANSMISSION SYSTEM PRECAUTION
1. After replacing the valve body or solenoid valve, certain procedures are necessary. Refer to INITIALIZATION .
