DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

INSTALLATION





1. INSTALL DOOR CONTROL RECEIVER

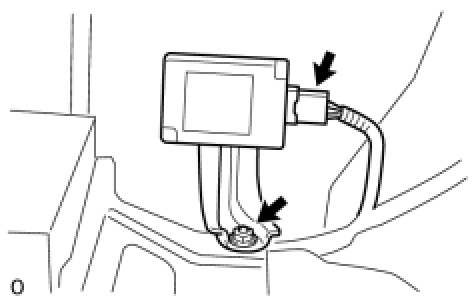

(a) Install the receiver with the nut.
(b) Connect the connector.
NOTE:
When replacing or inspecting the door control receiver and wire harness, do not change the position or length of the wire harness. If the wire harness is too close to the door control receiver, entry and wireless function performance may be affected.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Installation
3. INSTALL REAR FLOOR FINISH PLATE Installation
4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation
5. INSTALL NO. 1 COOLER COVER (W/ Rear Cooler) Installation
6. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK Installation
7. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Installation
8. INSTALL DECK TRIM SIDE BOARD RH Installation
9. INSTALL ROPE HOOK Installation
10. INSTALL ROPE HOOK ASSEMBLY Installation
11. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
