Power Door Lock Control System

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM
HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that customize of the function is possible.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Customize Setting.

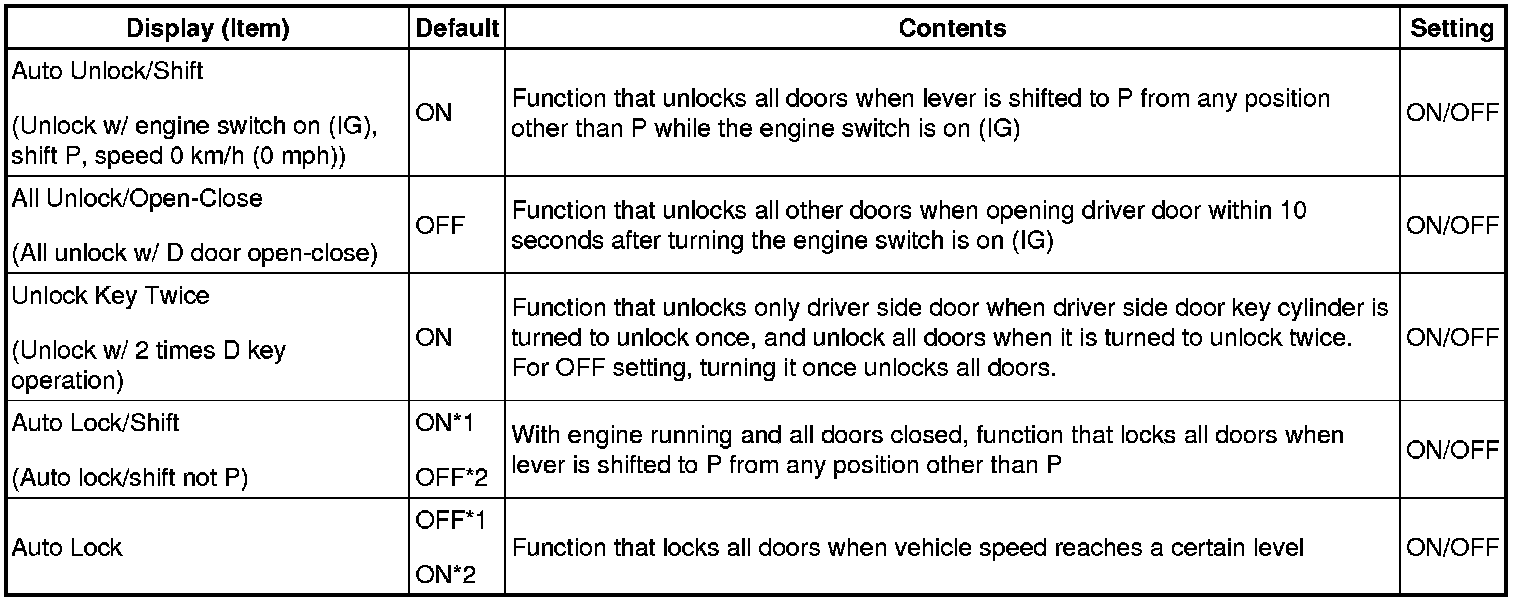

(e) Select the setting by referring to the table below.

Door Lock





HINT:
*1: Except Korea
*2: for Korea
