Installation

CRUISE CONTROL: DRIVING SUPPORT ECU: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

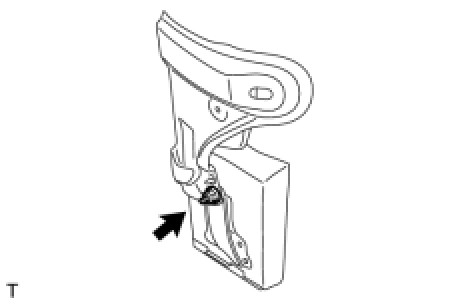

1. INSTALL DRIVING SUPPORT ECU
(a) Install the ECU with the nut.
NOTICE:
- Do not use an ECU which has been dropped or subjected to any strong shocks.
- During the removal and installation, do not remove the drip-proof cover.
- When a new ECU is installed, perform initialization.





2. INSTALL DASH PANEL EXTENSION LH
(a) Install the dash panel extension with the 2 nut and bolt.
(b) Connect the connector.
(c) Attach the clamp.
3. INSTALL COWL SIDE TRIM BOARD LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH Installation
