Programming and Relearning

CRUISE CONTROL: CRUISE CONTROL SYSTEM: REGISTRATION

REGISTRATION

1. PERFORM ELECTRONICALLY CONTROLLED BRAKE SYSTEM RECOGNITION IN ECM
NOTE:
If the vehicle has both cruise control and electronically controlled brake system, when replacing the ECM, perform electronically controlled brake system recognition as follows:

(a) Turn the engine switch on (IG).

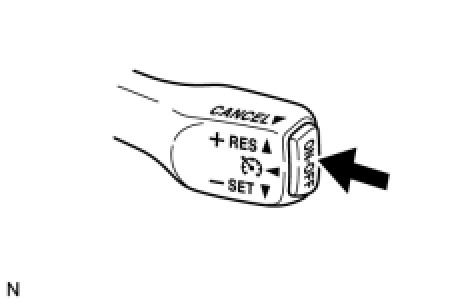

(b) After waiting approximately 5 seconds, turn the cruise control switch ON.
(c) Keep the cruise control switch ON for approximately 5 seconds or more.
