Removal

OTHER SYSTEM: VOLTAGE INVERTER: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR SEAT CONSOLE ARMREST GARNISH LH Removal
4. REMOVE REAR SEAT CONSOLE ARMREST GARNISH RH Removal
5. REMOVE REAR SEAT CONSOLE PANEL ASSEMBLY Removal
6. REMOVE VOLTAGE INVERTER ASSEMBLY

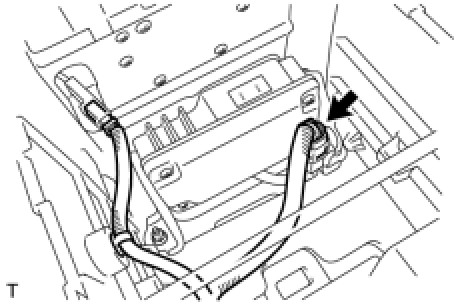

(a) Disconnect the connector.

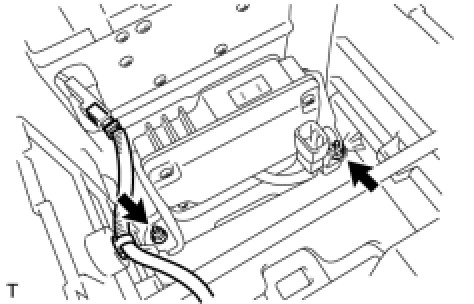

(b) Remove the 2 nuts and voltage inverter.
