Dynamic Radar Cruise Control: Notes

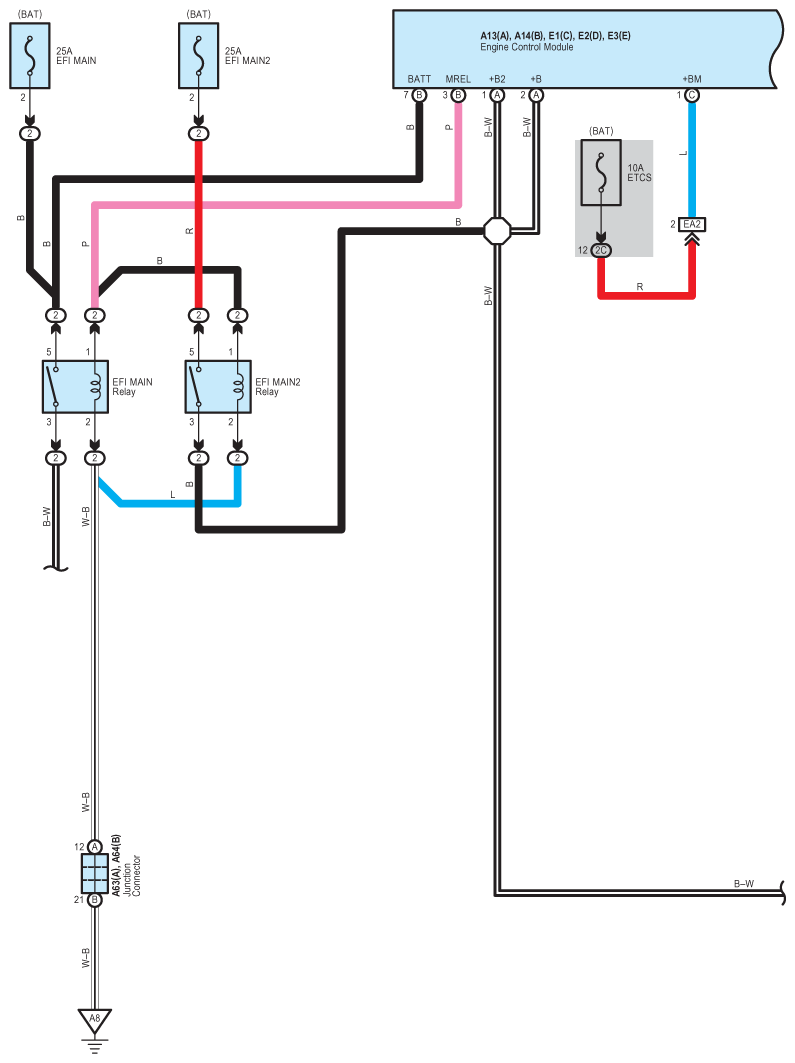

Fig 1: Dynamic Radar Cruise Control - Circuit Diagram (1 Of 20)

G07589516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

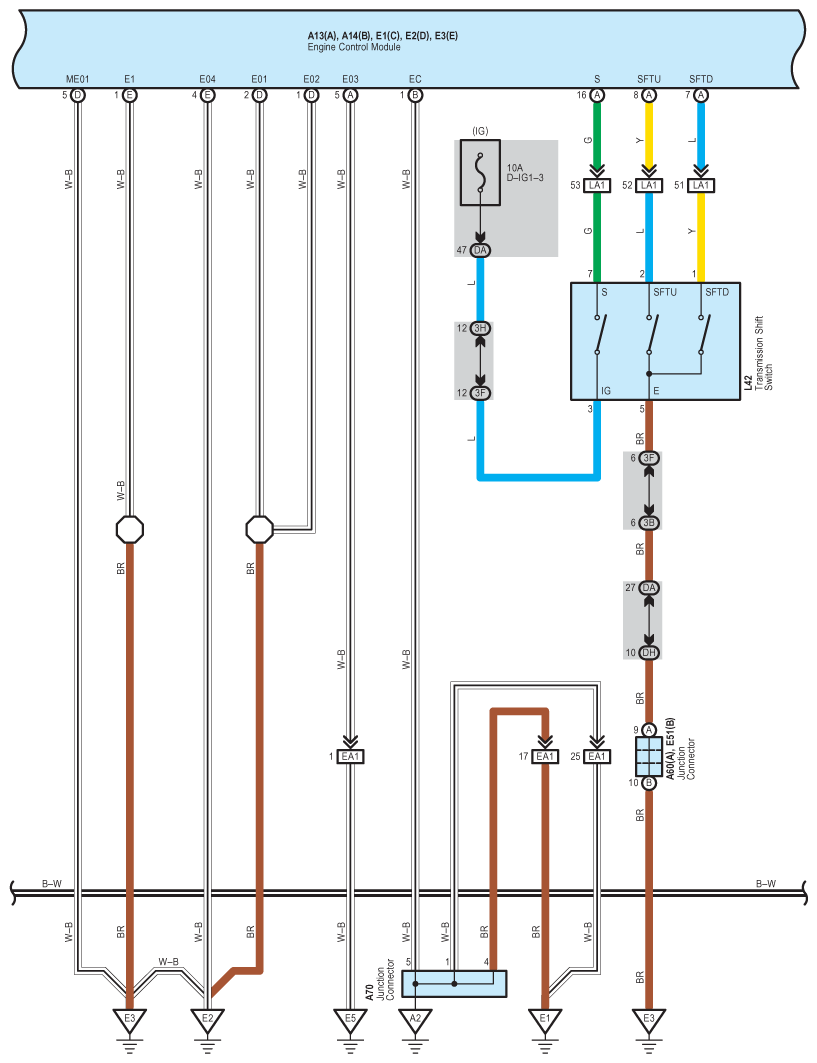

Fig 2: Dynamic Radar Cruise Control - Circuit Diagram (2 Of 20)

G07589517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

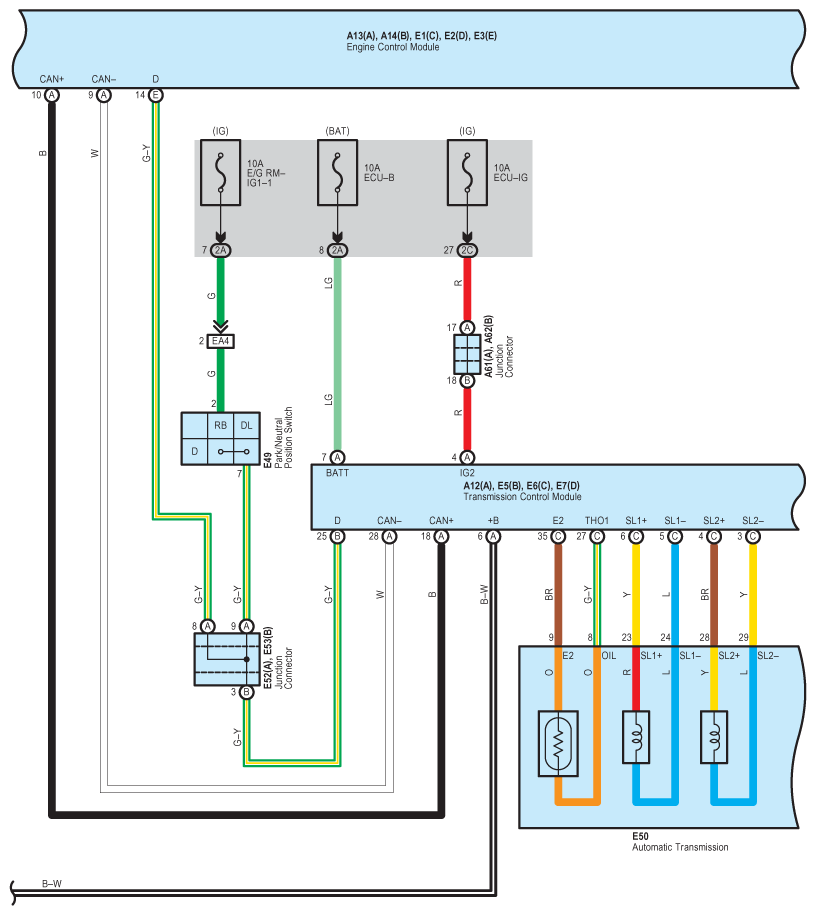

Fig 3: Dynamic Radar Cruise Control - Circuit Diagram (3 Of 20)

G07589518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

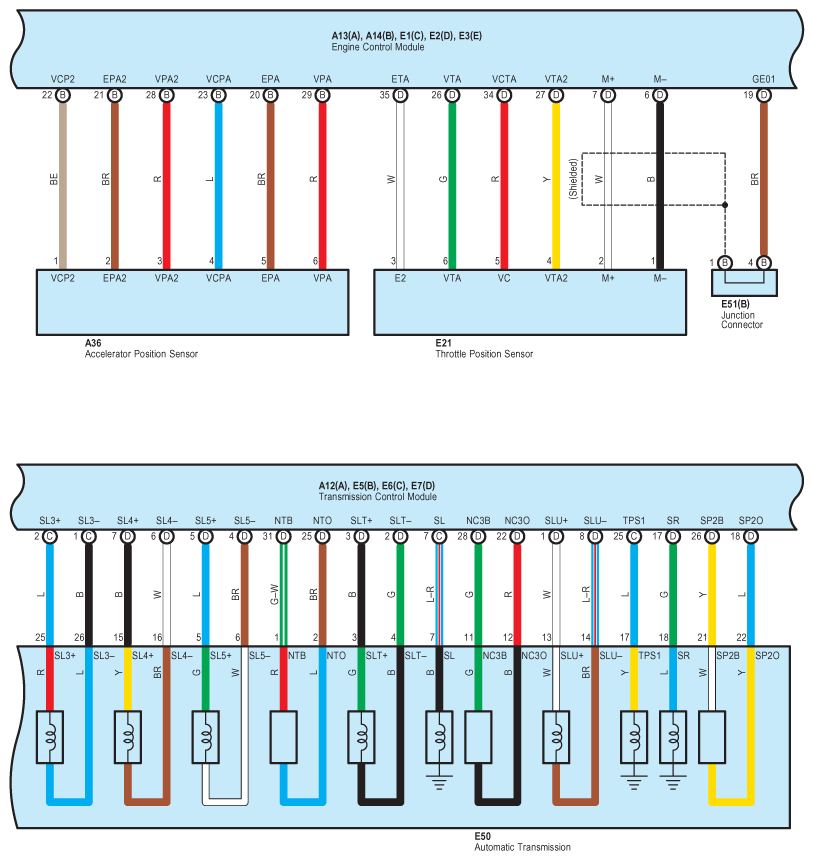

Fig 4: Dynamic Radar Cruise Control - Circuit Diagram (4 Of 20)

G07589519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

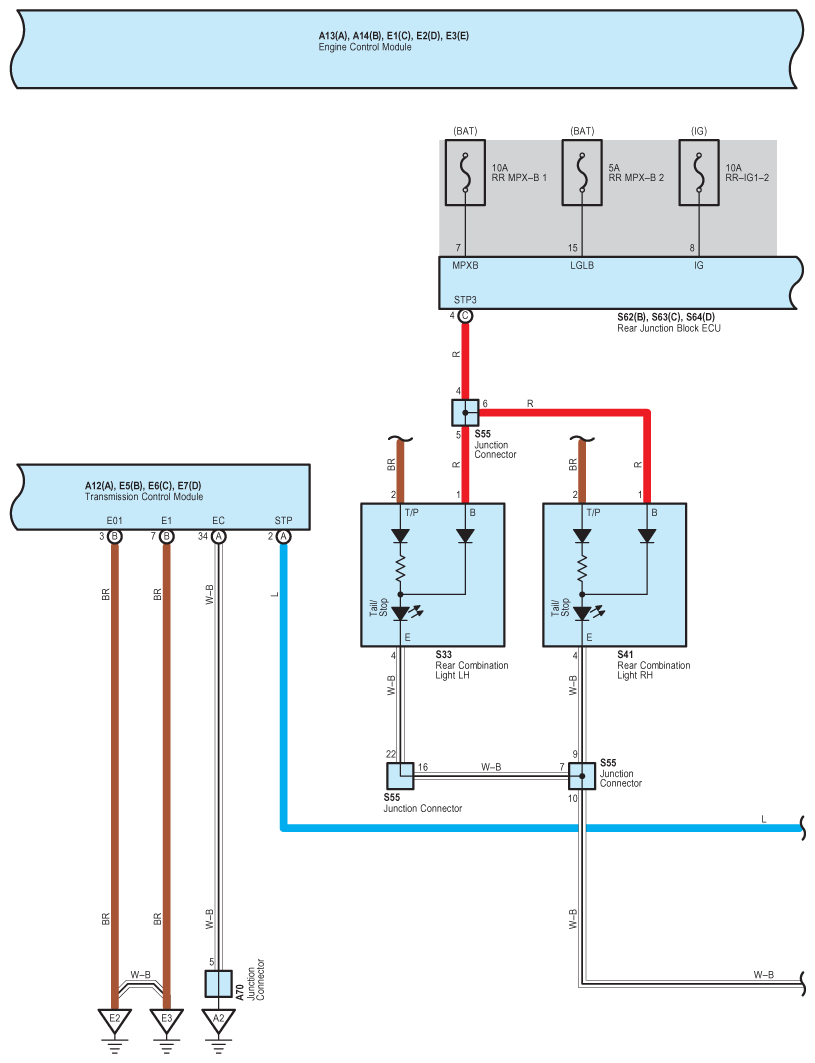

Fig 5: Dynamic Radar Cruise Control - Circuit Diagram (5 Of 20)

G07589520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

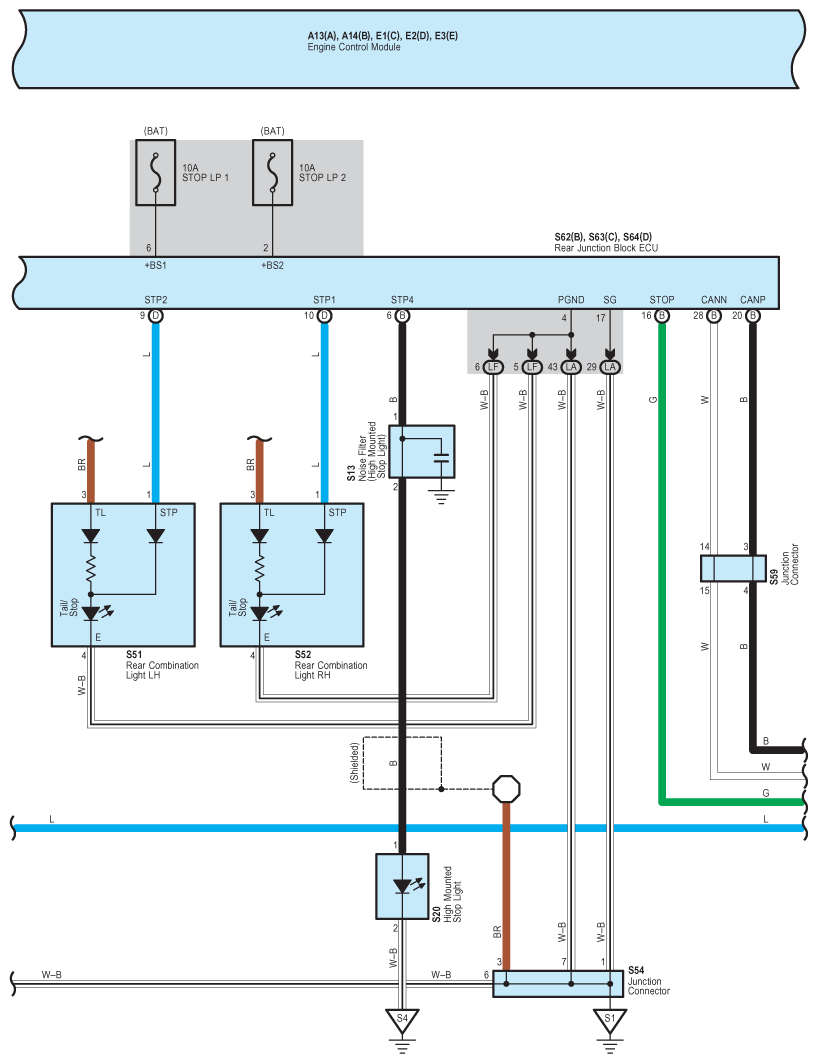

Fig 6: Dynamic Radar Cruise Control - Circuit Diagram (6 Of 20)

G07589521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

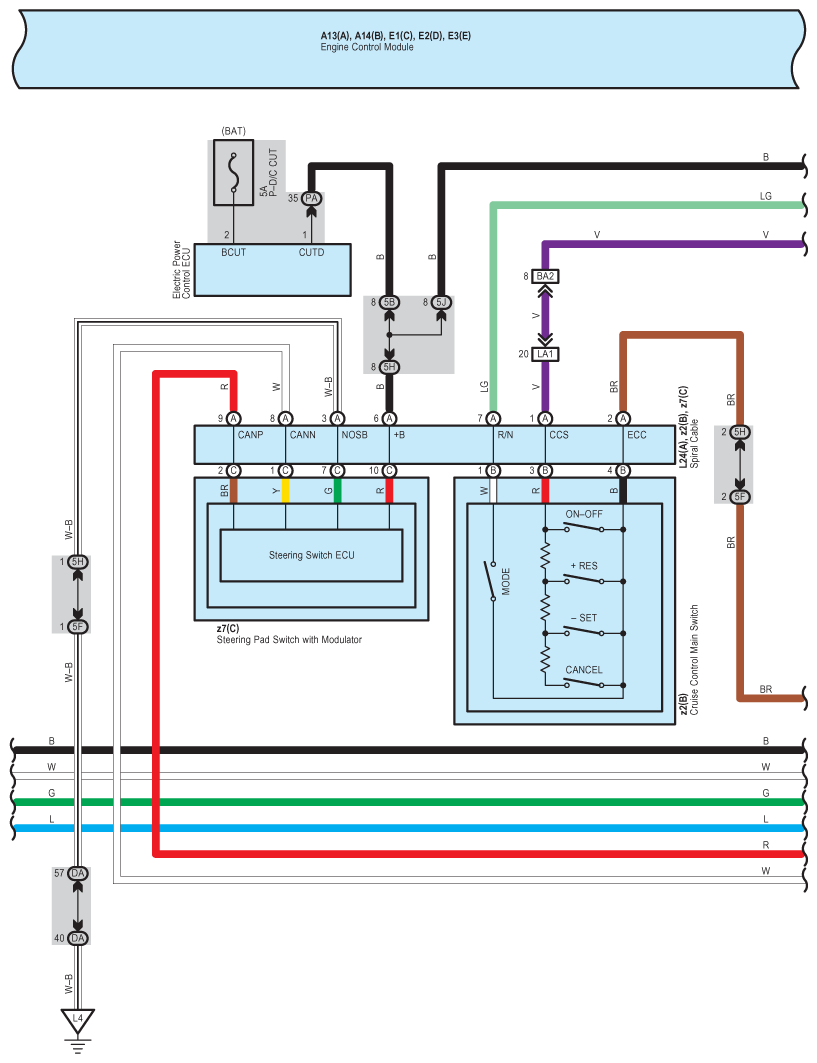

Fig 7: Dynamic Radar Cruise Control - Circuit Diagram (7 Of 20)

G07589522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

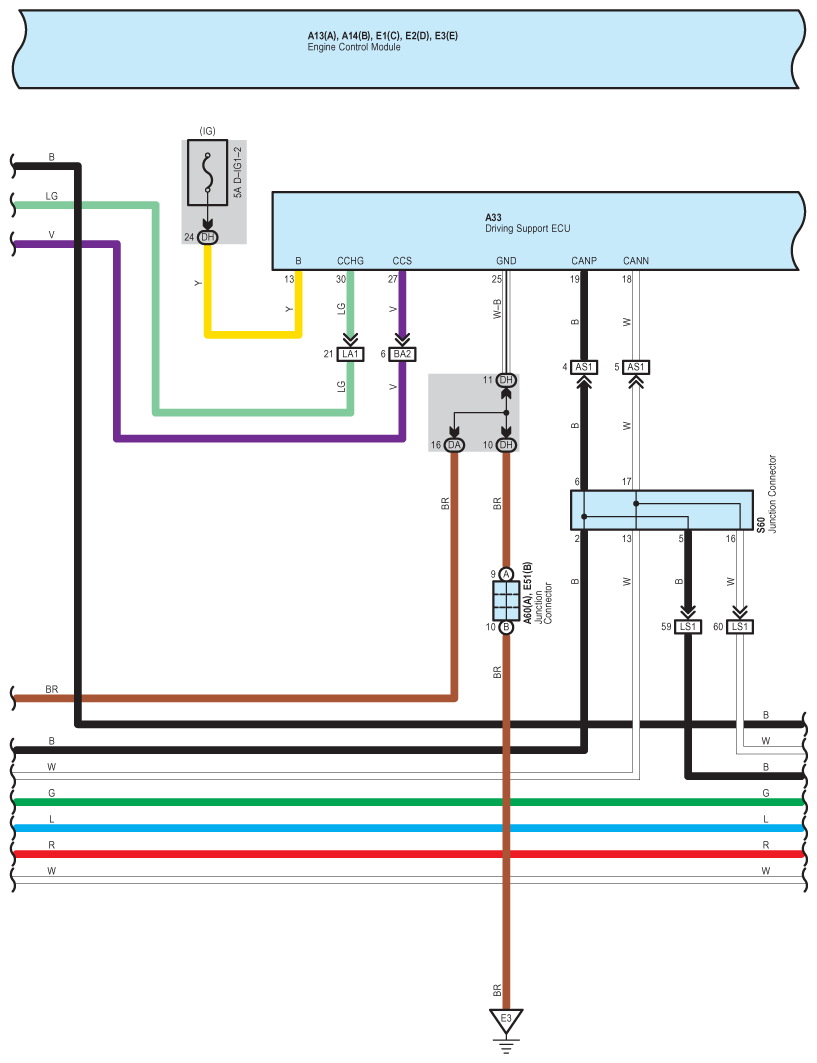

Fig 8: Dynamic Radar Cruise Control - Circuit Diagram (8 Of 20)

G07589523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

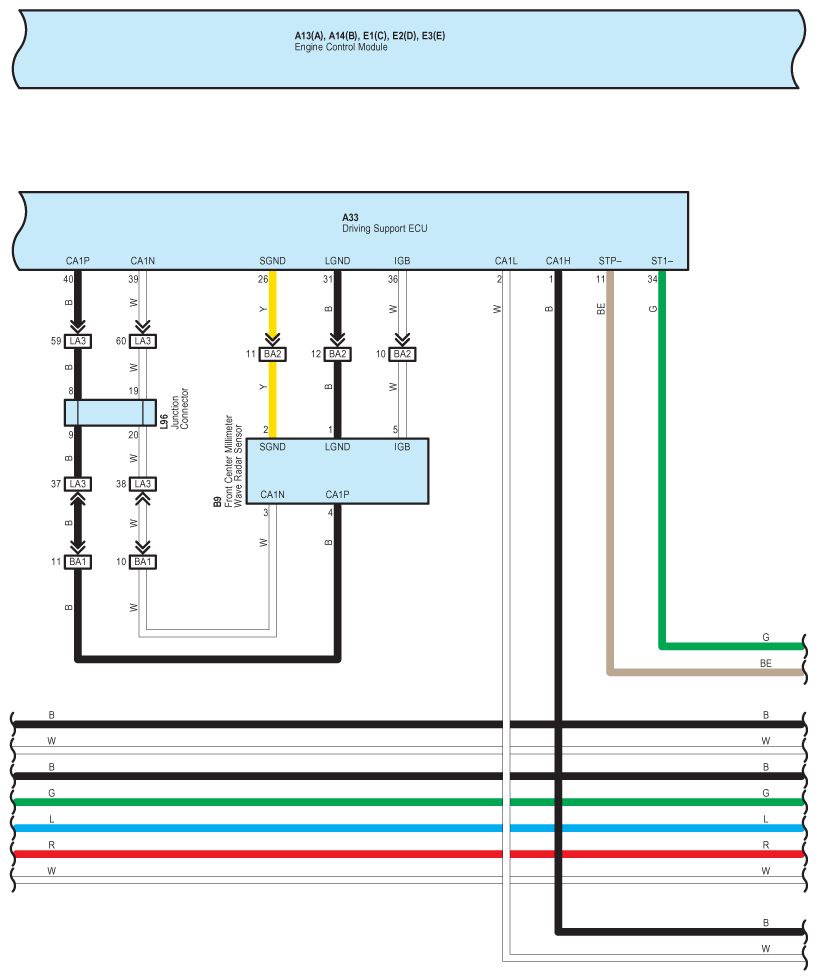

Fig 9: Dynamic Radar Cruise Control - Circuit Diagram (9 Of 20)

G07589524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

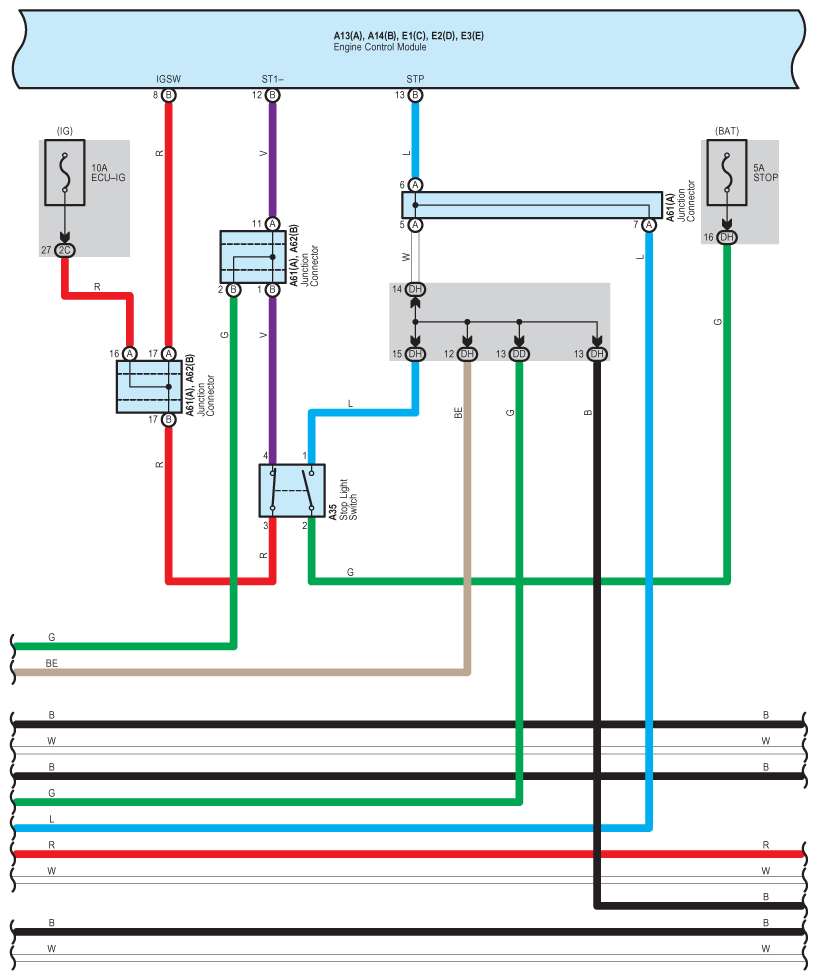

Fig 10: Dynamic Radar Cruise Control - Circuit Diagram (10 Of 20)

G07589525

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

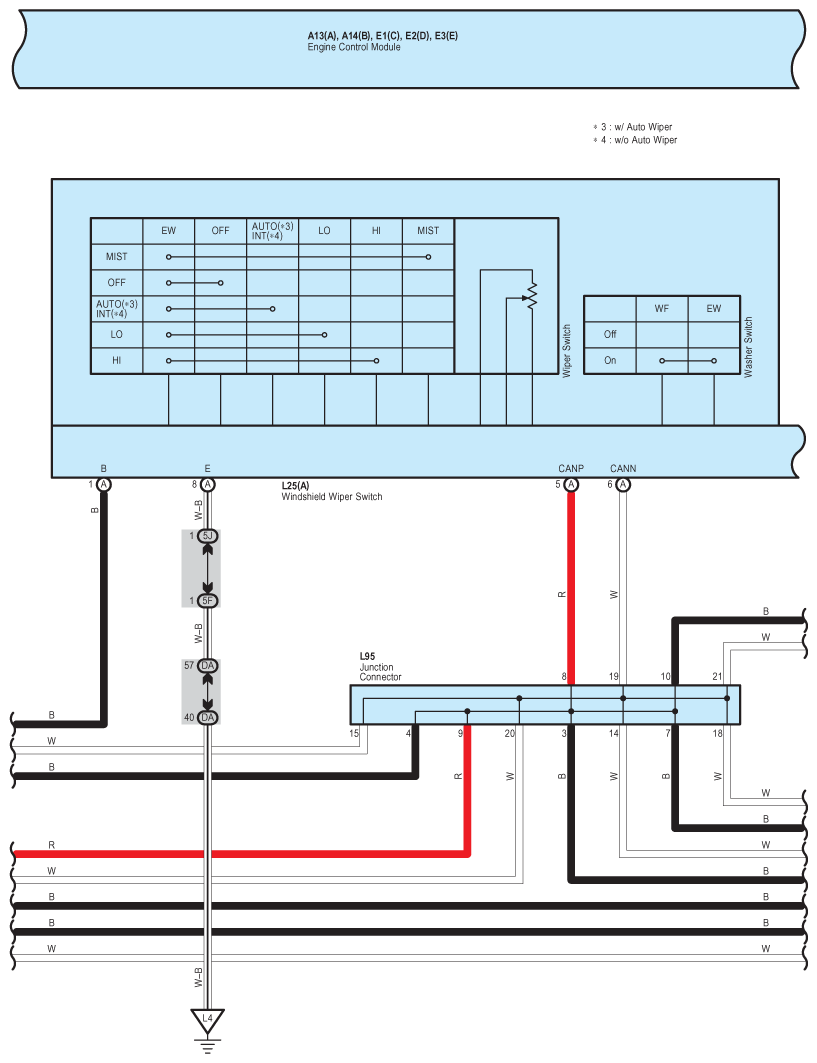

Fig 11: Dynamic Radar Cruise Control - Circuit Diagram (11 Of 20)

G07589526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

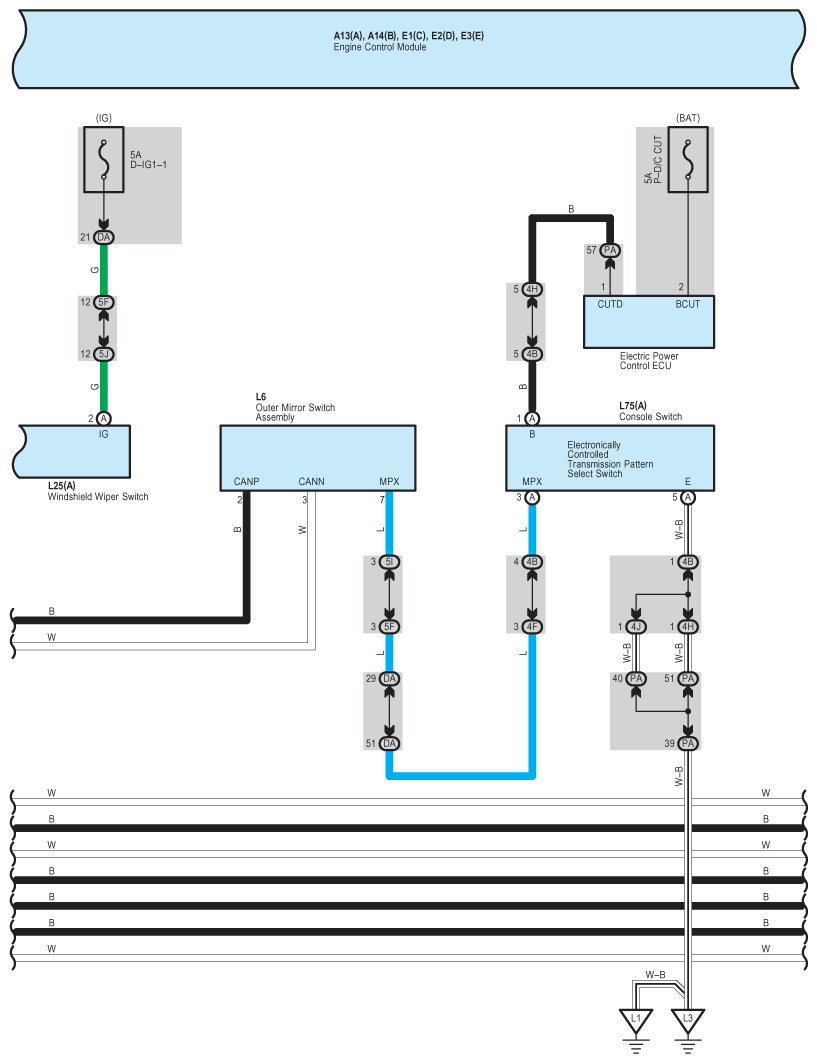

Fig 12: Dynamic Radar Cruise Control - Circuit Diagram (12 Of 20)

G07589527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

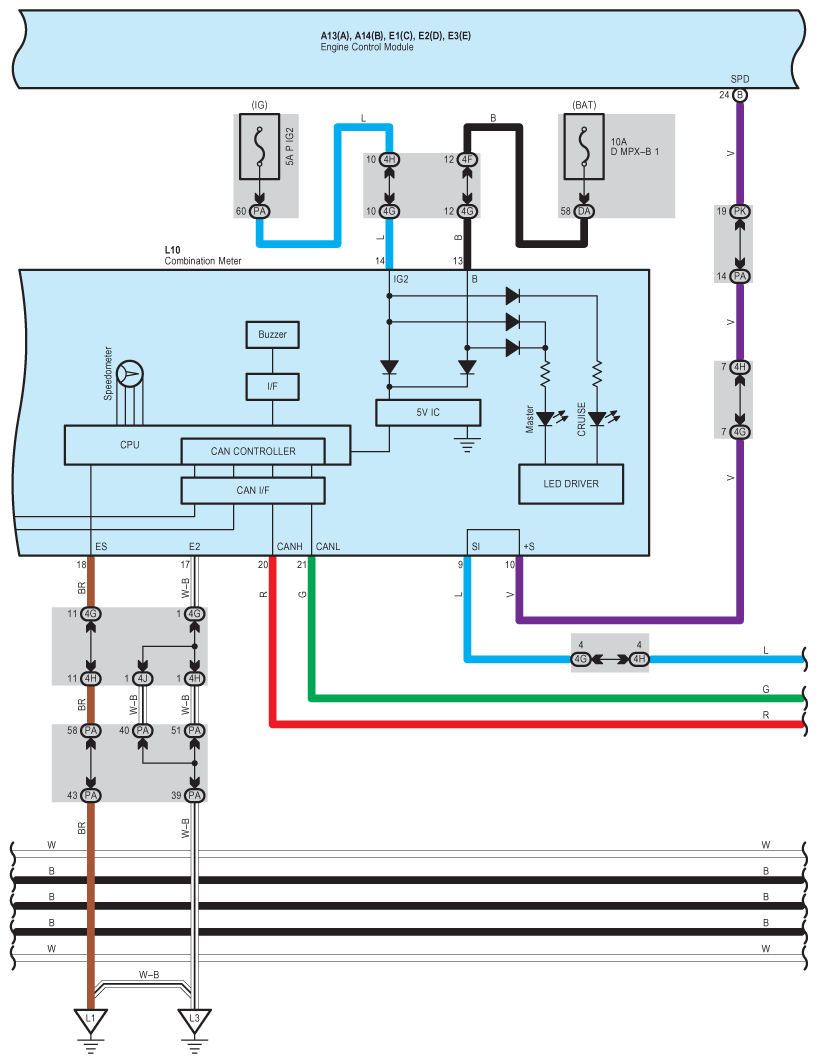

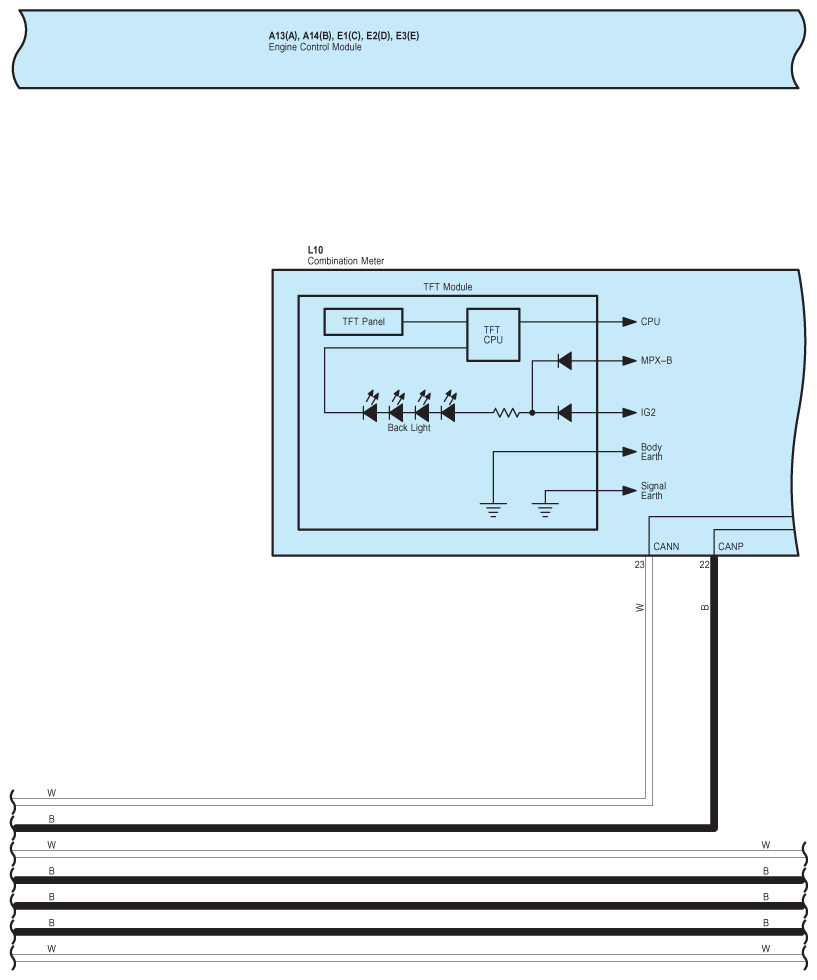

Fig 13: Dynamic Radar Cruise Control - Circuit Diagram (13 Of 20)

G07589528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dynamic Radar Cruise Control - Circuit Diagram (14 Of 20)

G07589529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

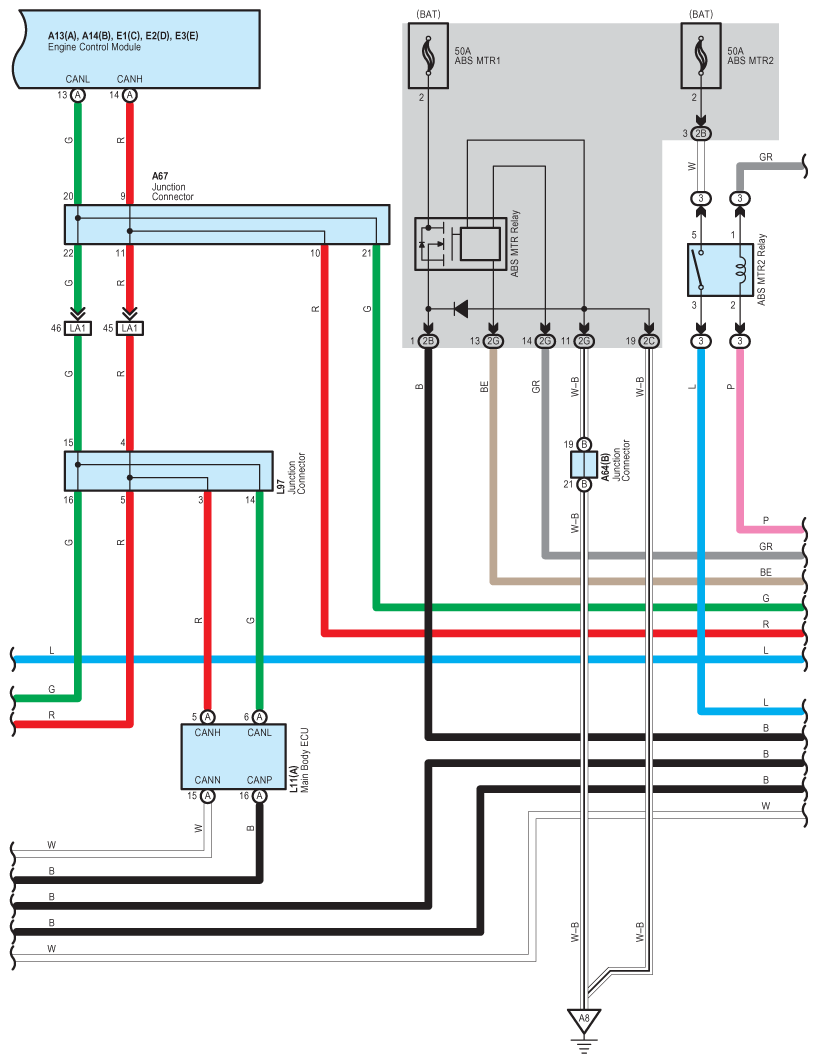

Fig 15: Dynamic Radar Cruise Control - Circuit Diagram (15 Of 20)

G07589530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

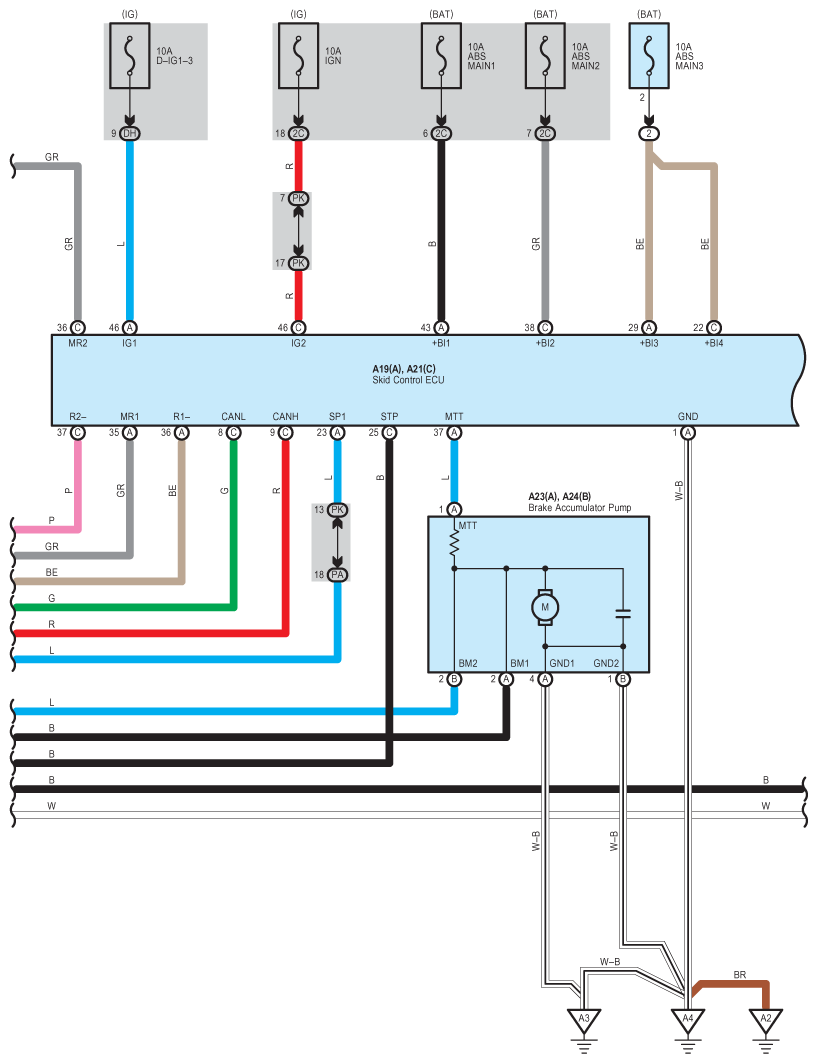

Fig 16: Dynamic Radar Cruise Control - Circuit Diagram (16 Of 20)

G07589531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

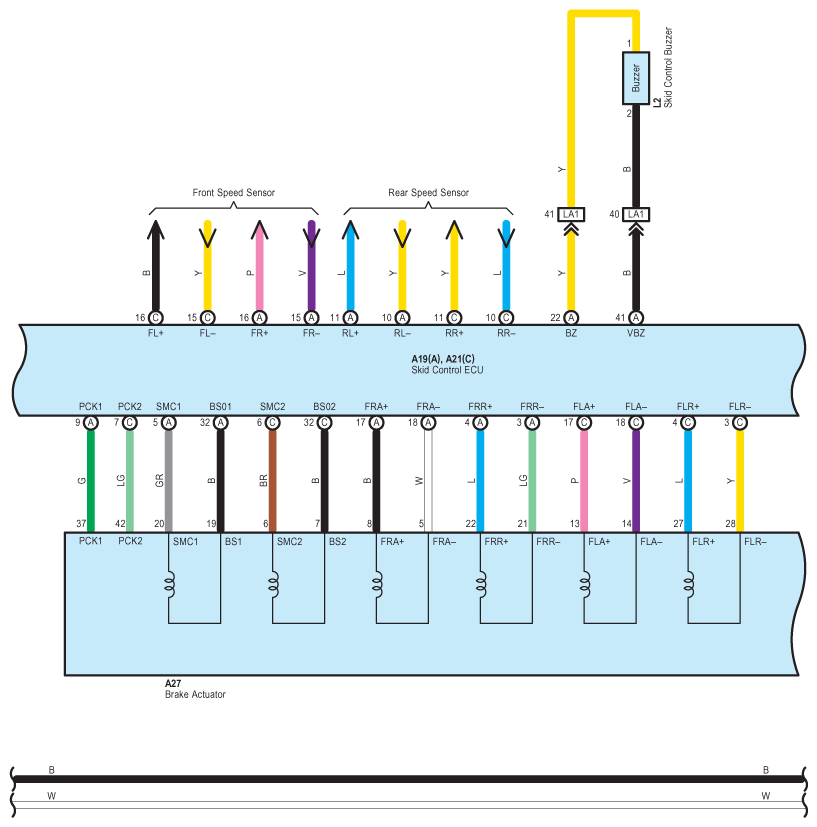

Fig 17: Dynamic Radar Cruise Control - Circuit Diagram (17 Of 20)

G07589532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

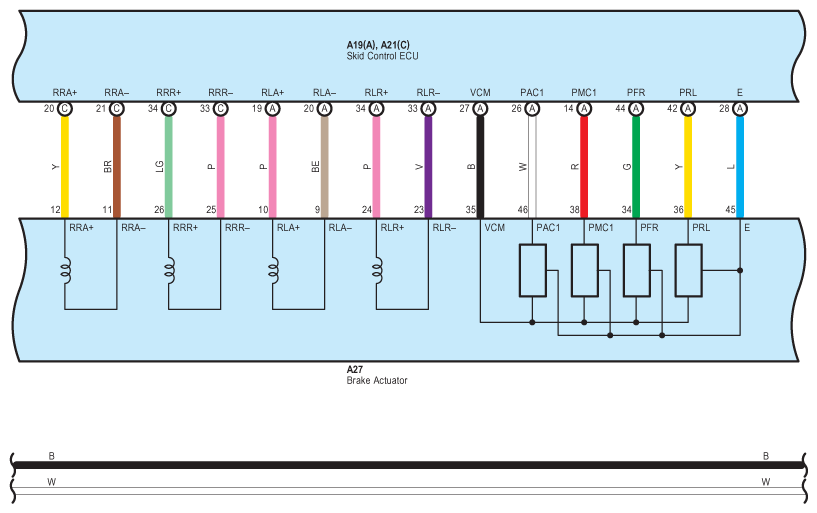

Fig 18: Dynamic Radar Cruise Control - Circuit Diagram (18 Of 20)

G07589533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

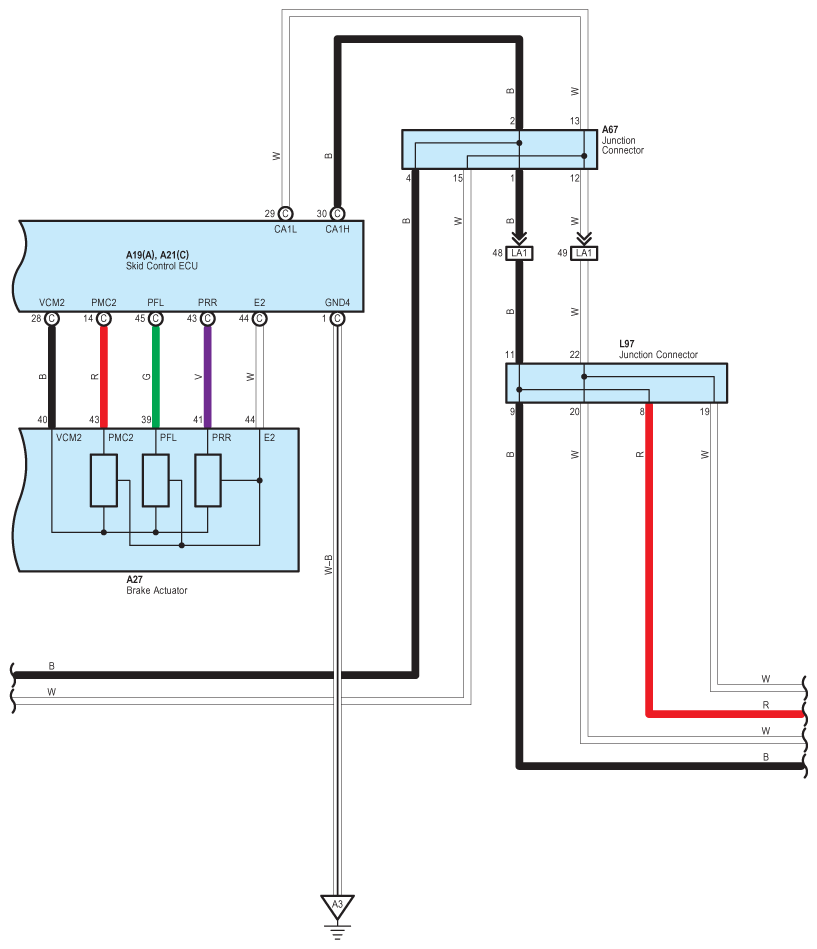

Fig 19: Dynamic Radar Cruise Control - Circuit Diagram (19 Of 20)

G07589534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

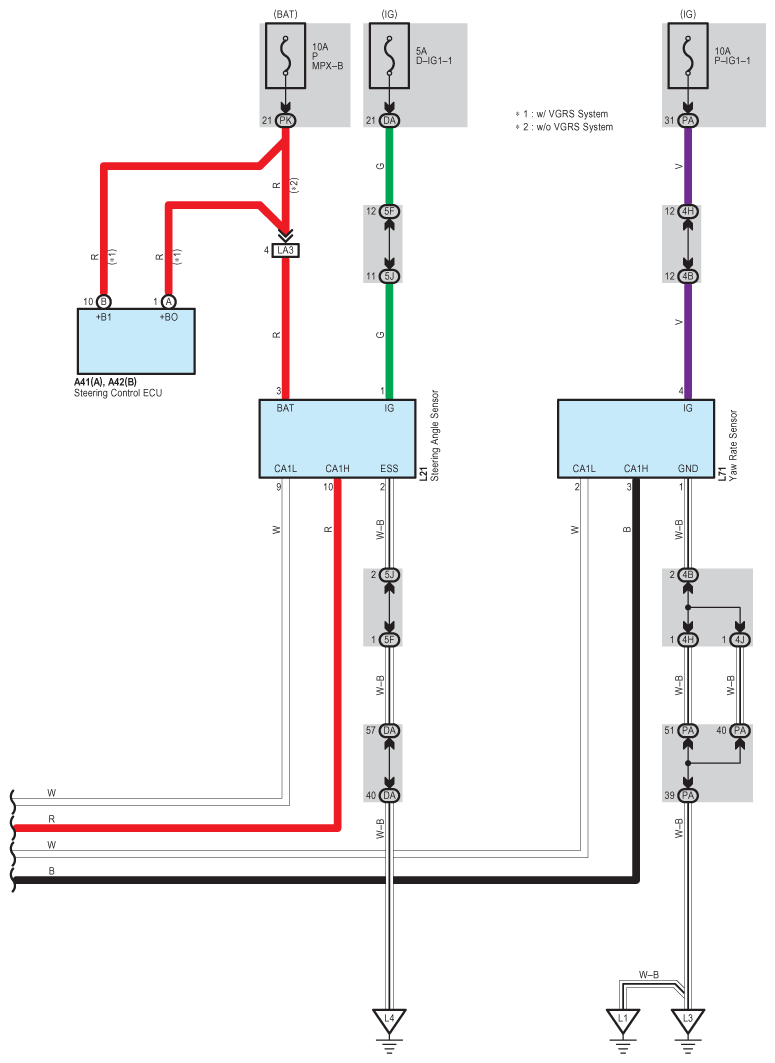

Fig 20: Dynamic Radar Cruise Control - Circuit Diagram (20 Of 20)

G07589535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
