Battery Current Sensor: Components

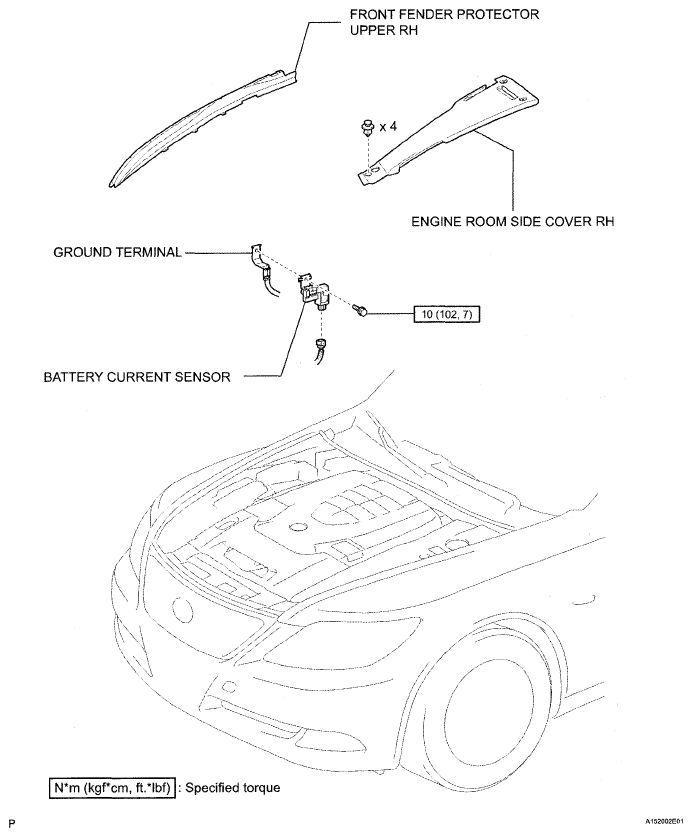

Fig 1: Battery Current Sensor Replacement Components With Torque Specifications
G04945746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
