Inspection Procedure

  1. CHECK OPERATION (ENGINE START)
    1. Check that the engine starts normally.

      OK:

      Engine starts normally.

      NG: GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START  (See HOW TO PROCEED WITH TROUBLESHOOTING )

      OK: Go to Next Step

  2. PERFORM ACTIVE TEST USING TECHSTREAM (DEICER RELAY)
    1. Select the Active Test, using the Techstream to generate a control command, and then check that the windshield deicer operates.

      Air Conditioner

      ACTIVE TEST REFERENCE CHART

      Tester Display Test Part Control Range Diagnostic Note
      Deicer Relay (Front) Deicer relay operation OFF/ON -

      Result

      RESULT REFERENCE CHART

      Result Proceed to
      Windshield deicer operates normally (w/ Multi-display) A
      Windshield deicer operates normally (w/o Multi-display) B
      Windshield deicer does not operate C

      B:  Go to step  4

      C:  Go to step  5

      A: Go to Next Step

  3. CHECK MULTI-DISPLAY (OPERATION)
    1. Temporarily replace the multi-display with a new or normally functioning one (see REMOVAL ).
    2. Check that the malfunction disappears.

      OK:

      Malfunction disappears.

      NG: REPLACE AIR CONDITIONING AMPLIFIER  (See REMOVAL )

      OK: REPLACE MULTI-DISPLAY  (See REMOVAL )

  4. CHECK INTEGRATION CONTROL AND PANEL (OPERATION)
    1. Temporarily replace the integration control and panel with a new or normally functioning one (see REMOVAL ).
    2. Check that the malfunction disappears.

      OK:

      Malfunction disappears.

      NG: REPLACE AIR CONDITIONING AMPLIFIER  (See REMOVAL )

      OK: REPLACE INTEGRATION CONTROL AND PANEL  (See REMOVAL )

  5. INSPECT FUSE (DEICER)
    1. Remove the DEICER fuse from the engine room No. 2 relay block.
    2. Measure the resistance of the fuse.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      DEICER fuse Always Below 1 Ω

      NG: REPLACE FUSE

      OK: Go to Next Step

  6. INSPECT DEICER RELAY
    1. Remove the deicer relay from the No. 3 relay block.
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      3-5 When battery voltage is not applied between terminals 10 kΩ or higher
      When battery voltage is applied to terminals 1 and 2 Below 1 Ω
      Fig 1: Inspecting Deicer Relay Terminals
      G04950839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE DEICER RELAY

      OK: Go to Next Step

  7. CHECK HARNESS AND CONNECTOR (DEICER RELAY - FRONT LIGHT ECU AND BATTERY)
    1. Remove the deicer relay from the No. 3 relay block.
    2. Disconnect the A51 front light ECU connector.
    3. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      STANDARD VOLTAGE REFERENCE CHART

      Tester Connection Switch Condition Specified Condition
      Deicer relay terminal 1 - Body ground Engine switch on (IG) 11 to 14 V
      Deicer relay terminal 5 - Body ground Always 11 to 14 V
    4. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      Deicer relay terminal 2 - A51-13 (FDEF) Always Below 1 Ω
      Fig 2: Identifying A51 Front Controller Connector And Deicer Relay
      G04952234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  8. CHECK HARNESS AND CONNECTOR (DEICER RELAY - WINDSHIELD DEICER WIRE)
    1. Remove the deicer relay from the No. 3 relay block.
    2. Disconnect the A30 windshield deicer wire connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      A30-1 (B2) - Deicer relay terminal 3 Always Below 1 Ω
      A30-2 (B) - Deicer relay terminal 3 Always Below 1 Ω
      Deicer relay terminal 3 - Body ground Always 10 kΩ or higher

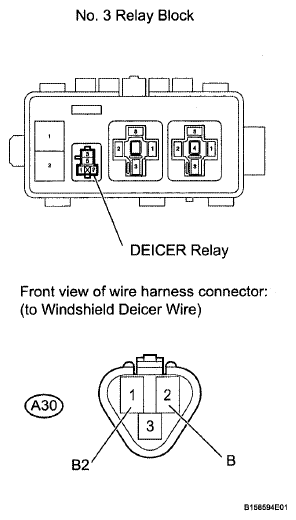

      Fig 3: Identifying Deicer Relay And A30 Windshield Deicer Wire Connector Terminals
      G06197223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  9. CHECK HARNESS AND CONNECTOR (WINDSHIELD DEICER WIRE - BODY GROUND)
    1. Disconnect the A30 windshield deicer wire connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      A30-3 (E) - Body ground Always Below 1 Ω
      Fig 4: Identifying A30 Windshield Deicer Wire Connector Terminals
      G04952180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  10. CHECK FRONT LIGHT ECU (OPERATION)
    1. Temporarily replace the front light ECU with a new or normally functioning one.
    2. Check that the malfunction disappears.

      OK:

      Malfunction disappears.

      NG: REPLACE AIR CONDITIONING AMPLIFIER  (See REMOVAL )

      OK: REPLACE FRONT LIGHT ECU
