Automatic Glare-Resistant EC Mirror with Compass: Notes

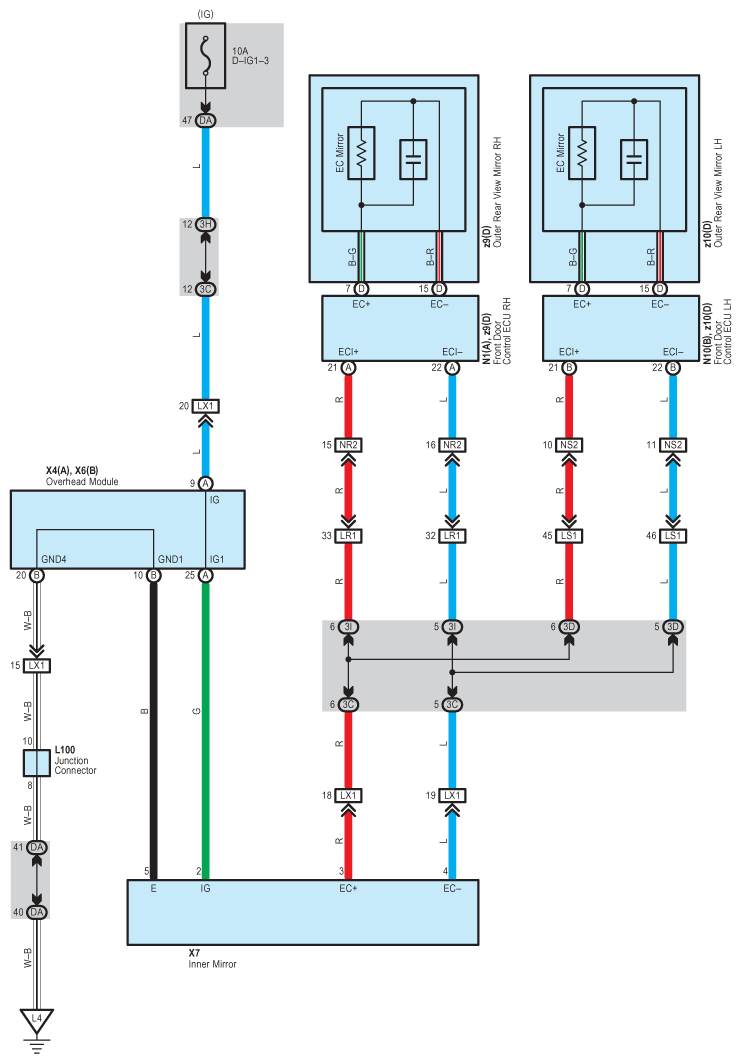

Fig 1: Automatic Glare-Resistant EC Mirror With Compass - Circuit Diagram
G07589674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
