Power Seat (Front Passenger's Seat): Notes

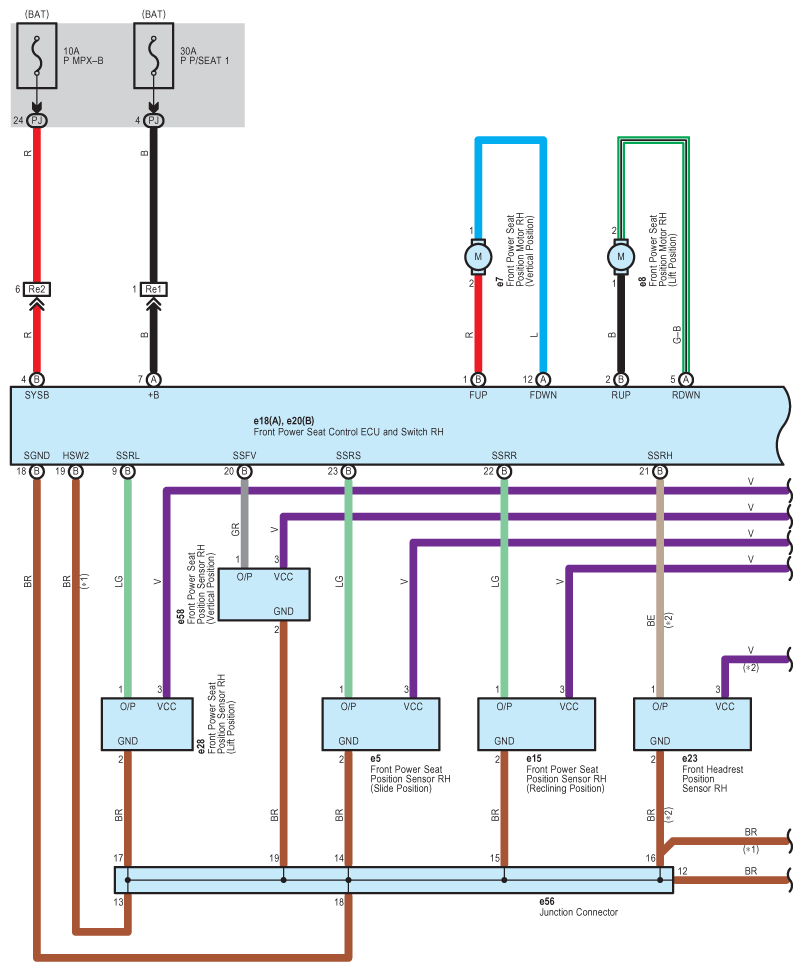

Fig 1: Power Seat (Front Passenger's Seat) - Circuit Diagram (1 Of 7)
G07589645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

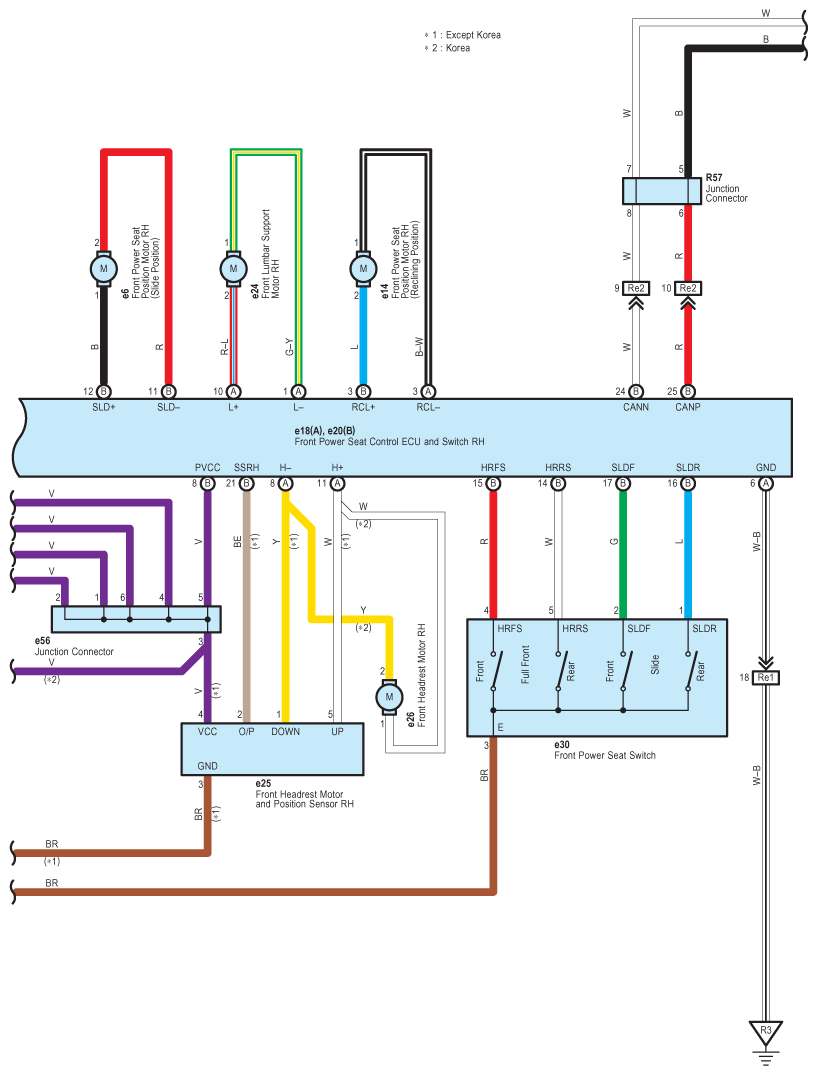

Fig 2: Power Seat (Front Passenger's Seat) - Circuit Diagram (2 Of 7)
G07589646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

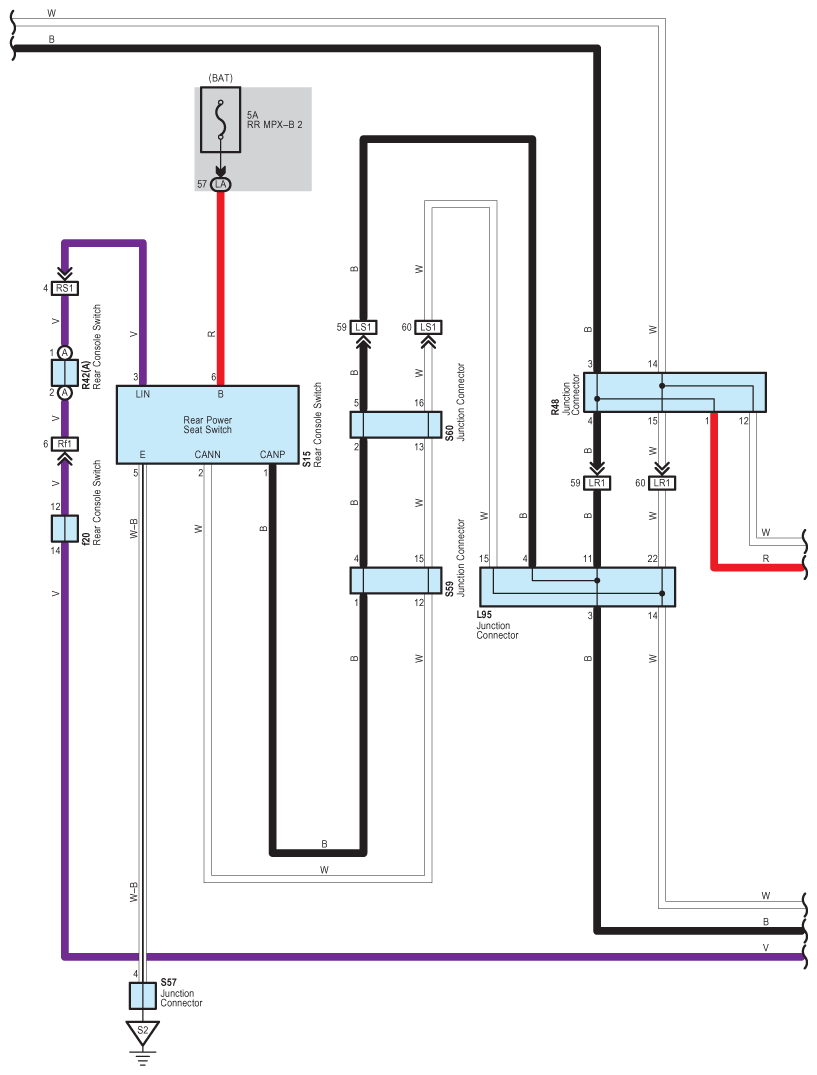

Fig 3: Power Seat (Front Passenger's Seat) - Circuit Diagram (3 Of 7)
G07589647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

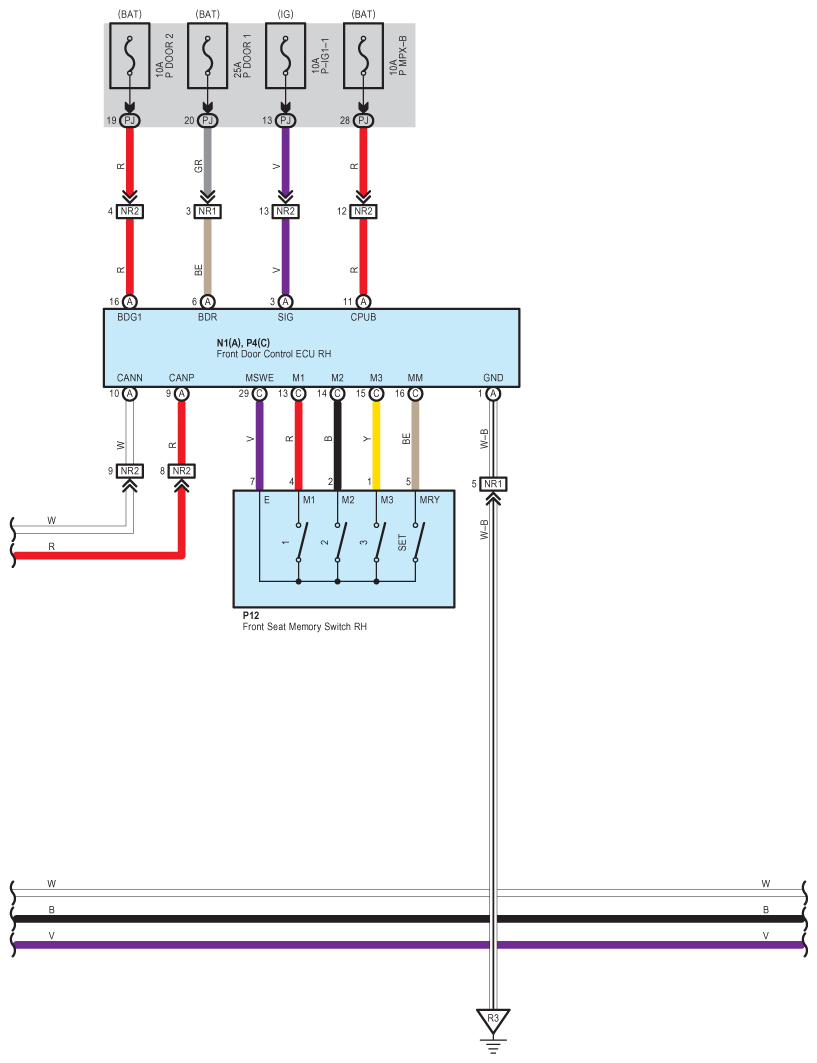

Fig 4: Power Seat (Front Passenger's Seat) - Circuit Diagram (4 Of 7)
G07589648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

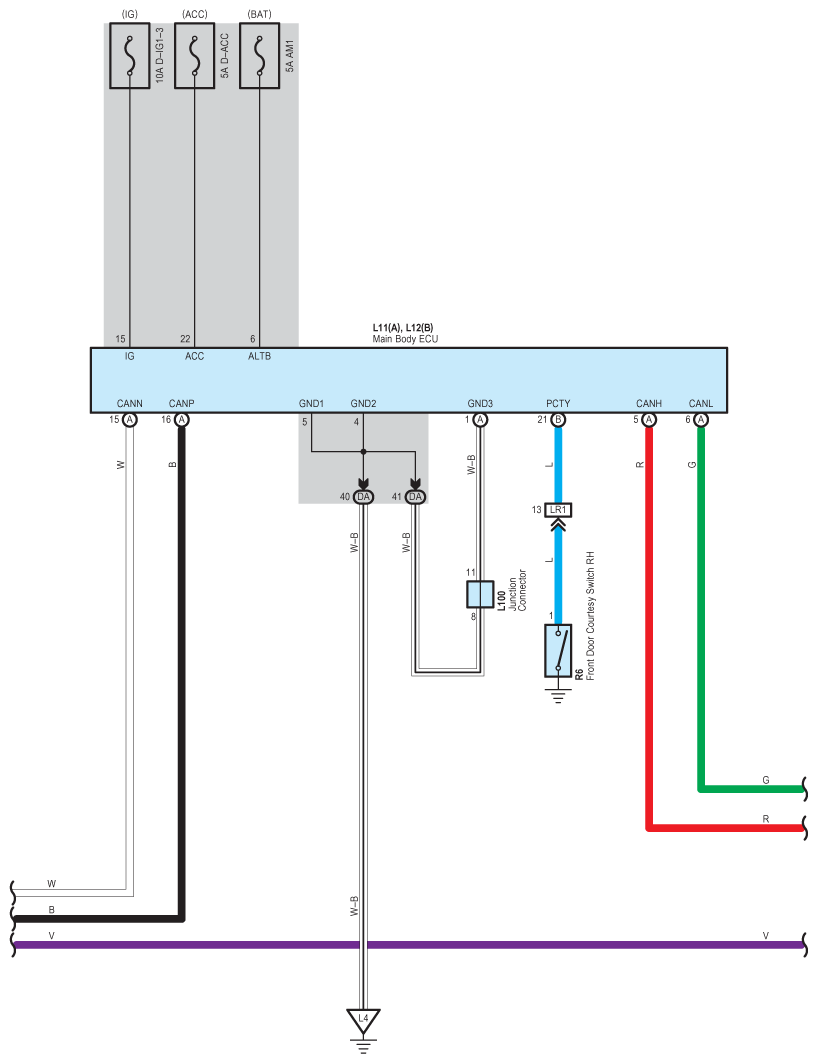

Fig 5: Power Seat (Front Passenger's Seat) - Circuit Diagram (5 Of 7)
G07589649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

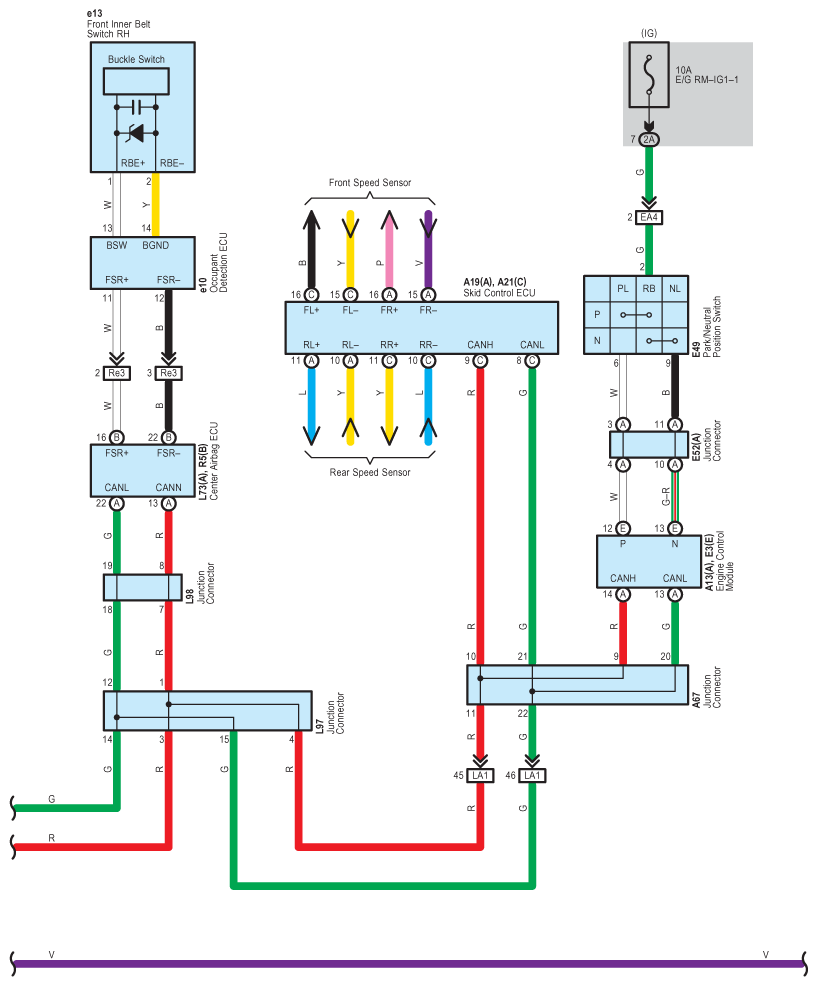

Fig 6: Power Seat (Front Passenger's Seat) - Circuit Diagram (6 Of 7)
G07589650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

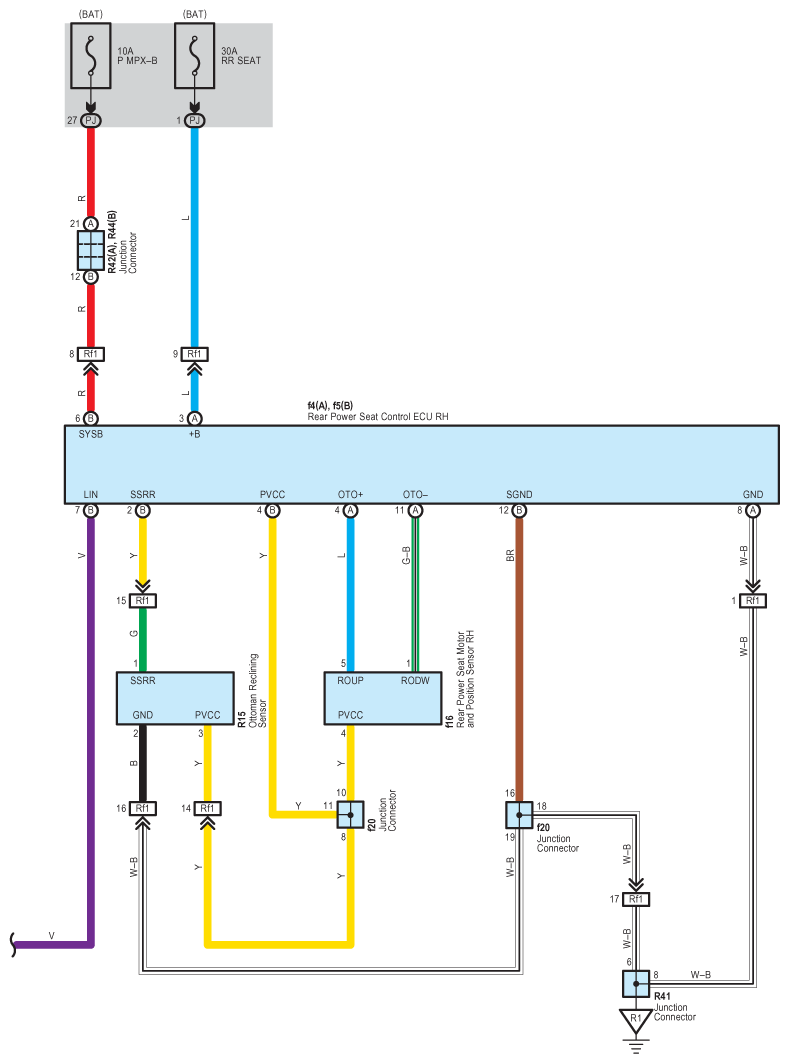

Fig 7: Power Seat (Front Passenger's Seat) - Circuit Diagram (7 Of 7)
G07589651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
