Terminals Of Ecu

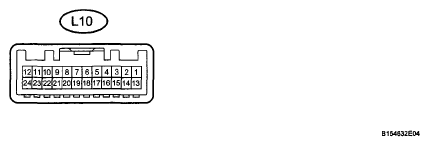

Fig 1: Identifying L10 No. 1 Meter ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance and voltage according to the value(s) in the table below.
   VOLTAGE AND RESISTANCE REFERENCE CHART



   Terminal No. (Symbols)	Wiring Color	Terminal Description	Condition	Specified Condition
   L10-1 (B) - Body ground	G - Body ground	Turn signal L	Engine switch on (IG), turn signal LH indicator light OFF	Below 1 V
   			Engine switch on (IG), turn signal LH indicator light ON	Alternating between below 1 and 11 to 14 V
   L10-2 (PBLT) - Body ground	SB - Body ground	Seat belt condition signal (Passenger side)	Passenger seat belt indicator is OFF	Below 1 V
   			Passenger seat belt indicator blinks	Alternating between below 1 and 11 to 14 V
   L10-4 (A/B) - Body ground	B - Body ground	ODO/TRIP signal	Engine switch on (IG), ODO/TRIP switch ON	Below 1 V
   			Engine switch on (IG), ODO/TRIP switch OFF	4.4 to 5.5 V
   L10-5 (RSET) - Body ground	BR - Body ground	TRIP RESET signal	Engine switch on (IG), TRIP RESET switch ON	Below 1 V
   			Engine switch on (IG), TRIP RESET switch OFF	4.4 to 5.5 V
   L10-7 (RHDW) - Body ground	L - Body ground	Light control rheostat DOWN signal	Engine switch on (IG), Light control rheostat DOWN switch ON	Below 1 V
   			Engine switch on (IG), Light control rheostat DOWN switch OFF	4.4 to 5.5 V
   L10-8 (RHUP) - Body ground	R - Body ground	Light control rheostat UP signal	Engine switch on (IG), Light control rheostat UP switch ON	Below 1 V
   			Engine switch on (IG), Light control rheostat UP switch OFF	4.4 to 5.5 V
   L10-9 (SI) - Body ground	L - Body ground	Speed signal (Input)	Engine switch on (IG) and turn the wheel slowly	Pulse generation (See  b waveform)
   L10-10 (+S) - Body ground	V - Body ground	Speed signal (Output)	Engine switch on (IG) and turn the wheel slowly	Pulse generation (See  b waveform)
   L10-11 (EFI) - Body ground	R - Body ground	MIL	MIL ON	Below 1 to 4.2 V
   			MIL OFF	11 to 14 V
   L10-12 (B) - Body ground	Y - Body ground	Turn signal R	Engine switch on (IG), turn signal RH indicator light OFF	Below 1 V
   			Engine switch on (IG), turn signal RH indicator light ON	Alternating between below 1 and 11 to 14 V
   L10-13 (B) - Body ground	B - Body ground	Battery	Always	11 to 14 V
   L10-14 (IG2) - Body ground	L - Body ground	Engine switch signal	Engine switch off	Below 1 V
   			Engine switch on (IG)	11 to 14 V
   L10-16 (ILL-) -Body ground	LG - Body ground	Illumination signal	Engine switch on (IG)	Pulse generation
   L10-17 (E2) - Body ground	W-B - Body ground	Ground (Power ground)	Always	Below 1 Ω
   L10-18 (ES) - Body ground	BR - Body ground	Ground	Always	Below 1 Ω
   L10-24 (EPB*) - Body ground	L - Body ground	Brake fluid level warning light signal	Engine switch on (IG), BRAKE warning light ON	Below 1 V
   			Engine switch on (IG), BRAKE warning light OFF	Pulse generation
   HINT: *: Stands for electric parking brake

   If the result is not as specified, the meter may have a malfunction.

2. Using an oscilloscope, check the waveform.

   Waveform (Reference):

   WAVEFORM REFERENCE CHART



   Item	Condition
   Terminal No. (Symbols)	L10-10 (+S) - Body ground L10-9 (SI) - Body ground
   Tool setting	5 V/DIV., 20 msec./DIV.
   Vehicle condition	Engine switch on (IG) and turn the wheel slowly ex.) Driving at approx. 20 km/h (12 mph)

   HINT:

   As vehicle speed increases, the cycle of the signal waveform narrows.

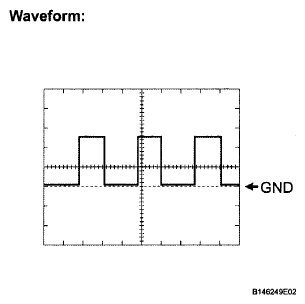

   Fig 2: Signal Waveform Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

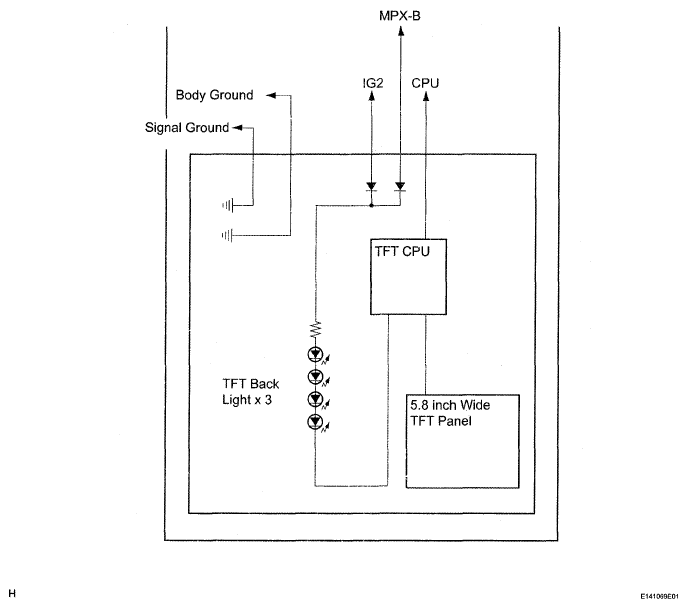

Fig 3: No. 1 Meter ECU Inner Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

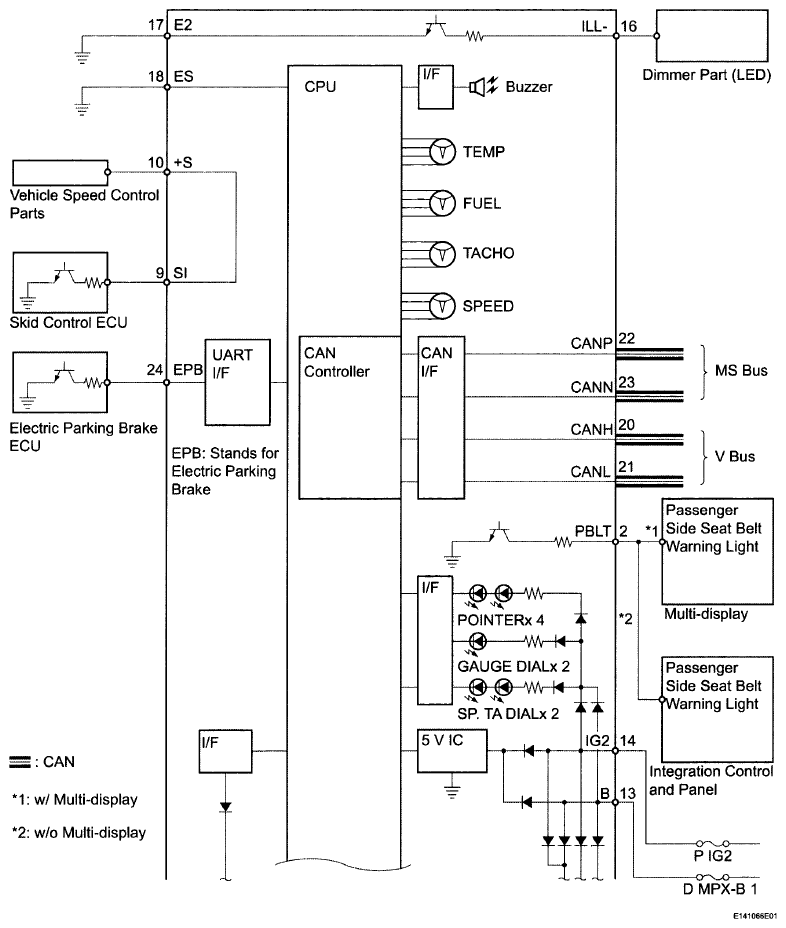

Fig 4: No. 1 Meter ECU Inner Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

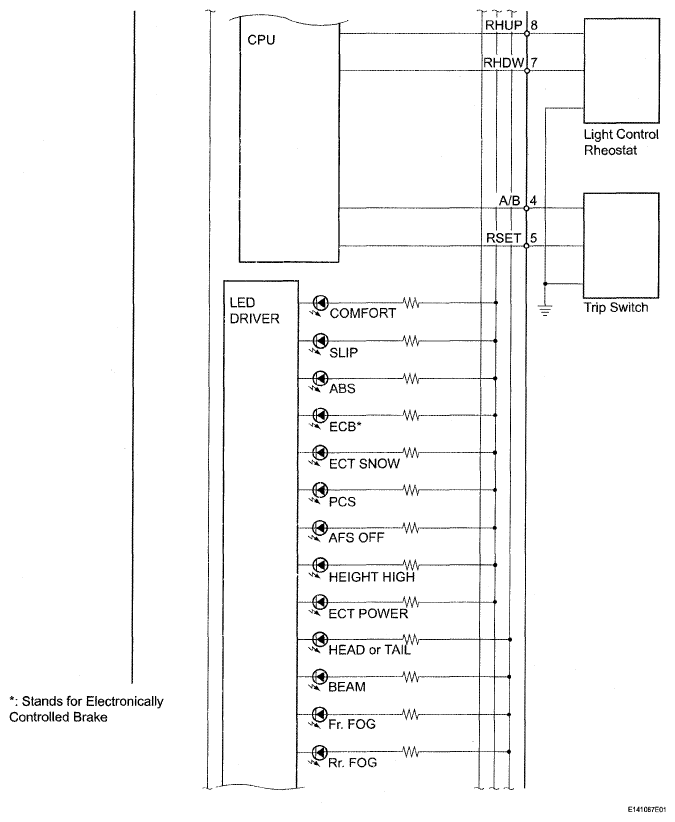

Fig 5: No. 1 Meter ECU Inner Circuit Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

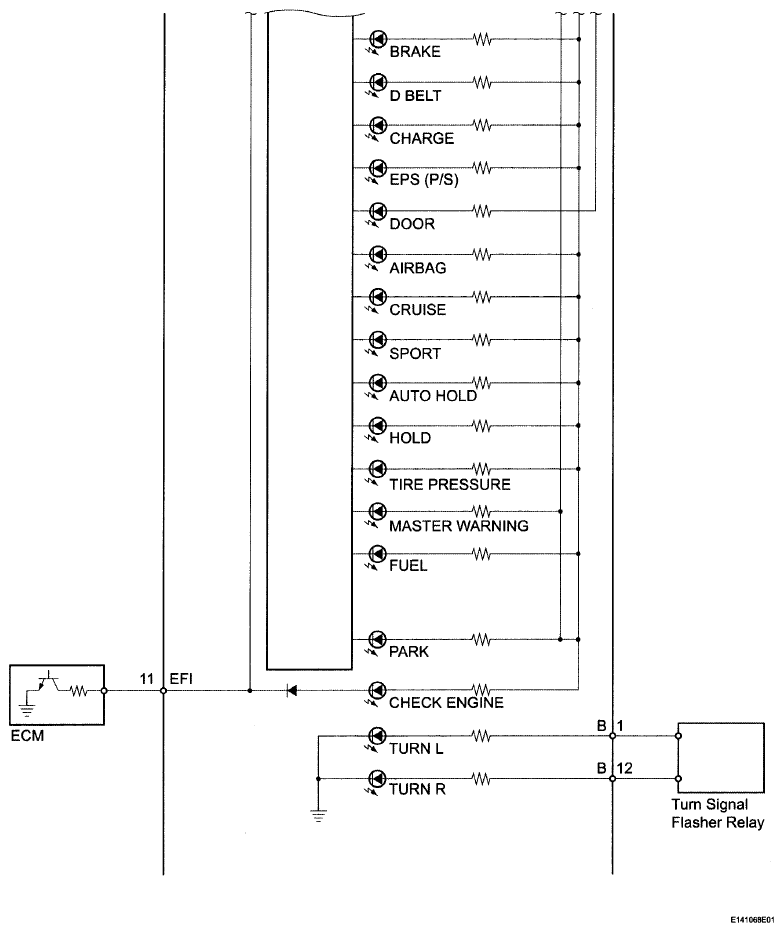

Fig 6: No. 1 Meter ECU Inner Circuit Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This diagram shows all the indicators that are provided, which may differ from the actual vehicle.
