FUEL PUMP (for High Pressure): Components

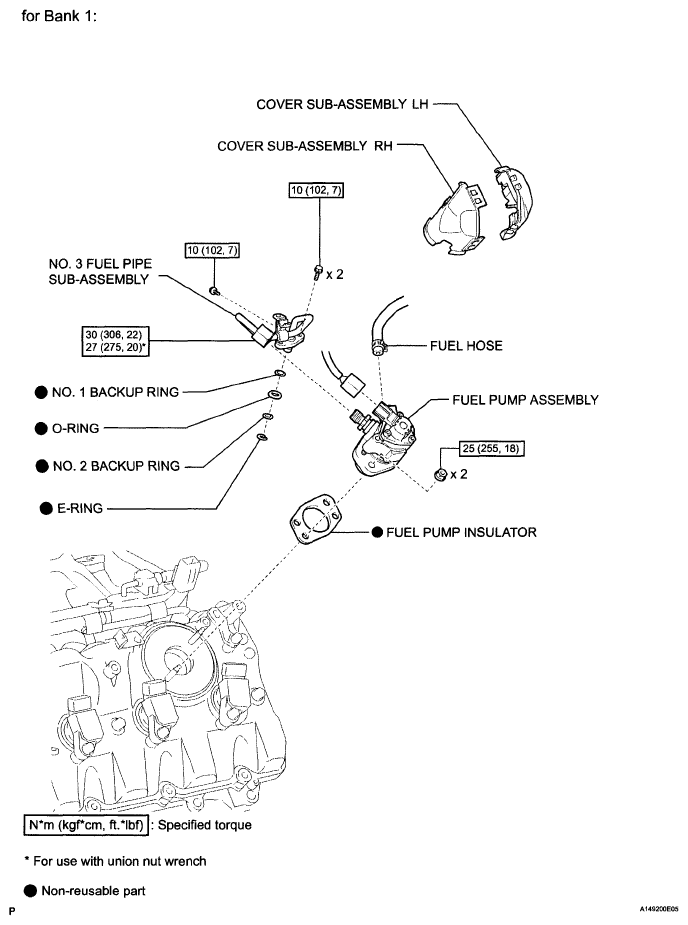

Fig 1: Fuel Pump Replacement Components - High Pressure (1 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

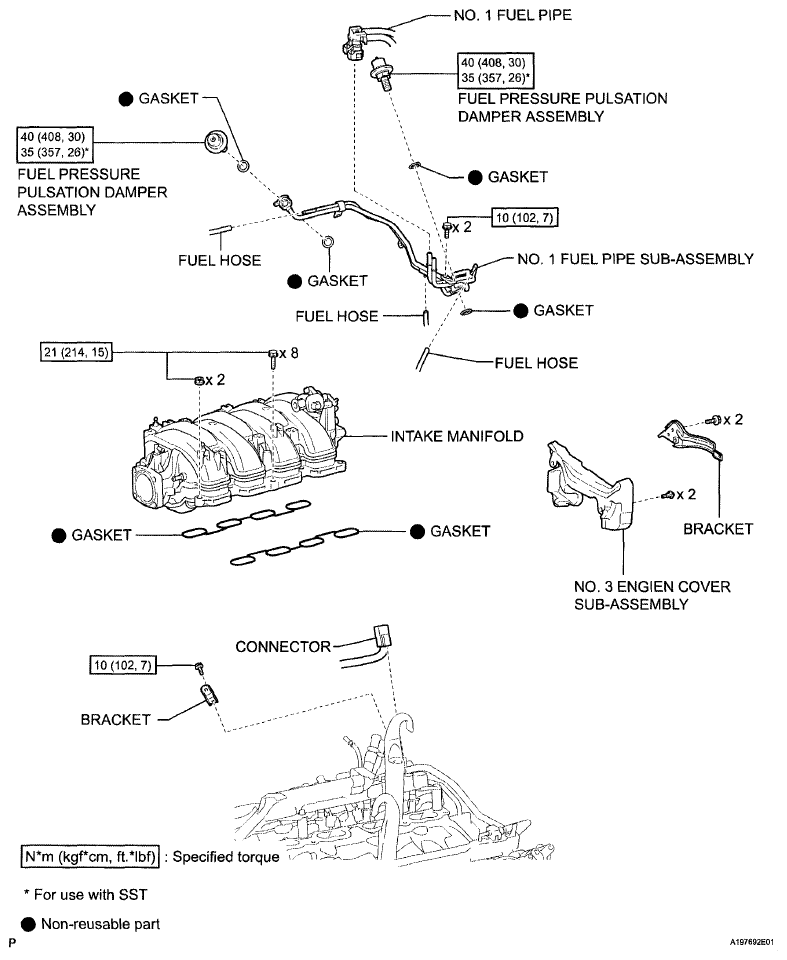

Fig 2: Fuel Pump Replacement Components - High Pressure (2 Of 3) With Torque Specifications

Fig 3: Fuel Pump Replacement Components - High Pressure (3 Of 3) With Torque Specifications
