Fuel Pressure Pulsation Damper: Installation

INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY
1. Temporarily install each dampers together with 2 new gaskets and the pipe to the fuel pump.

  Fig 1: Identifying Dampers, Gaskets And Fuel Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 clamp bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 2: Locating Clamp Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, tighten the 2 dampers.
  SST 09612-24014 (09617-24011)

  Torque: without SST

  40 N*m (408 kgf*cm, 30 ft.*lbf)

  with SST

  35 N*m (357 kgf*cm, 26 ft.*lbf)

  HINT:
  - Use a torque wrench with a fulcrum length of 30 cm (11.8 in.).
  - Make sure SST and torque wrench are connected in a straight line.

    Fig 3: Tightening Dampers
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the 3 fuel hoses.

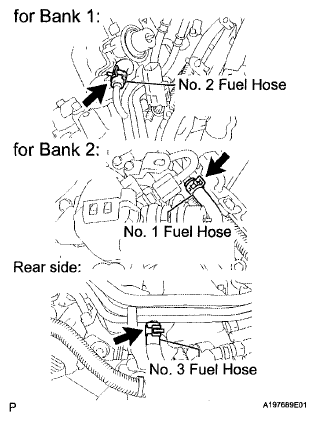

  Fig 4: Locating Fuel Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the connector to the delivery pipe.

  Fig 5: Identifying Delivery Pipe Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 6: Locating Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 ENGINE COVER SUB-ASSEMBLY
1. Install the No. 3 engine cover with the 2 clips.

  Fig 7: Locating No. 3 Engine Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the bracket with the 2 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

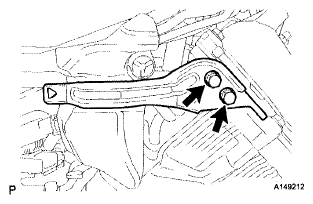

  Fig 8: Locating Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY
1. Push in the tube connector to the pipe until the tube connector makes a "click" sound.
2. Push down on the retainer to lock it in place.
  NOTE:
  - Check that there is no damage or foreign objects on the connected part of the fuel pipe.
  - After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
INSTALL INTAKE MANIFOLD
1. Install the intake manifold (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.

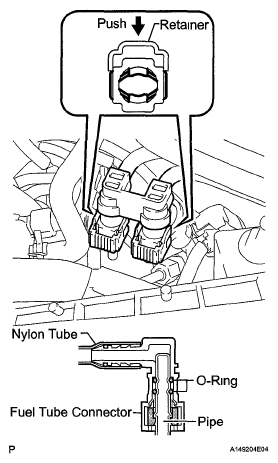

  Fig 9: Pushing In Tube Connector To Pipe Until Tube Connector Makes "Click" Sound
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD ENGINE COOLANT (See REPLACEMENT )
INSPECT FOR COOLANT LEAK (See PROBLEM SYMPTOMS TABLE )
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
