Inspection Procedure

HINT:

Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. CHECK FUSE (ETCS)
   1. Remove the ETCS fuse from the engine room No. 2 junction block.
   2. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   ETCS fuse	Always	Below 1 Ω

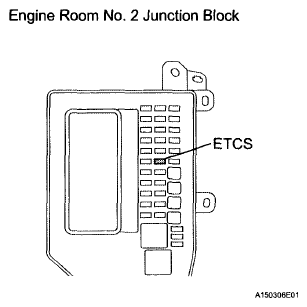

   Fig 1: Identifying ETCS Fuse

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

   OK: Go to Next Step

2. INSPECT ECM (+BM VOLTAGE)
   1. Measure the voltage according to the value (s) in the table below.

   Standard voltage

   STANDARD VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   E1-1 (+BM) - E3-1 (E1)	Always	11 to 14 V

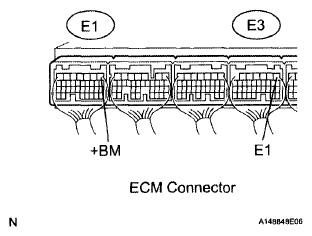

   Fig 2: Identifying ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: CHECK FOR INTERMITTENT PROBLEMS  (See CHECK FOR INTERMITTENT PROBLEMS )

   NG: Go to Next Step

3. CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
   1. Check the harness and connector between the ETCS fuse and ECM.
      1. Remove the ETCS fuse from the engine room No. 2 junction block.
      2. Disconnect the E1 ECM connector.
      3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (Check for open)

      STANDARD RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      ETCS fuse (2) - E1-1 (+BM)	Always	Below 1 Ω

      Standard resistance (Check for short)

      STANDARD RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      ETCS fuse (2) or E1-1 (+BM) - Body ground	Always	10 kΩ or higher

   2. Check the harness and connector between the ETCS fuse and positive battery cable.
      1. Remove the ETCS fuse from the engine room No. 2 junction block.
      2. Disconnect the positive battery cable.
      3. Measure the resistance according to the value (s) in the table below.

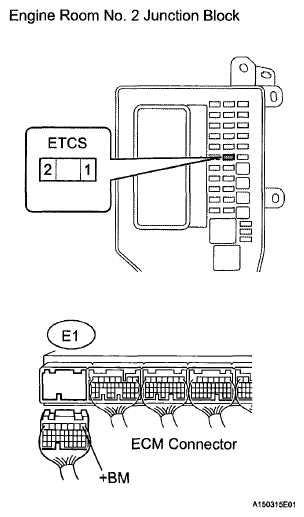

      Fig 3: Identifying ETCS Fuse And E1 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for open)

      STANDARD RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      Positive battery cable - ETCS fuse (1)	Always	Below 1 Ω

      Standard resistance (Check for short)

      STANDARD RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      Positive battery cable or ETCS fuse (1) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM  (See REMOVAL )
