AIR FUEL RATIO SENSOR (for 2WD): Components

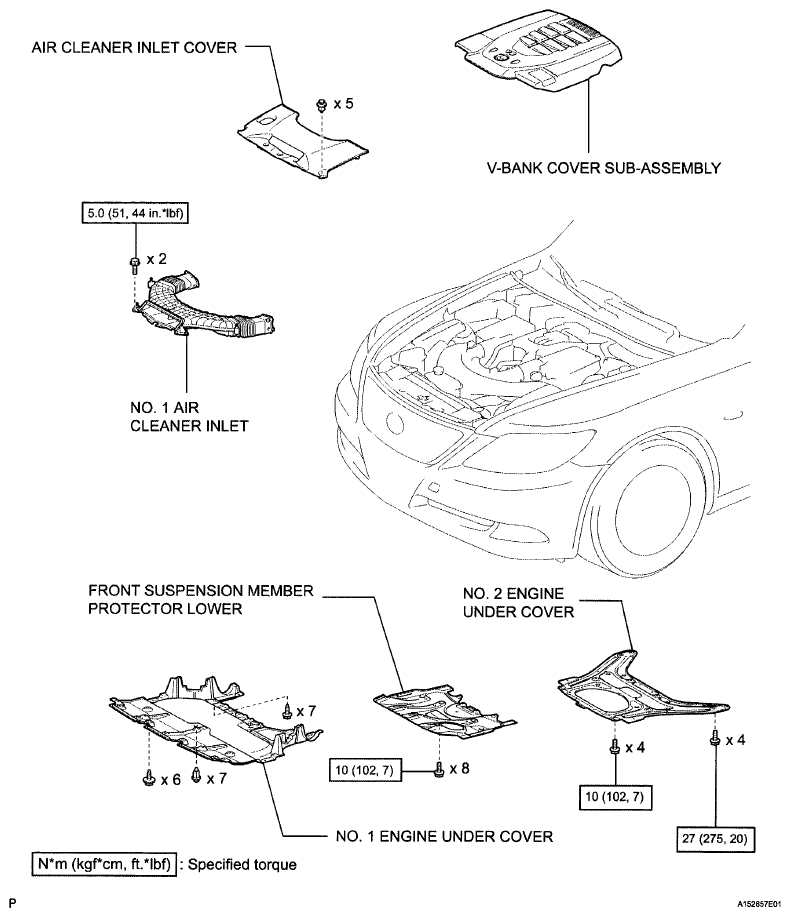

Fig 1: Identifying Air Fuel Ratio Sensor (2WD) Replacement Components With Torque Specifications (1 Of 5)
G06190216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

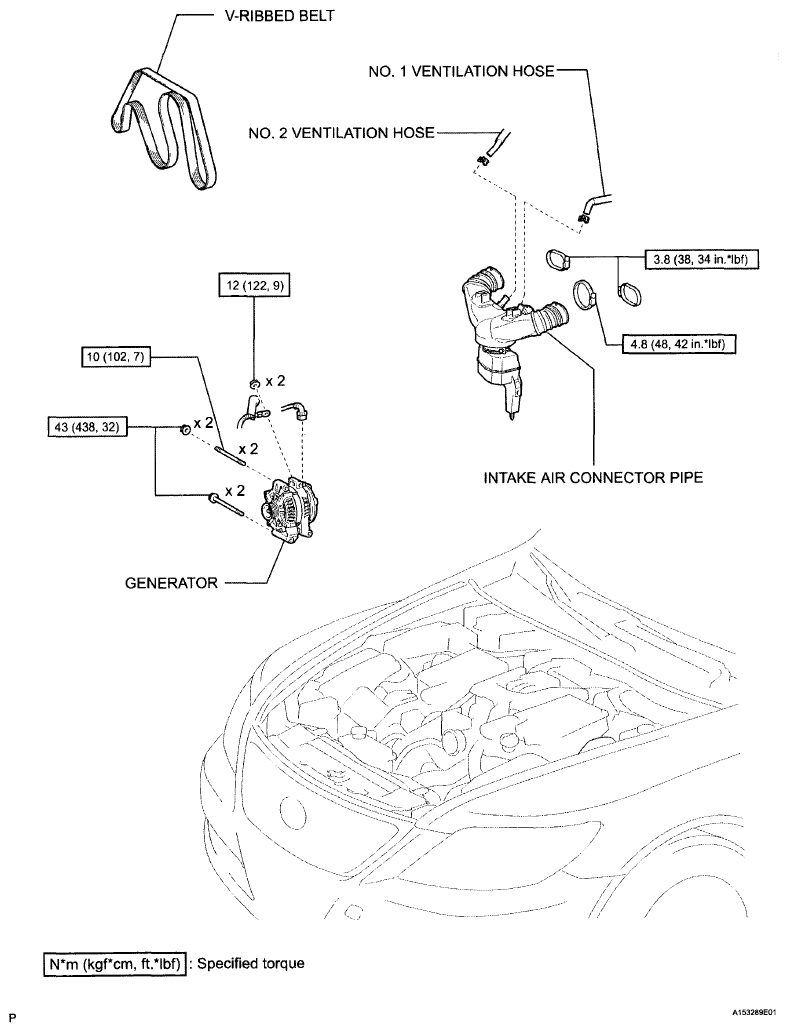

Fig 2: Identifying Air Fuel Ratio Sensor (2WD) Replacement Components With Torque Specifications (2 Of 5)
G06190217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

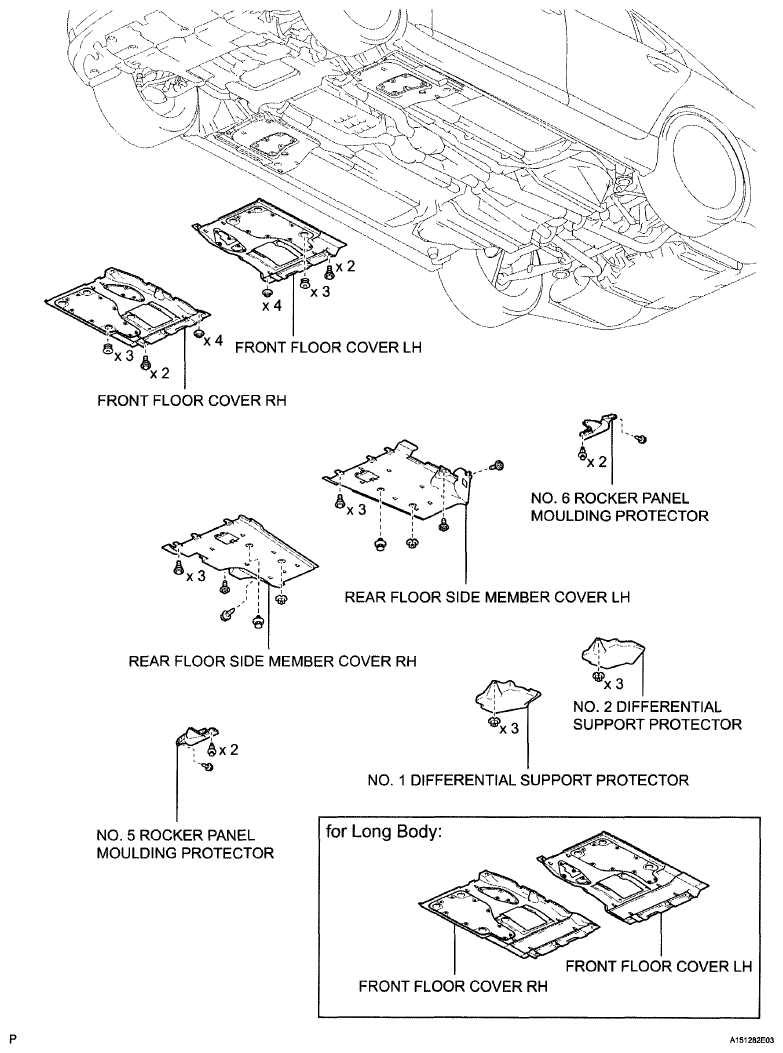

Fig 3: Identifying Air Fuel Ratio Sensor (2WD) Replacement Components (3 Of 5)
G06190218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

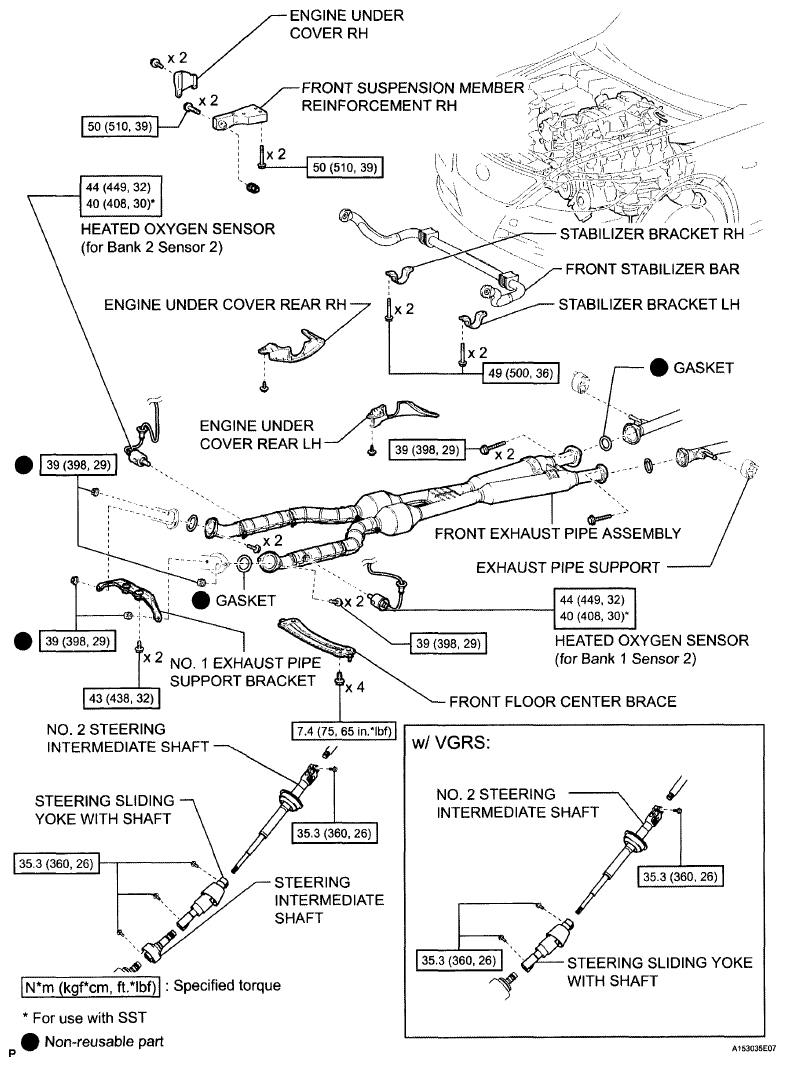

Fig 4: Identifying Air Fuel Ratio Sensor (2WD) Replacement Components With Torque Specifications (4 Of 5)
G06190219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

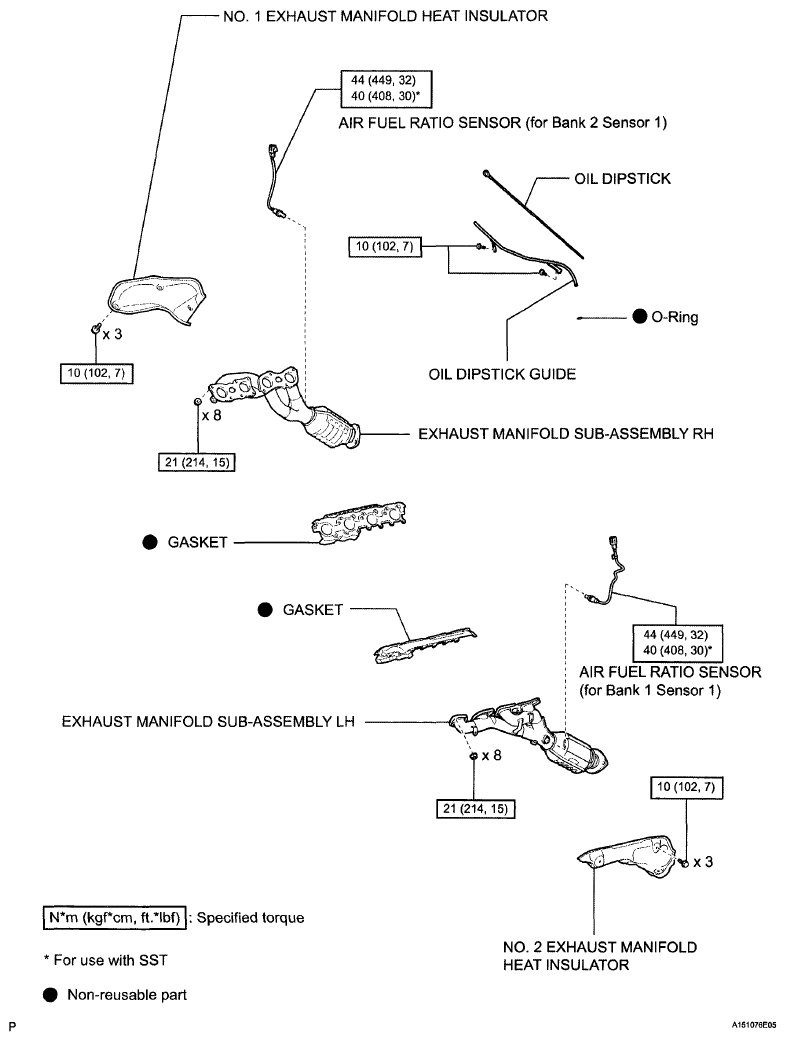

Fig 5: Air Fuel Ratio Sensor (2WD) Replacement Components With Torque Specifications (5 Of 5)
G06190220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
