AIR FUEL RATIO SENSOR (for AWD): Components

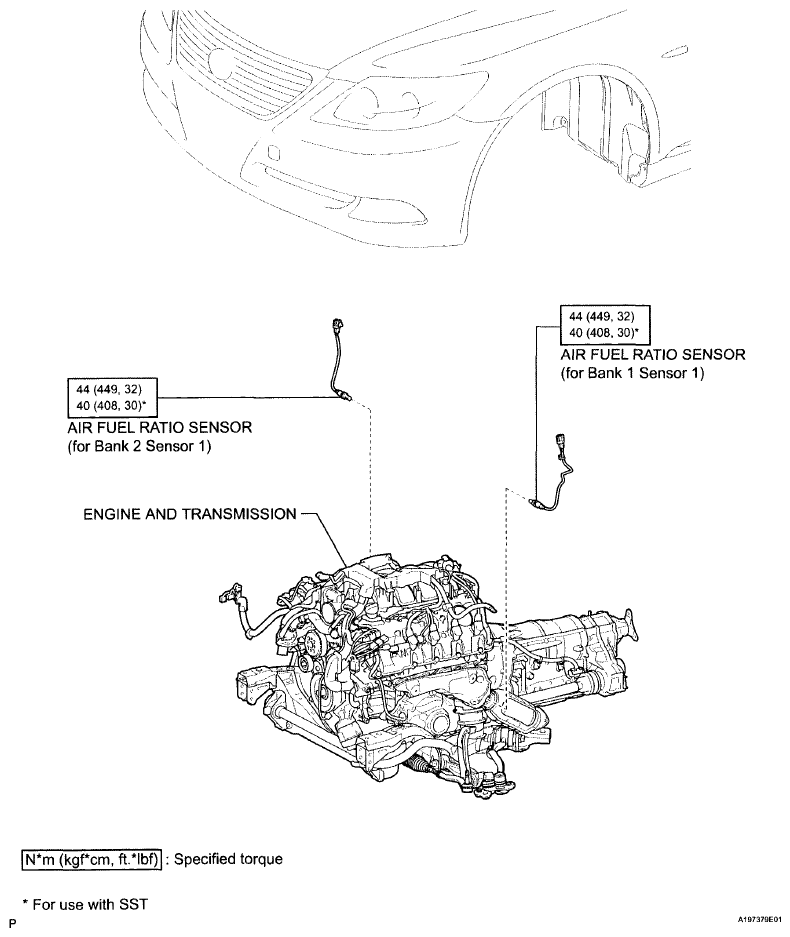

Fig 1: Air Fuel Ratio Sensor (AWD) Replacement Components With Torque Specifications
G06190234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
