AIR FUEL RATIO SENSOR (for AWD): Inspection

  1. INSPECT AIR FUEL RATIO SENSOR
    1. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      1 (HA1A) - 2 (+B)
      1 (HA2A) - 2 (+B)      		 20°C (68°F) 1.8 to 3.4 Ω

      If the result is not as specified, replace the air fuel ratio sensor.

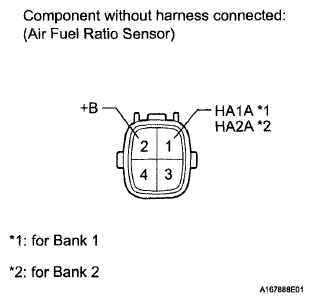

      Fig 1: Identifying Air Fuel Ratio Sensor Connector
      G06190237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
