Camshaft Timing Control Motor: Removal

REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE NO. 1 AIR CLEANER INLET (See REMOVAL )
REMOVE INTAKE AIR CONNECTOR PIPE (See REMOVAL )
REMOVE CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY RH
1. Disconnect the 2 camshaft timing control with EDU motor connectors.
2. Remove the bolt and engine wire bracket.

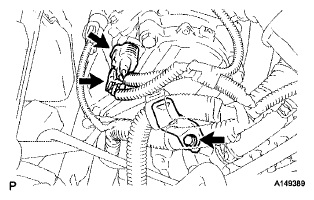

  Fig 1: Locating Engine Wire Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts and camshaft timing control with EDU motor.
  NOTE: Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor (connecting surface with timing chain cover).
4. Remove the O-ring from the timing chain cover.

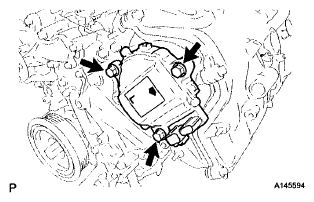

Fig 2: Locating Camshaft Timing Control With EDU Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY LH
1. Disconnect the 2 camshaft timing control with EDU motor connectors and engine wire clamp.

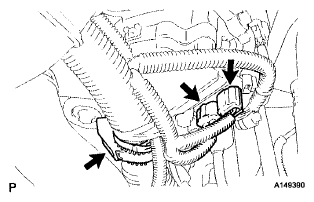

  Fig 3: Locating Camshaft Timing Control With EDU Motor Connectors And Engine Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and camshaft timing control with EDU motor.
  NOTE: Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor (connecting surface with timing chain cover).
3. Remove the O-ring from the timing chain cover.

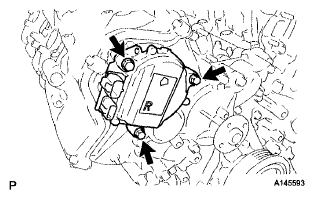

Fig 4: Locating Camshaft Timing Control With EDU Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
