HEATED OXYGEN SENSOR (for AWD): Removal

REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
1. Disconnect the heated oxygen sensor connector.
2. Using SST, remove the heated oxygen sensor from the front exhaust pipe.
  SST 09224-00010

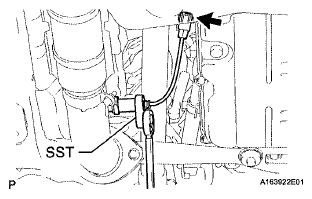

  Fig 1: Removing Heated Oxygen Sensor From Front Exhaust Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR SCUFF PLATE RH (See REMOVAL )
REMOVE COWL SIDE TRIM BOARD RH (See REMOVAL )
REMOVE FRONT FLOOR SILENCER PAD RH
REMOVE REAR NO. 2 AIR DUCT
REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Interior Side:
  Disconnect the heated oxygen sensor connector.

  Fig 2: Locating Heated Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Exterior Side:
  1. Remove the grommet.
  2. Using SST, remove the heated oxygen sensor from the front exhaust pipe.
    SST 09224-00010

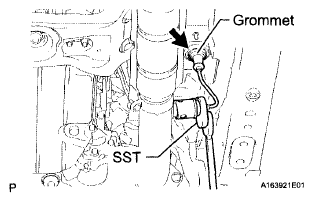

    Fig 3: Removing Heated Oxygen Sensor From Front Exhaust Pipe
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
